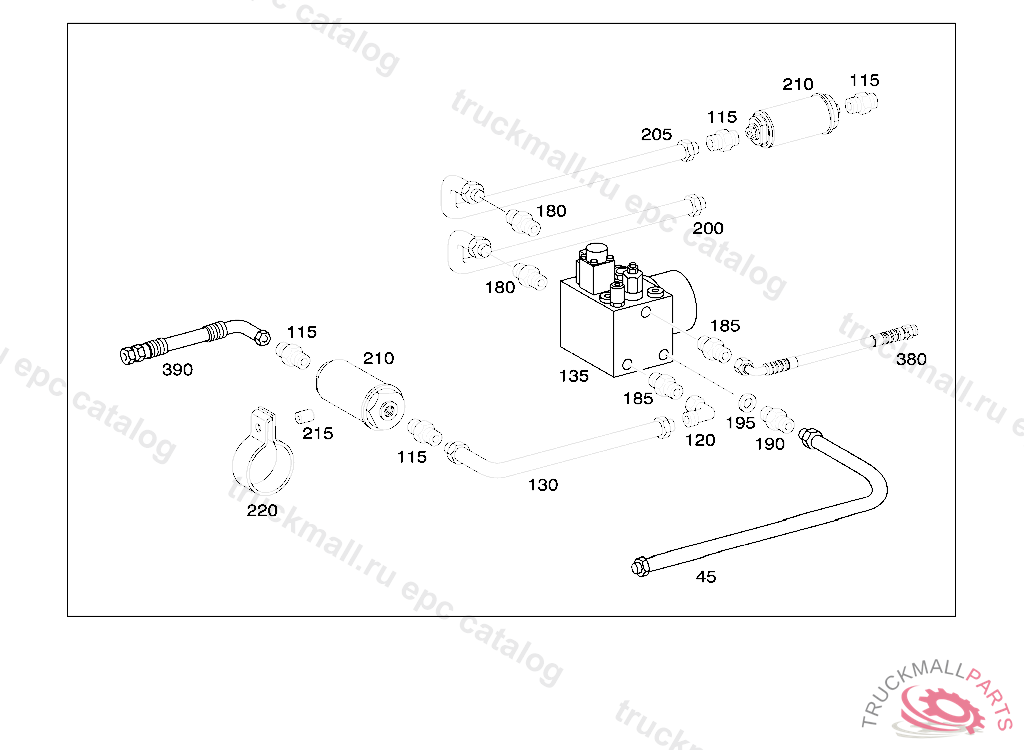

Mercedes A0005516156 - ТРУБКА

2528 L - 2533 L 950.602
46 STEERING - 001 DETACHABLE BODY COMP. & INSTALLATION PARTS, LEADING AND TRAILING AXLES IL.22
  • Поз.
    Артикул
    Описание
  • 45
    TUBE FROM HIGH PRESSURE HOSE TO STEERING, LENGTH AVAILABLE: 3000 MM
  • 45
    LINE , Replaced By: A0005516256
  • 45
    LINE , Replaced By: A0005516256
  • 115
    FITTING (DELIVERY LINE),FROM PUMP TO STEERING
  • 120
    ELBOW FITTING DELIVERY LINE TO PUMP
  • 130
    TUBE FROM HIGH PRESSURE HOSE TO STEERING
  • 130
    LINE , LENGTH AVAILABLE 3000 MM, Replaced By: A0005516156
  • 135
    CONTROL DEVICE ELECTRONIC HYDRAULIC AUXILIARY STEERING (EHZ), SEPARATE PARTS,SEE CHASSIS MODEL DESIGNATION:950.203, SA: 508066/25
  • 180
    FITTING CONTROL DEVICE CONNECTION: P2
  • 185
    FITTING (DELIVERY LINE),FROM PUMP TO STEERING
  • 190
    FITTING CONTROL DEVICE CONNECTION: T2
  • 195
    SEAL RINGTO 006 997 00 72
  • 200
    TUBE FROM HIGH PRESSURE HOSE TO STEERING
  • 200
    LINE , Replaced By: A0005516156
  • 200
    LINE , Replaced By: A0005516156
  • 205
    TUBE FROM HIGH PRESSURE HOSE TO STEERING
  • 205
    LINE , Replaced By: A0005516156
  • 210
    FILTER BETWEEN THE LINES EHZ
  • 215
    BUSHING COMPRESSOR TO SUPPORT,5 484924
  • 215
    BUSHING COOLING WATER PIPE TO TRANSFER CASE
  • 220
    CLAMP LINE MOUNTING
  • 380
    HOSE BETWEEN CONTROL DEVICE AND HYDRAULIC UNIT 3500 MM
  • 390
    HOSE BETWEEN CONTROL DEVICE AND HYDRAULIC UNIT 3450 MM
