Поз.
Артикул
Описание

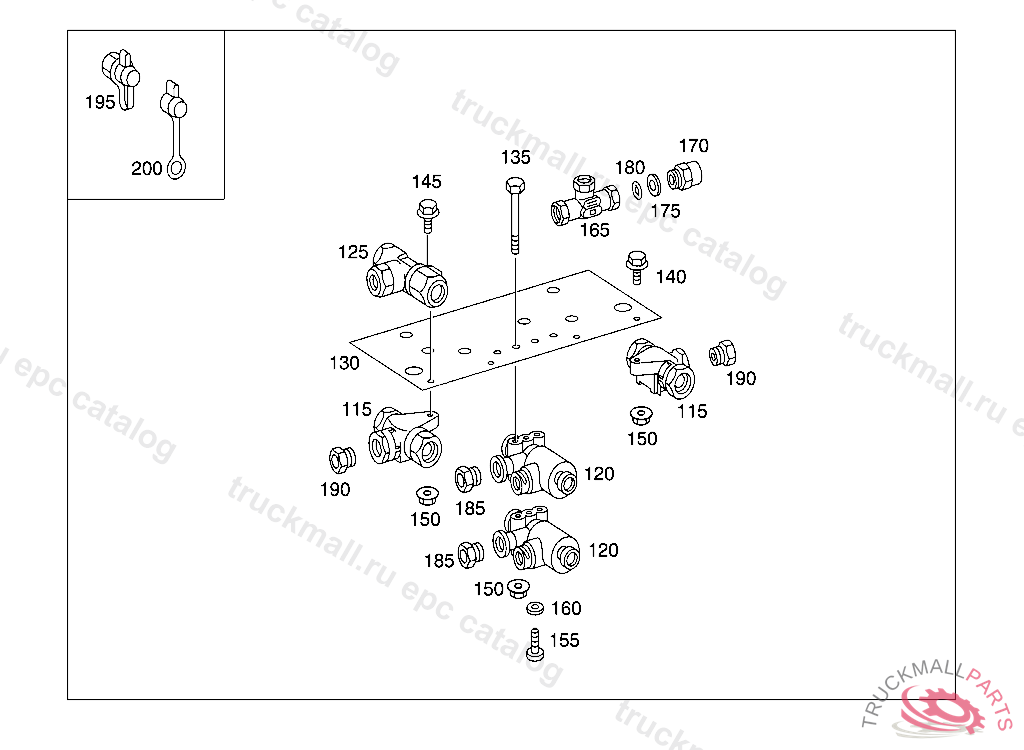

115
VALVE , Replaced By: A0044291544
115
VALVE. SHUTTLE VALVE (SHUTTLE VALVE) VOSS
120
VALVE (3/2-WAY SOLENOID VALVE) ENGINE SHUT-OFF WABCO
125
SHUTTLE VALVE. VALVE (SHUTTLE VALVE)
130
BRACKET (VALVE UNIT)
135
HEXAGON HEAD BOLT. SCREW 3/2-WAY VALVE TO BRACKET M 8X100
135
HEXALOBULAR BOLT SOLENOID VALVE TO BRACKET M8X100
135
HEXALOBULAR BOLT UNDERRUN PROTECTION TO CROSS MEMBER M8X90
140
SCREW SHIFT LEVER TO BRACKET M8X30
145
SCREW. HEXAGON HEAD BOLT , Replaced By: N910143008005
145
HEXALOBULAR BOLT. SCREW MANUAL PUMP BRACKET TO FENDER BRACKET
150
NUT HORN TO BRACKET M8
155
SCREW TO PLUG THE FREE CONNECTIONS
160
SEAL RING TO LOCK SOLENOID VALVE 7X12MM
165
VALVE (SHUTTLE VALVE)
170
FITTING AIR RESERVOIR,CONNECTION: "15",5 433280
175
THRUST RING CHECK VALVE TO AIR RESERVOIR
180
O-RING CHECK VALVE TO AIR RESERVOIR
185
SCREW. UNION SCREW , Replaced By: A0009973734
185
SCREW. UNION SCREW LINE CONNECTION
190
SCREW. UNION SCREW LINE CONNECTION
195
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
200
PLUG
