Поз.
Артикул
Описание

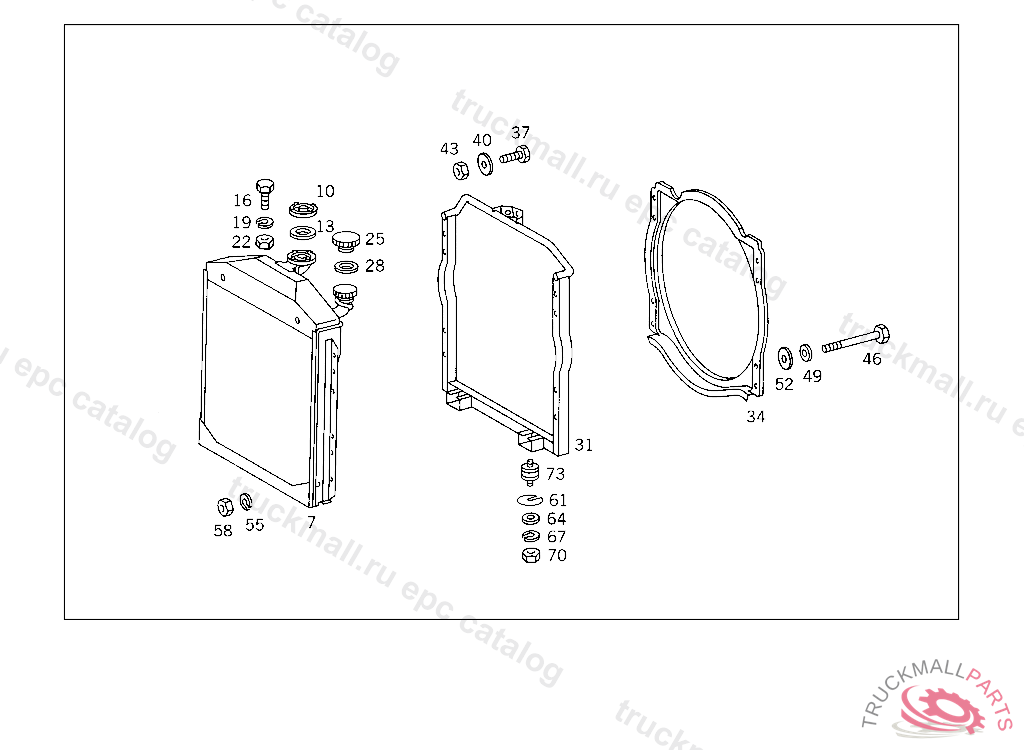

7
RADIATOR , Replaced By: A3465005803, +001A3465015982
10
RADIATOR CAPTO 346 500 50 03,4 2993464 787608
10
VALVE WATER DRAIN
13
GASKET
16
SCREW IN CASE OF SUBSEQUENT INSTALLATION
19
LOCK WASHER
22
NUT TACHOGRAPH TO BRACKET
25
RADIATOR CAPTO 346 500 54 03,4 299345
25
RADIATOR CAP
28
GASKET , OM 326,L FROM CHASSIS 004266,LP FROM CHASSIS 001438
28
GASKET , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0005010380
31
SUPPORT , 007551
34
AIR BAFFLE
37
SCREW
40
WASHER REFLECTOR,4 300928
43
NUT TACHOGRAPH TO BRACKET
46
SCREW PLUG SOCKET TO BRACKET BEHIND CAB
49
WASHER EXHAUST MUFFLER TO STRAP
49
WASHER , Replaced By: N000125008443
52
WASHER
55
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
58
NUT , Replaced By: N304032008006
58
NUT
61
SHIM , L FROM CHASSIS 000151 ALSO INSTALLED ON 000087-000092,000098-000107,000143,LP FROM CHASSIS 000067
64
WASHER RADIATOR TO RUBBER MOUNTING
67
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
70
NUT BRACKET TO SUPPORT AND TO END PIECE
73
RUBBER MOUNTING
999
SUPPORT , Replaced By: A3355001127
