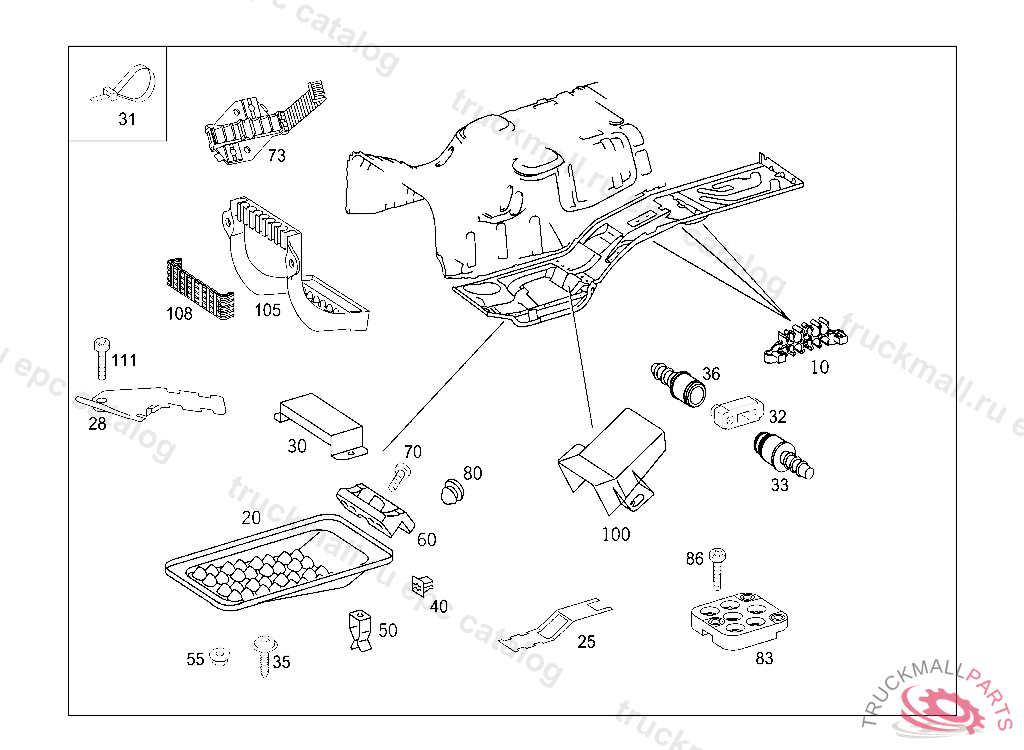

Поз.
Артикул
Описание
10
BRACKET AT CAB FLOOR
20
BRACKET AT CAB FLOOR
25
28
BRACKET BRACKET TO WINDOW SILL SUPPORT
30
BRACKET ELECTRIC CABLE TO CAB FLOOR, Replaced By: A9415401240
30
BRACKET ELECTRIC CABLE TO CAB FLOOR
31
LOOM TIE ELECTRIC CABLE MOUNTING
31
LOOM TIE , Replaced By: A3459977390
31
CABLE TIE. LOOM TIE , Replaced By: A0019978490
31
LOOM TIE AIR INTAKE HOSE TO CLAMP
31
LOOM TIE WIRING HARNESS FOR AIR CONDITIONING SYSTEM 205 MM
32
CLAMPING PIECE DRIVER'S AIR-CUSHIONED SEAT COMPRESSED-AIR LINE
33
CONNECTOR COMPRESSED-AIR-LINE PLUG-CONNECTION 7.1 MM / 4 MM
35
SHEET METAL SCREW COVERING TO CAB 4.2X19
36
CONNECTOR COMPRESSED-AIR-LINE PLUG-CONNECTION 10.9MM / 4MM
40
TREENAIL PLUG HOUSING TO FIRE WALL
40
TREENAIL FUSE BOX
50
TREENAIL BRACKET TO FIRE WALL
50
TREENAIL BRACKET TO FIRE WALL, Replaced By: A6399980185
55
NUT COVERING TO CAB FIRE WALL
55
NUT BRACKET TO PIN
60
PLATE (CONNECTION PLATE) COMPRESSED-AIR-LINE PLUG-CONNECTION
70
HEXALOBULAR BOLT WIRE CABLE TO BRACKET
73
BRACKET COMPRESSED-AIR LINE ON FLOOR OF CAB
80
RUBBER BUFFER TO PLUG THE FREE CONNECTIONS
83
PLATE FROM CONNECTION PLATE TO PARKING BRAKE VALVE
86
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
100
BRACKET ON CAB FLOOR
100
BRACKET ON CAB FLOOR
105
BRACKET IN CAB
108
BRACKET AT BRACKET
111
SCREW , Replaced By: N914146006102
