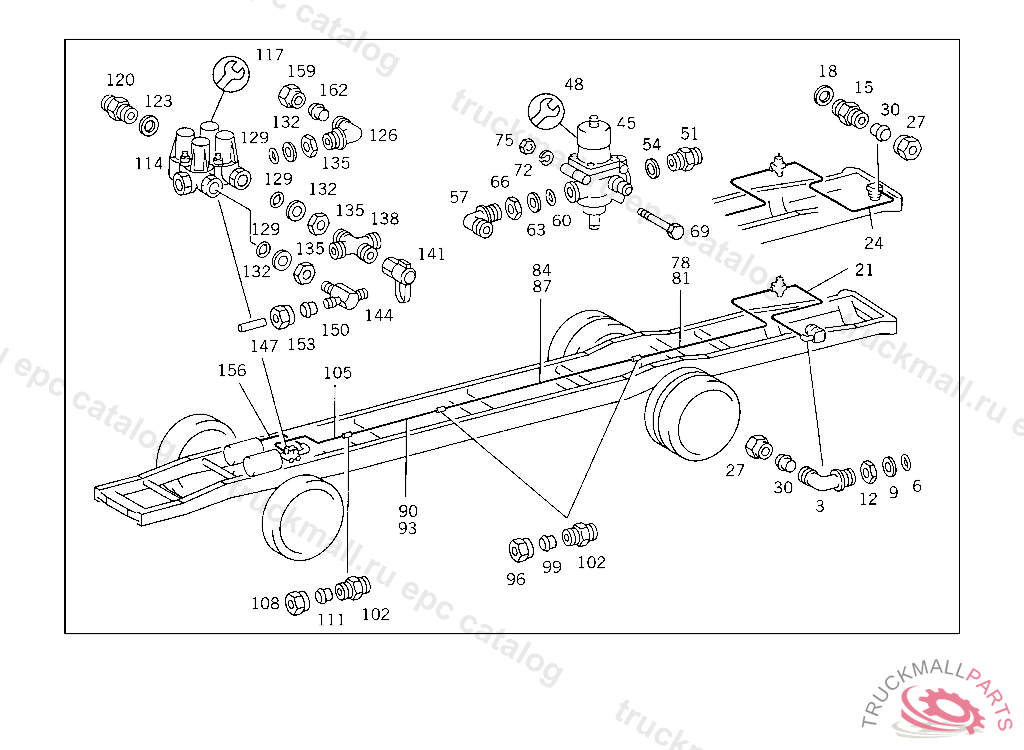

Поз.
Артикул
Описание
3
ELBOW FITTING PRESSURE REGULATOR,CONNECTION "1",A 069205
3
ELBOW FITTING AT PRESSURE REGULATOR
6
O-RING CHECK VALVE TO AIR RESERVOIR
9
THRUST RING CHECK VALVE TO AIR RESERVOIR
9
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
12
NUT AIR RESERVOIR,CONNECTIONS: "14,21,35"
21
LINE FROM AIR COMPRESSOR TO PRESSURE REGULATOR 15X1.5 MM
27
UNION NUT LINE CONNECTION
30
GLAND LINE CONNECTION
45
PRESSURE REGULATORKNORR,5 7999995 800000 - 5 8127305 900000 - 5 936365
45
PRESSURE REGULATOR , Replaced By: A0024314906
45
PRESSURE REGULATOR , Replaced By: A0024314906
45
PRESSURE REGULATOR , Replaced By: A0024318306
48
REPAIR KITTO 002 431 83 06, KNORR 90309
48
REPAIR KITTO 001 431 12 06, KNORR 3200
48
REPAIR KIT , Replaced By: A0004301107
48
REPAIR KITTO 001 431 98 06
48
REPAIR KITTO 002 431 83 06
51
CONNECTOR AT AIR COMPRESSOR
54
SEAL RING LINE CONNECTION
57
ELBOW FITTING AT PRESSURE REGULATOR
57
ELBOW FITTING PRESSURE REGULATOR,CONNECTION "1",A 069205
60
O-RING CHECK VALVE TO AIR RESERVOIR
63
THRUST RING CHECK VALVE TO AIR RESERVOIR
63
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
66
NUT AIR RESERVOIR,CONNECTIONS: "14,21,35"
69
SCREW PRESSURE REGULATOR TO BRACKET M 8X75
72
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
75
NUT TAIL LAMP TO BRACKET
78
LINE FROM PRESSURE REGULATOR TO DOUBLE FITTING I 15X1.5 MM
87
LINE FROM DOUBLE FITTING I TO DOUBLE FITTING II 15X1.5 MM
90
LINE FROM DOUBLE FITTING I TO DOUBLE FITTING II 15X1.5 MM
96
UNION NUT LINE CONNECTION
99
GLAND LINE CONNECTION
102
CONNECTION FITTING HIGH PRESSURE LINE TO STEERING
105
LINE FROM FITTING TO FOUR-CIRCUIT PROTECTIVE VALVE,CONNECTION: 15X1.5 MM,"1"
108
UNION NUT LINE CONNECTION
111
GLAND LINE CONNECTION
114
VALVE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. K 087820, Replaced By: A0034315006
114
VALVE , Replaced By: A3454317406
114
VALVE , Replaced By: A0034315006
117
REPAIR KIT FOUR-CIRCUIT PROTECTIVE VALVE
117
REPAIR KITTO 001 431 87 06,KNORR
117
REPAIR KITTO 002 431 01 06
117
REPAIR KITTO 002 431 01 06
120
CONNECTOR AT AIR COMPRESSOR
123
SEAL RING LINE CONNECTION
126
FITTING ,4 667210
126
ELBOW FITTING AT LEFT AND RIGHT DIAPHRAGM CYLINDERS,A 069205
126
ELBOW FITTING , Replaced By: A3849907071
129
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
132
THRUST RING LOCKING VALVE
135
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
138
CROSS FITTING FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "23"
141
TEST CONNECTION
141
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
144
T-FITTING FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "24"
147
PIN AT PRESSURE REGULATOR
150
GLAND , Replaced By: A0019901667
153
UNION NUT
156
LINE FROM FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "21",TO AIR RESERVOIR I 12X1 MM
159
UNION NUT LINE CONNECTION, Replaced By: N000000006239
162
GLAND , Replaced By: A0019901967
999
PISTONTO 345 431 70 05
999
BRACKET LEFT,DIAPHRAGM CYLINDER
999
BRACKET RIGHT,DIAPHRAGM CYLINDER
999
T-FITTING DIAPHRAGM CYLINDER,CONNECTION "1"
999
LINE FROM PRESSURE SWITCH TO SPRING LOAD ACCUMULATOR CYLINDER
999
GROMMET AIR SPRING VALVE
