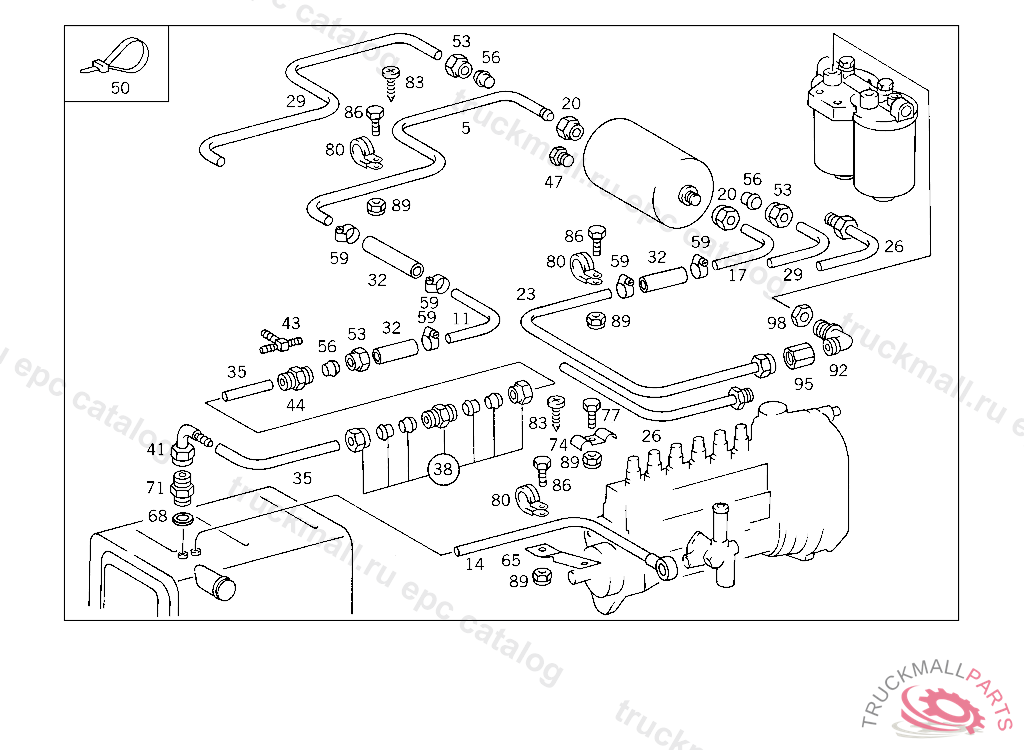

Поз.
Артикул
Описание
5
LINE WITH SEAL CONE 3000 MM, 740810
5
LINE WITH SEAL CONE 3000 MM, 740810
5
LINE WITH SEAL CONE 3000 MM, 740810
5
LINE WITH SEAL CONE 3000 MM, 740810
5
LINE WITH SEAL CONE 3000 MM, 740810
5
LINE WITH SEAL CONE 3000 MM, 740810
5
LINE WITH SEAL CONE 3000 MM, 740810
5
LINE WITH SEAL CONE 3000 MM, 740810
5
LINE , Replaced By: A3404702165, +001N915001008002
11
LINE FUEL HOSE
11
LINE , Replaced By: A3404702665, +001A3404701265, +001A3054760126, +002N915001008002, +002N916017011000
14
LINE FUEL COMPENSATING
14
LINE FUEL COMPENSATING
17
LINE FUEL FILTER,063636
17
LINE FUEL FILTER,063636
17
LINE FUEL FILTER,063636
17
LINE FUEL FILTER,063636
17
LINE FUEL FILTER,063636
17
LINE FUEL FILTER,063636
20
UNION NUT FUEL HOSE
23
LINE FROM ENGINE TO RUBBER HOSE, UP TO IDENT NO. 034050, EXCEPT FOR 033449,033648,033674,033682,033981,033998
26
LINE FROM TANK TO SCREW CONNECTION, 741958
26
LINE FROM TANK TO SCREW CONNECTION, 741958
26
LINE FROM TANK TO SCREW CONNECTION, 741958
26
LINE FROM HOSE TO WEBASTO HEATER INTERMEDIATE TANK, UP TO IDENT NO. 034050, EXCEPT FOR 033449,033648,033674,033682,033981,033998
29
LINE FEED & RETURN 10X1 MM, LENGTH AVAILABLE: 3000 MM
29
LINE FEED & RETURN 10X1 MM, LENGTH AVAILABLE: 3000 MM
29
LINE FEED AND RETURN LINES TO FUEL TANK 10X0.7 MM, LENGTH AVAILABLE 25.000 MM
32
HOSETO 346 500 60 03, ORDER BY THE METER
32
HOSE LEAK LINE
32
GUMMISCHLAUCH 9. HOSE AT SENDER UNIT
32
RUBBER HOSE,. HOSE AT SENDER UNIT
35
HOSETO 346 500 60 03, ORDER BY THE METER
38
FITTING (PARTS KIT),LINE RUPTURE
38
FITTING (PARTS KIT),LINE RUPTURE
41
ELBOW FITTING RETURN
41
ELBOW FITTING RETURN
43
T-FITTING ,A 069748
44
FITTING LINE CONNECTION TO FIRE WALL,5 726664
44
FITTING FEED LINE AND RETURN LINE
44
FITTING FEED LINE AND RETURN LINE
47
SCREW PLUG FUEL TANK
47
SCREW PLUG , Replaced By: N007604014110
50
LOOM TIE LINE MOUNTING 280 MM
53
NUT. UNION NUT LINE CONNECTION
56
CUTTING RING. GLAND LINE CONNECTION
59
HOSE CLAMP LINE MOUNTING
59
CLAMP , Replaced By: A0059970190
65
BRACKET LINE TO REAR TRANSMISSION CASE
68
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
71
DOUBLE FITTING AT TANK
74
CLAMP
77
SCREW COVER PLATE TO BRACKET
80
CLAMP DELIVERY AND SUCTION LINES TO FRAME
80
CLAMP DELIVERY AND SUCTION LINES TO FRAME, Replaced By: N916016022203
80
CLAMP CABLE HARNESS MOUNTING
80
CLAMP CABLE HARNESS MOUNTING
80
CLAMP CABLE HARNESS MOUNTING
80
CLAMP , Replaced By: N000000001045
80
CLAMP , Replaced By: N916016010211
83
SHEET METAL SCREW BRACKET TO FLOOR PLATE
83
SHEET METAL SCREW BRACKET TO FLOOR PLATE, Replaced By: N000000000460
86
SCREW CAB FLOOR COVERING M 6X25
86
SCREW LINE TO SUBSTRUCTURE
86
SCREW PUMP TO BRACKET
86
SCREW , Replaced By: N304017006016
86
SCREW CAB FLOOR COVERING M 6X25
89
NUT COMPRESSED AIR LINE TO LEFT SIDE MEMBER
89
NUT COMPRESSED AIR LINE TO LEFT SIDE MEMBER
89
NUT , Replaced By: N910113006001
92
ELBOW FITTING ANTI-FREEZE DEVICE,CONNECTION: "10", BUTT CONNECTION
95
ADAPTER FITTING FLUID RESERVOIR TO BRACKET
98
NUT CHECK VALVE TO AIR RESERVOIR
999
BASE , Replaced By: A3142030084
