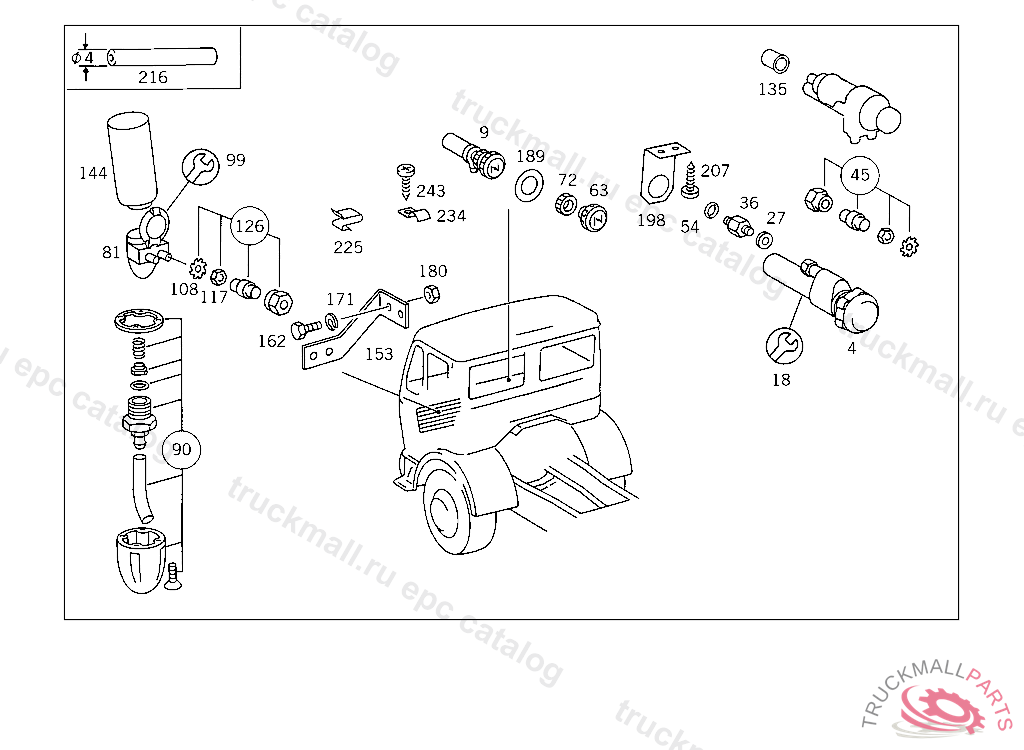

Поз.
Артикул
Описание
4
PUMP , Replaced By: A0005500883
4
PUMP , Replaced By: A0005501083
4
PUMP , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 162440, Replaced By: A0005502383
9
PUMP PRIMING FUEL
18
VALVE REPAIR KIT TO 000 550 00 83
27
SEAL RINGTO 000 550 00 83
36
FITTING , UP TO CHASSIS 620000 EXCEPT FOR 500001-599999
45
NUT REPAIR KIT
54
SEAL RINGTO 000 550 00 83
63
HANDLE
72
NUT
81
CAPSULE BORER , Replaced By: A0005501104, +001A0005550010
81
CAPSULE BORER , Replaced By: A0005501104, +001A0005550010
81
PRIMER CAPSULE , Replaced By: A0005501404
81
PRIMER CAPSULE PRIMING FUEL
90
OIL TANK , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0005500280
90
OIL TANK REPAIR KIT TO 000 550 06 04
99
SPRING , Replaced By: A0005500955
99
VALVE REPAIR KIT TO 000 550 00 83
108
SERRATED WASHER
117
NUT
126
NUT REPAIR KIT
135
CAPSULE , ON SPECIAL REQUEST
144
FILLING CYLINDER PRIMING FUEL
144
FILLING CYLINDER PRIMING FUEL
153
BRACKET RESERVOIR
153
BRACKET RESERVOIR
162
SCREW , Replaced By: N304017006018
162
SCREW COVER PLATE TO COVER PLATE M 6 X 12
171
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
180
NUT BALL PIVOT TO LEVER
189
WASHER , ON SPECIAL REQUEST
189
WASHER STARTER PILOT PUMP
198
BRACKET STARTER PILOT PUMP TO WINDOW SILL
207
SHEET METAL SCREW BRACKET TO WINDOW LEVEL GIRDER
216
HOSE FUEL LINE, ORDER BY THE METER
216
HOSE FUEL LINE, ORDER BY THE METER
216
HOSE FUEL LINE, ORDER BY THE METER
225
CLIP FUEL LINE TO CAB CONSOLE
234
CLAMP HOSE TO CAB SUPPORT
243
SHEET METAL SCREW BRACKET TO WINDOW LEVEL GIRDER
999
CAP STARTER PILOT, 808268
999
BRACKET PRIMER CAPSULE,5 340379
999
WASHER , Replaced By: N009021006208
999
WASHER COMPRESSED AIR LINE TO BRACKET
999
NUT PUMP TO BRACKET
999
NUT , Replaced By: N913004006001
