Поз.
Артикул
Описание

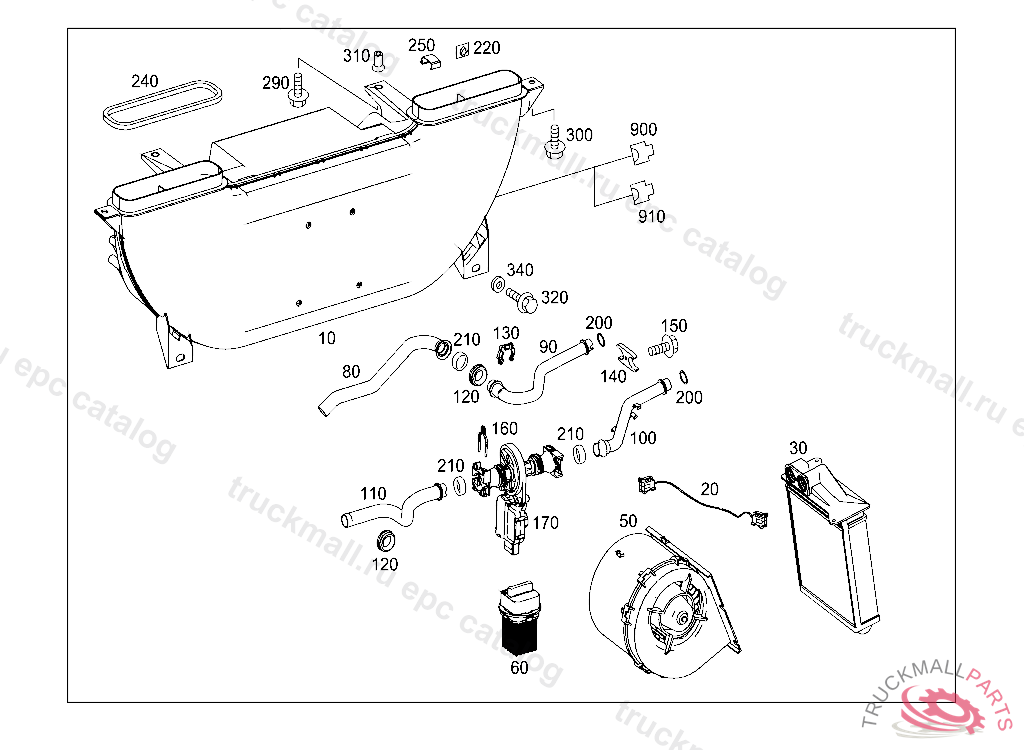

10
HEATER UNIT ADDITIONAL HEATER
20
ELECT. LINE
30
HEAT EXCHANGER
50
BLOWER
60
BLOWER REGULATOR BLOWER
80
PIPELINE FEED
90
PIPELINE PARTITION POINT TO HEATER
100
PIPELINE RETURN FROM HEAT EXCHANGER
110
PIPELINE RETURN FROM VALVE
120
GROMMET
130
CLIP PIPE TO HEAT EXCHANGER
140
BRACKET PIPE LINES
150
BOLT AND WASHER ASSY. BRACKET MOUNTING
160
SPRING HEAT EXCHANGER PIPES
170
VALVE BODY REGULATING VALVE
200
SEAL RING HEATER
210
SEAL RING
220
BRACKET AIR CONDITIONER CABLE HARNESS
240
SEAL
250
SPRING
290
SCREW BRACKET TO SIDE MEMBER M8X20
300
TAPPING SCREW BRACKET MOUNTING 6.3X13
310
RIVETED NUT. RIVET NUT BRACKET TO ORNAMENTAL GRILLE M6X14.5
320
HEXALOBULAR BOLT BASIC MODULE AT SUPPORT M6X16,01.08.08
340
WASHER LINE MOUNTING
900
PIN BUSHING HOUSING 6-POLE
910
PIN BUSHING HOUSING ENGINE COMPARTMENT/ENGINE CONNECTOR 2-PIN SLK2.8,X26/31
