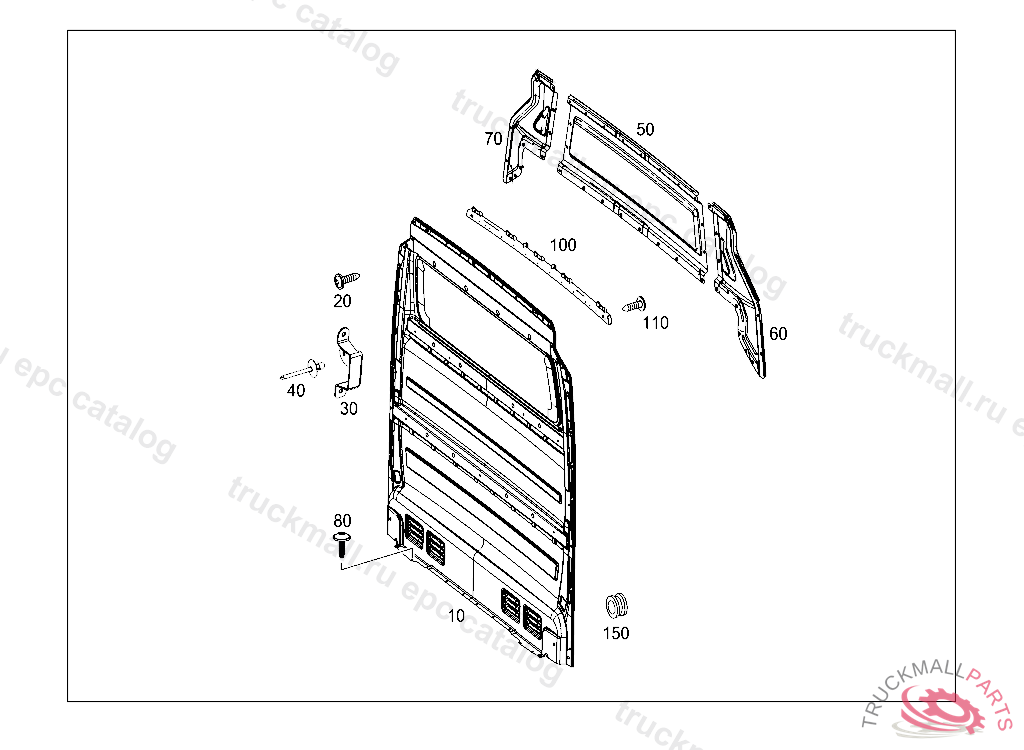

510 CDI - 900.655 - 71 PARTITION WALL/LOAD PROTECTION GRILL
Поз.
Артикул
Описание
10
PARTITION PANEL
20
BOLT FASTENING FOR LINING 5X15,5
30
BRACKET RIGHT
30
BRACKET LEFT
40
RIVET BINDING RAIL TO PLATFORM SIDE PANEL 4.8 X 9.5 MM
50
PARTITION PANEL TOP
60
COVER LEFT
70
COVER RIGHT
80
BOLT FASTENING FOR LINING 5X15,5
100
REINFORCEMENT
110
BOLT FASTENING FOR LINING 5X15,5
150
GROMMET
