Поз.
Артикул
Описание

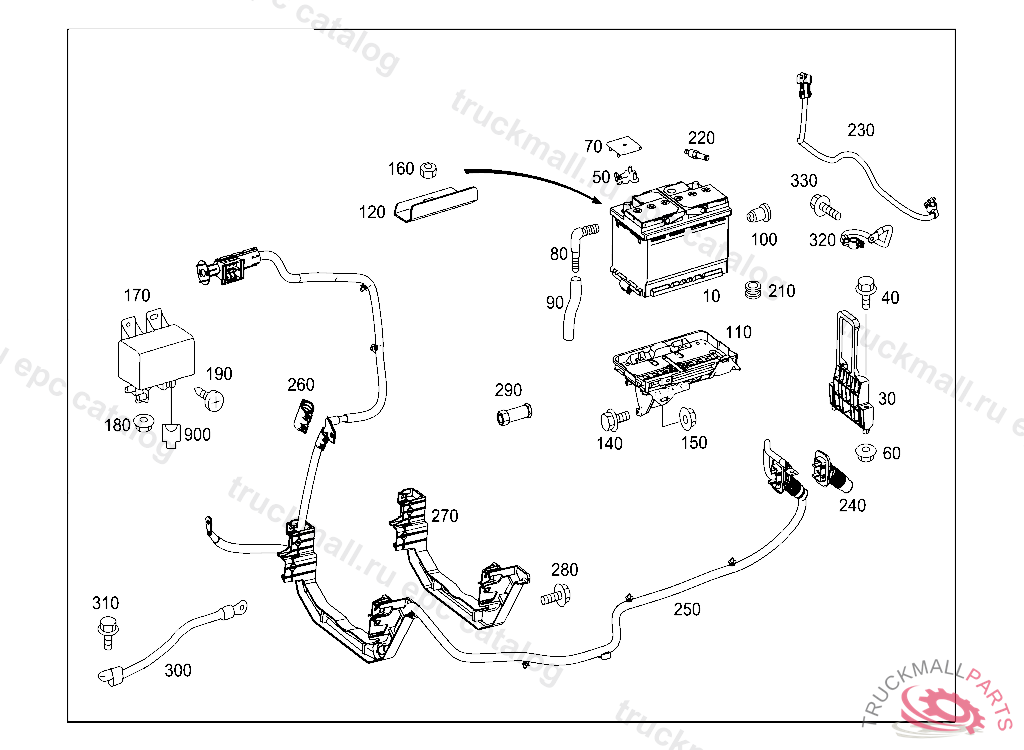

10
STARTER BATTERY FILLED 12V/100AH
10
BATTERY FILLED 12V/95AH
30
BRACKET BATTERY
40
SCREW. HEXAGON HEAD BOLT LINE MOUNTING M6X70
50
TERMINAL
60
NUT BRACKET TO BATTERY IMPLEMENT CARRIER M8
70
CAP POS. POLE
80
ELBOW FITTING. DISTRIBUTOR
90
BLEED HOSE , N 46047120100831 N 55847320130228
90
HOSE , ORDER BY THE METER
100
STOP PLUG. PLUG ON BATTERY,LATERALLY
110
BATTERY SUPPORT
120
RAIL BATTERY
140
HEXAGON HEAD BOLT LINE MOUNTING M6X10
140
SCREW BRACKET TO SIDE MEMBER M8X20
150
RIVET NUT. RIVETED NUT FEED LINE TO TRANSMISSION
160
NUT BRACKET TO BODY SHELL M6
170
RELAY (BATTERY CUT-OFF RELAY) 12 V
180
NUT BRACKET TO BODY SHELL M6
190
TAPPING SCREW CONTROL UNIT TO FIRE WALL
210
GROMMET SIDE MARKER LAMP CABLE
220
CONTACT PIN ON-BOARD ELECTRICAL SYSTEM SEPARATION
230
WIRING HARNESS FROM BATTERY TO FRAME
240
GROMMET PIPING
250
ELECTRICAL WIRING HARNESS BATTERY TO STARTER AND ALTERNATOR
260
COVER JUMP-STARTING POINT
270
CABLE DUCTOM651
280
HEXALOBULAR BOLT. SCREW BRACKET TO TRANSMISSION M 6X15
290
NUT JUMP START CONTACT
300
GROUND STRAP FROM ENGINE TO FRAME
310
SCREW BRACKET TO SIDE MEMBER M8X20
320
GROUND STRAP ADDITIONAL BATTERY
330
SCREW BRACKET TO SIDE MEMBER M8X20
900
PIN BUSHING HOUSING FROM BATTERY TO CONTACTOR
