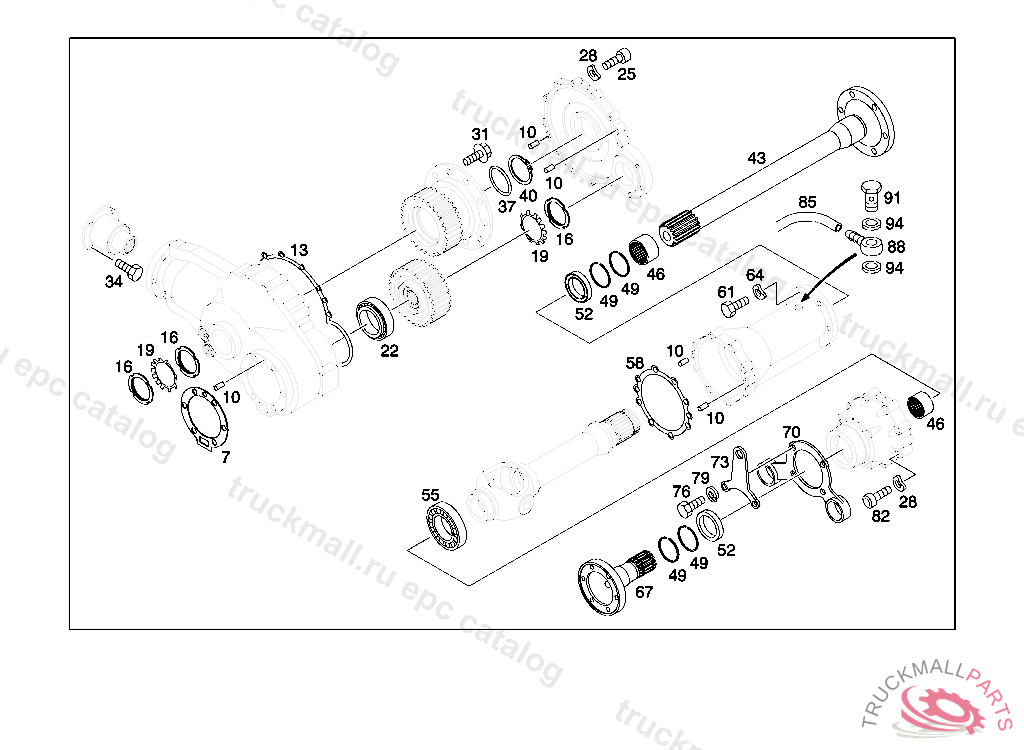

Поз.
Артикул
Описание
7
GASKET OUTSIDE
10
CYLINDRICAL PIN FRONT COVER FIXING 8X24
13
GASKET INSIDE
16
NUT WHEEL BEARING
19
LOCK PLATE DRUM HUB TO AXLE HOUSING
22
TAPERED ROLLER BEARING OUTSIDE
25
SCREW CONTROL SHAFT TO ENGINE
28
SPRING WASHER LICENSE PLATE TO BRACKET
31
SCREW RING GEAR TO DIFFERENTIAL CASE
34
SCREW PROPELLER SHAFT TO P.T.O. AND TO INTERMEDIATE BEARING,6 900042
37
SEAL RING
40
LOCK. FUSE AS REQUIRED "3,40"
40
LOCK AS REQUIRED "3,20"
40
LOCK AS REQUIRED "3,10"
40
LOCK. FUSE AS REQUIRED "3,30"
40
LOCK AS REQUIRED "3,60"
40
LOCK AS REQUIRED "3,70"
40
LOCK AS REQUIRED "2,90"
40
LOCK AS REQUIRED "3,00"
40
LOCK. FUSE AS REQUIRED "3,80", NO LONGER AVAILABLE
40
LOCK AS REQUIRED "3,50"
40
LOCK. FUSE AS REQUIRED "3,90"
43
DRIVE SHAFT LEFT
46
NEEDLE BEARING
49
SNAP RING
52
SEAL RING
55
TAPERED ROLLER BEARING RING GEAR BEARING
58
GASKET
61
SCREW
64
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
67
DRIVE SHAFT RIGHT
70
BRACKET
73
BRACKET
76
SCREW PUMP TO BRACKET
79
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
82
SCREW SPACER RING TO PULLEY
85
PLASTIC PIPE AERATION, ORDER BY THE METER
88
BANJO UNION HOSE WIDTH, / I.D., 6/10 MM
91
HOLLOW SCREW LINE CONNECTION
94
SEAL RINGTO 001 431 72 14
