Mercedes
›
VAN
›
314, 308CDI, 311CDI, 313CDI, 316CDI
›
903.611 FROM IDENT-NR. R337627, 5337627, A901274
›

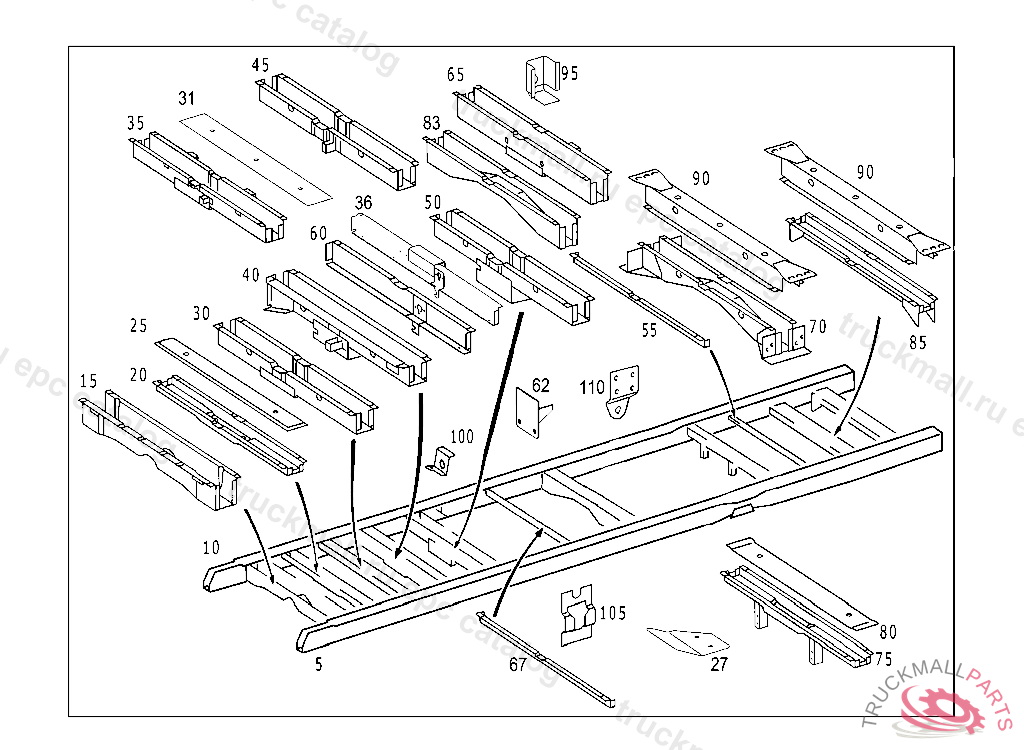

31 FRAME/TRAILER COUPLING
›
380 SIDE AND CROSS MEMBERS,AT REAR
Mercedes A9013170331 - КОЖУХ
314, 308CDI, 311CDI, 313CDI, 316CDI 903.611 FROM IDENT-NR. R337627, 5337627, A901274
31 FRAME/TRAILER COUPLING - 380 SIDE AND CROSS MEMBERS,AT REAR
Поз.
Артикул
Описание
5
A9013100418
SIDE MEMBER LEFT, WHEELBASE: 3000
10
A9013100319
SIDE MEMBER RIGHT, WHEELBASE: 3000
15
A6903107737
CROSS MEMBERNO.3
15
A6903100837
CROSS MEMBER"3", TO BE PROCURED FROM MBA ONLY
15
A9043100537
CROSS MEMBER CO-DRIVER'S SEAT,DOUBLE OCCUPANCY "3"
15
A9023100137
CROSS MEMBER"3"
20
A9013101737
CROSS MEMBER"3A"
25
A9013170331
COVER PLATE"3A"
27
A9014760046
PROTECTIVE PLATE BREATHER VALVE
30
A9043100436
CROSS MEMBER"4"
36
A6903107137
CROSS MEMBER"5", TO BE PROCURED FROM MBA ONLY
50
A9013120325
CROSS MEMBER5A, NO LONGER AVAILABLE
55
A9013121025
CROSS MEMBER"5B"
60
A9013100337
CROSS MEMBER
62
A6904700181
BRACKET AT CROSS MEMBER "6.3", TO BE PROCURED FROM MBA ONLY
70
A9013101537
CROSS MEMBER"6.7"
70
A9023100837
CROSS MEMBER"6.7"
70
A6903101537
CROSS MEMBER6.7, TO BE PROCURED FROM MBA ONLY
75
A9013101837
CROSS MEMBER"3A.1"
80
A9013170431
COVER PLATE
85
A9043100937
CROSS MEMBER"7.4", TO BE ADAPTED DURING ASSEMBLY
90
A9013100052
COVER PLATE
95
A9014000078
BEARING BRACKET SPARE WHEEL CARRIER
100
A9014280840
BRACKET BRAKE HOSE TO FRAME
105
A9014750740
BRACKET
110
A9043260147
SHACKLE
