Главная
›
Mercedes
›
BUS
›
314, 308 CDI, 311 CDI, 313 CDI, 316 CDI
›
903.661 TO IDENT-NR. R337626
›
31 FRAME
›
380 SIDE AND CROSS MEMBERS,AT REAR
Mercedes A9015830259 -

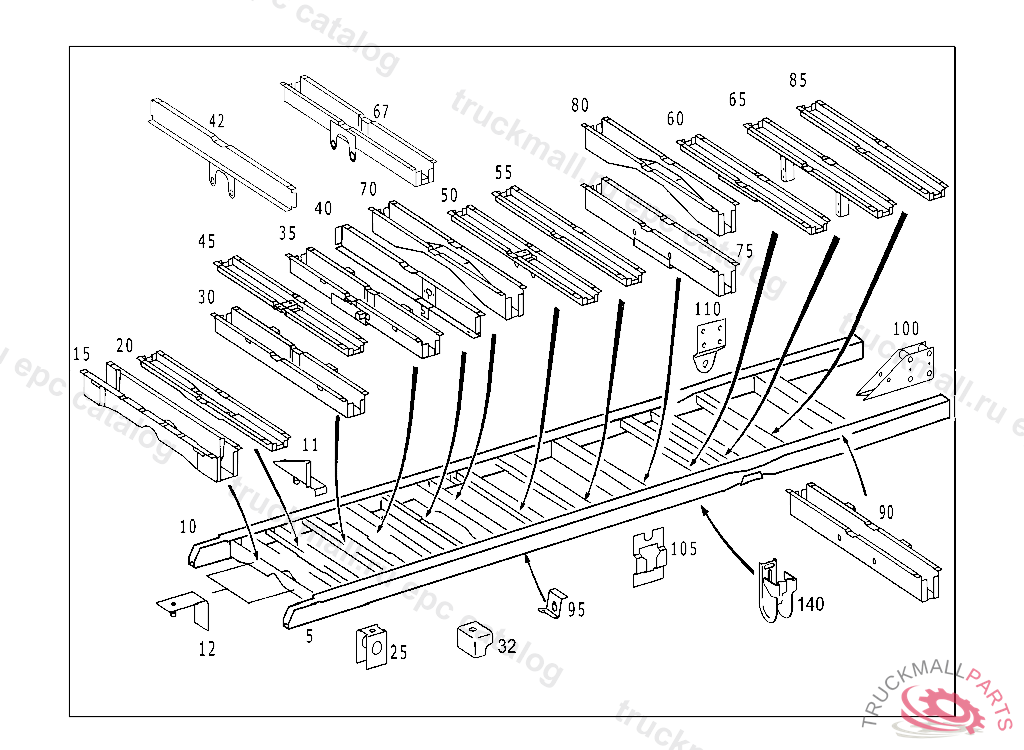

314, 308 CDI, 311 CDI, 313 CDI, 316 CDI 903.661 TO IDENT-NR. R337626
31 FRAME - 380 SIDE AND CROSS MEMBERS,AT REAR
Поз.
Артикул
Описание
5
A9023100018
SIDE MEMBER LEFT, WHEELBASE: 3000
10
A9023100019
SIDE MEMBER RIGHT, WHEELBASE: 3000
15
A9023100137
CROSS MEMBER"3"
15
A9043100537
CROSS MEMBER CO-DRIVER'S SEAT,DOUBLE OCCUPANCY "3"
20
A9013101737
CROSS MEMBER"3A"
25
A9013102167
BODY SUPPORT SEAT MOUNTING
35
A9013100336
CROSS MEMBERNO.4.3
40
A9013100337
CROSS MEMBER
42
A9043100737
CROSS MEMBER"5C.1"
45
A9013100737
CROSS MEMBERNO.6A.1
50
A9013100637
CROSS MEMBER"6A.2"
55
A9013101137
CROSS MEMBERNO.6A.3
65
A9013102037
CROSS MEMBERNO.6A.5
70
A9013101537
CROSS MEMBER"6.7"
85
A9013101837
CROSS MEMBER"3A.1"
95
A9014280840
BRACKET BRAKE HOSE TO FRAME
100
A9013100057
PLATE FRAME TRUSSING
105
A9014750740
BRACKET
110
A9043260147
SHACKLE
140
A9015830259
CLAMP JACK
