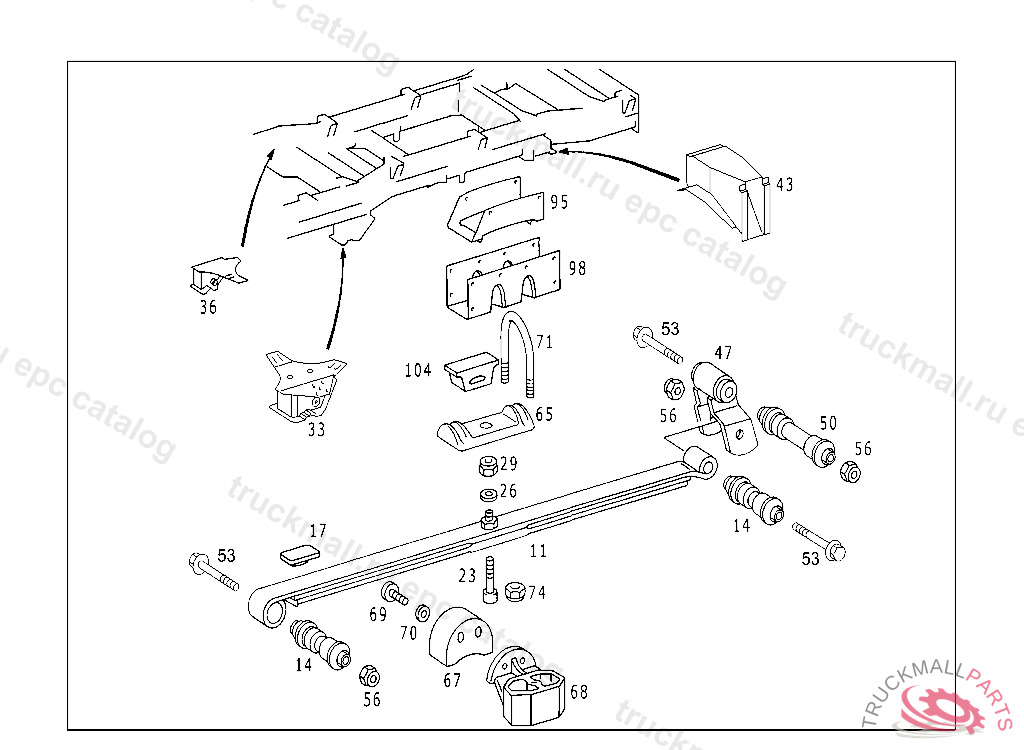

Поз.
Артикул
Описание
11
11
REAR SPRING SPRING SUSPENSION USED WITH HEIGHT OF CONSTRACTION DIMINISHED (CODE C17), ONLY REPLACEABLE BY PAIRS
11
REAR SPRING , ONLY REPLACEABLE BY PAIRS
11
REAR SPRING , ONLY REPLACEABLE BY PAIRS
11
11
REAR SPRING , Replaced By: A9043201606
11
REAR SPRING , Replaced By: A9043201806
11
REAR SPRING , Replaced By: A9043201906
11
REAR SPRING , Replaced By: A9043201706
11
REAR SPRING HARDER SPRING SUSPENSION, ONLY REPLACEABLE BY PAIRS
14
BUSHING
14
BUSHING
14
BUSHING36 MM
17
SHIM
17
RUBBER BUFFER
23
SPRING BOLT
23
SPRING BOLT
26
WASHER RADIATOR TO RUBBER MOUNTING
29
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
33
SPRING BRACKET REAR SPRING LEFT FRONT BRACKET
36
SPRING BRACKET REAR SPRING RIGHT FRONT BRACKET
43
SPRING BRACKET REAR-SPRING REAR BRACKET
47
SHACKLE REAR SPRING TO REAR SPRING REAR BRACKET, ONLY REPLACEABLE BY PAIRS
47
47
SHACKLE , Replaced By: A9043200563
50
BUSHING36 MM
50
BUSHING
53
HEXAGON HEAD BOLT MOUNTING PARTS M 16X120
56
NUT BEARING BRACKET TO BRAKE ANCHOR
65
PLATE
65
PLATE
67
SHIM
67
68
SHIM
69
SCREW AXLE HOUSING TO REAR SUBFRAME,FRONT
70
WASHER VIBRATION ABSORBER TO BRACKET
71
U-BOLT REAR SPRING TO REAR AXLE
71
CLAMP SPRING, 20140903
71
CLAMP REAR SPRING TO REAR AXLE, Replaced By: A9063250247
71
CLAMP
71
CLAMP REAR SPRING TO REAR AXLE, Replaced By: A9063251347
71
CLAMP
71
U-BOLT REAR SPRING TO REAR AXLE
71
U-BOLT , S 47977520100531
71
CLAMP
74
COLLAR NUT F SHAFT AT CLAMP
95
BRACKET SPRING STOP
98
TRUSS SPRING STOP
98
TRUSS SPRING STOP
104
RUBBER BUFFER REAR SPRING TO REAR AXLE
