Mercedes
VAN
524, 509CDI, 511CDI, 515CDI, 518CDI
906.155
47 FUEL SYSTEM

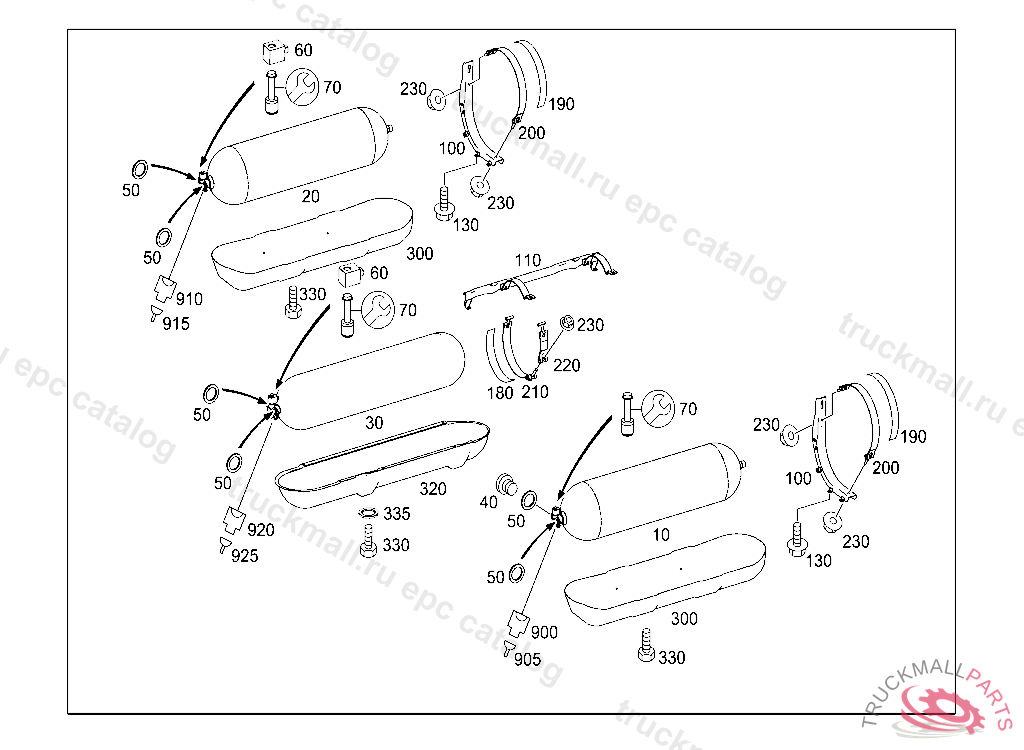

290 COMPRESSED-GAS TANK UPSTREAM OF REA R AXLE

Mercedes N304017006016 - Винт M 6 X 16 8.8

524, 509CDI, 511CDI, 515CDI, 518CDI 906.155

47 FUEL SYSTEM - 290 COMPRESSED-GAS TANK UPSTREAM OF REA R AXLE

Поз.
Артикул
Описание
10
A9064701009
GAS CYLINDER LEFT OUTSIDE, N 56002020131017
10
A9064704309
GAS CYL. F NATURAL GAS LEFT OUTSIDE, N 56515720131017
20
A9064701109
GAS CYLINDER RIGHT OUTSIDE, N 56002020131017
20
A9064704609
GAS CYL. F NATURAL GAS RIGHT OUTSIDE, N 56515720131017
30
A9064700409
GAS CYL. F NATURAL GAS RIGHT INSIDE, N 56002020131017, Replaced By: A9064701509
30
A9064705009
GAS CYL. F NATURAL GAS RIGHT INSIDE, N 56515720131017
30
A9064701509
GAS CYL. F NATURAL GAS RIGHT INSIDE, N 56002020131017
40
A2114710720
FITTING LINE CONNECTION
50
N000000001069
SEALING RING
60
A9069820027
SOLENOID FRONT CYLINDER
70
A9064740230
RS SHUT-OFF VALVE REAR CYLINDER
100
A9064701042
SUPPORT FRONT OUTSIDE
110
A9064701142
SUPPORT FRONT INSIDE
130
N910143010011
HEXALOBULAR BOLT HORN TO BRACKET M10X20,V 207570
130
N910105010009
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
180
A9064750120
PROFILE BASE , TO BE ADAPTED DURING ASSEMBLY
190
A9064750120
PROFILE BASE , TO BE ADAPTED DURING ASSEMBLY
200
A9064751021
TENSIONING STRAP GAS CYLINDERS AT HOLDER
210
A9064751321
TENSIONING STRAP
220
A9064750521
TENSIONING STRAP TOP,REAR, S 82368020130101
230
N913023010002
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
300
A9064750946
PROTECTIVE PLATE
320
A9064751146
PROTECTIVE PLATE
330
N304017006016
SCREW PUMP TO BRACKET
335
N009021006208
WASHER COMPRESSED AIR LINE TO BRACKET
900
A2105402081
PIN BUSHING HOUSING OUTBOARD TEMPERATURE FEELER 2-PIN CODE A,B4,126373
900
A0005458583
CAP. BOOT ,126372
900
A0055455426
PIN BUSHING HOUSING BIPOLAR TO 651 540 36 09
905
A0005452939
CORE BUNDLE SEALING. WIRE SEAL WITHE 1.0-2.5 MM2, PIN 57 - 62
905
A0115457726
CONTACT SPRING LESS DETENT,BUT WITH CATCH FOR HOUSING 0.5-1.0MM2,126372
905
A0005456280
GASKET. BLIND PLUG
905
A0115457626
CONTACT SPRING WITH GASKET 1.5-2.5 MM2
905
A0005452839
WIRE SEAL
910
A2105402081
PIN BUSHING HOUSING OUTBOARD TEMPERATURE FEELER 2-PIN CODE A,B4,126373
910
A0005458583
CAP. BOOT ,126372
910
A0055455426
PIN BUSHING HOUSING BIPOLAR TO 651 540 36 09
915
A0005452939
CORE BUNDLE SEALING. WIRE SEAL WITHE 1.0-2.5 MM2, PIN 57 - 62
915
A0115457726
CONTACT SPRING LESS DETENT,BUT WITH CATCH FOR HOUSING 0.5-1.0MM2,126372
915
A0115457626
CONTACT SPRING WITH GASKET 1.5-2.5 MM2
915
A0005456280
GASKET. BLIND PLUG
915
A0005452839
WIRE SEAL
920
A2105402081
PIN BUSHING HOUSING OUTBOARD TEMPERATURE FEELER 2-PIN CODE A,B4,126373
920
A0005458583
CAP. BOOT ,126372
920
A0055455426
PIN BUSHING HOUSING BIPOLAR TO 651 540 36 09
925
A0005452939
CORE BUNDLE SEALING. WIRE SEAL WITHE 1.0-2.5 MM2, PIN 57 - 62
925
A0115457726
CONTACT SPRING LESS DETENT,BUT WITH CATCH FOR HOUSING 0.5-1.0MM2,126372
925
A0005456280
GASKET. BLIND PLUG
925
A0115457626
CONTACT SPRING WITH GASKET 1.5-2.5 MM2
925
A0005452839
WIRE SEAL
