Поз.
Артикул
Описание

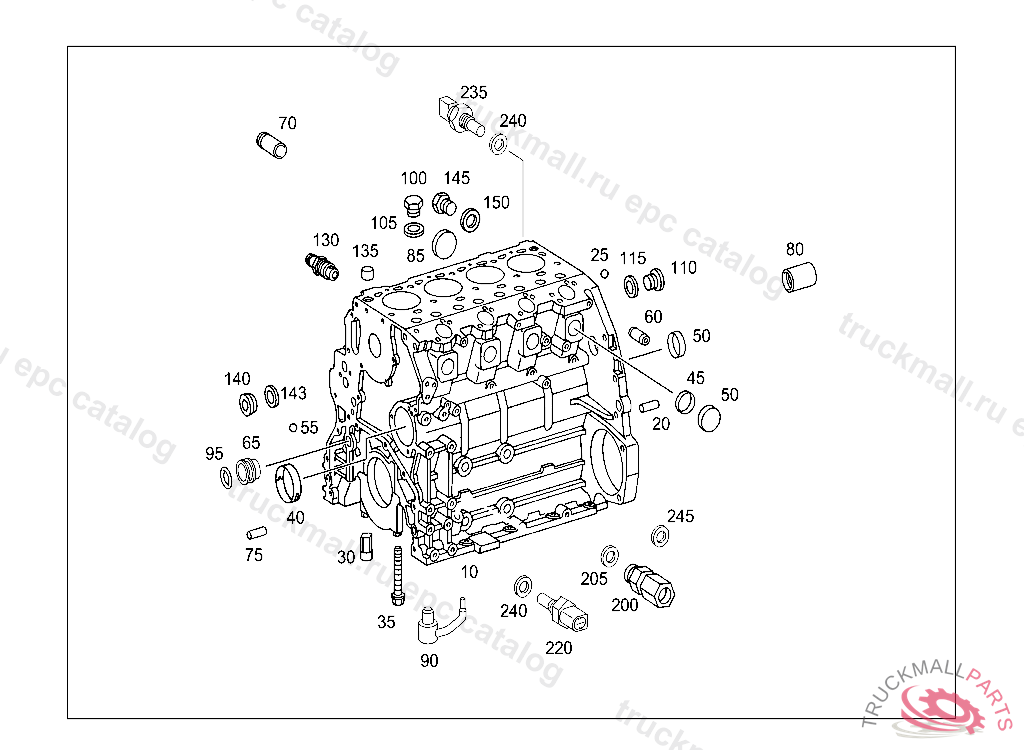

10
CRANKCASE
10
CYLINDER CRANKCASE
20
SLEEVE FLYWHEEL HOUSING TO CYLINDER CRANKCASE
25
BALL TO PLUG OIL CONNECTION TO AIR COMPRESSOR
30
DOWEL PIN CRANKSHAFT BEARING CAP
35
SCREW CRANKSHAFT BEARING CAP TO CYLINDER CRANKCASE,*0185257
40
BUSHING CAMSHAFT BEARINGS,*0185257
40
BUSHING CAMSHAFT BEARINGS
45
EXPANSION PLUG WATER PASSAGE 36.2 MM
45
EXPANSION PLUG
50
EXPANSION PLUG WATER PASSAGE
50
EXPANSION PLUG PLUG FOR OIL CHAMBER,UNIT PUMP SIDE
55
BALL TO PLUG AIR COMPRESSORE OIL BORE,FRONT SIDE
55
BALL FRONT AND REAR 14.288 MM
55
BALL HOUSING,TOP
55
BALL SHIFTING ROD
55
BALL TO PLUG OIL CONNECTION TO AIR COMPRESSOR
60
THROTTLE FUEL BORE COVER,UNIT PUMP SIDE
65
INTERMEDIATE PIECE LOCK, OIL SUPPLY UNIT PUMP
70
FITTING. INTERMEDIATE PIECE TURBOCHARGER OIL RETURN
75
SLEEVE OIL PUMP TO CRANKCASE
80
FITTED SLEEVE PULSE SENDER UNIT AT CYLINDER CRANCASE
85
EXPANSION PLUG FASTENER COOLING WATER PRE-HEATER O 60 MM
90
OIL NOZZLE PISTON COOLING
95
SEAL RING INTERMEDIATE FLANGE
100
SCREW PLUG , Replaced By: N007604018101
105
SEALING RING OIL LINE TO CYLINDER CRANKCASE
110
SCREW PLUG, FILLING. SCREW PLUG FLAME START SYSTEM LOCK
115
SEALING RINGTO A957 490 05 14
130
SCREW PLUG CYLINDER CRANKCASE WATER DRAIN
135
SLEEVE CYLINDER HEAD TO CYLINDER CRANKCASE
140
SCREW PLUG, FILLING. SCREW PLUG FLAME START SYSTEM LOCK
143
SEALING RINGTO A957 490 05 14
145
SCREW PLUG WATER SEPARATOR
150
SEALING RING
200
OVERFLOW VALVE4.5 BAR,*0002603
205
SEALING RING OIL PRESSURE GAUGE SENDER UNIT
220
SENDER UNIT TEMPERATURE SENDER UNIT
220
SENDER UNIT TEMPERATURE GAUGE SENDER UNIT
235
SENDER UNIT OIL PRESSURE GAUGE SENDER UNIT
235
SENDER UNIT OIL PRESSURE GAUGE SENDER UNIT, Replaced By: A0071530828
240
SEALING RING
245
SEALING RING OIL PRESSURE GAUGE SENDER UNIT
