Mercedes
›
TRUCK
›
1831 LS - 1843 LS
›
954.042
›
31 FRAME
›

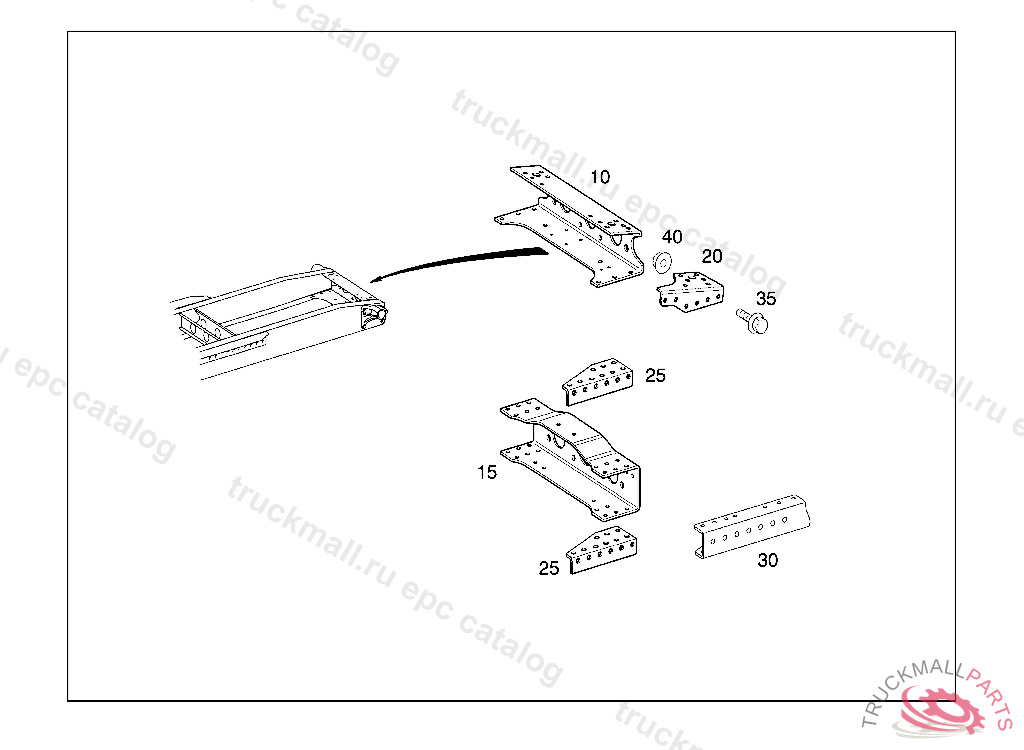

001 REAR CROSS MEMBER
Mercedes N910105014009 - Винт M 14 X 1,5 X 70 10.9
1831 LS - 1843 LS 954.042
31 FRAME - 001 REAR CROSS MEMBER
Поз.
Артикул
Описание
10
A9413120035
CROSS MEMBER (REAR CROSS MEMBER)
15
A9413120535
CROSS MEMBER AT FRAME, REAR
20
A9413121787
GUSSET PLATE RIGHT
20
A9413121687
GUSSET PLATE LEFT
25
A9413122087
GUSSET PLATE RIGHT
25
A9413121987
GUSSET PLATE LEFT
30
A0833120390
REINFORCEMENT RIGHT, TO BE ADAPTED DURING ASSEMBLY
30
A0833120290
REINFORCEMENT LEFT, TO BE ADAPTED DURING ASSEMBLY
35
N910105014009
HEXAGON HEAD BOLT. SCREW GUSSET PLATE TO FRAME M14 X 1.5 X 70
40
N913023014003
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
