Поз.
Артикул
Описание

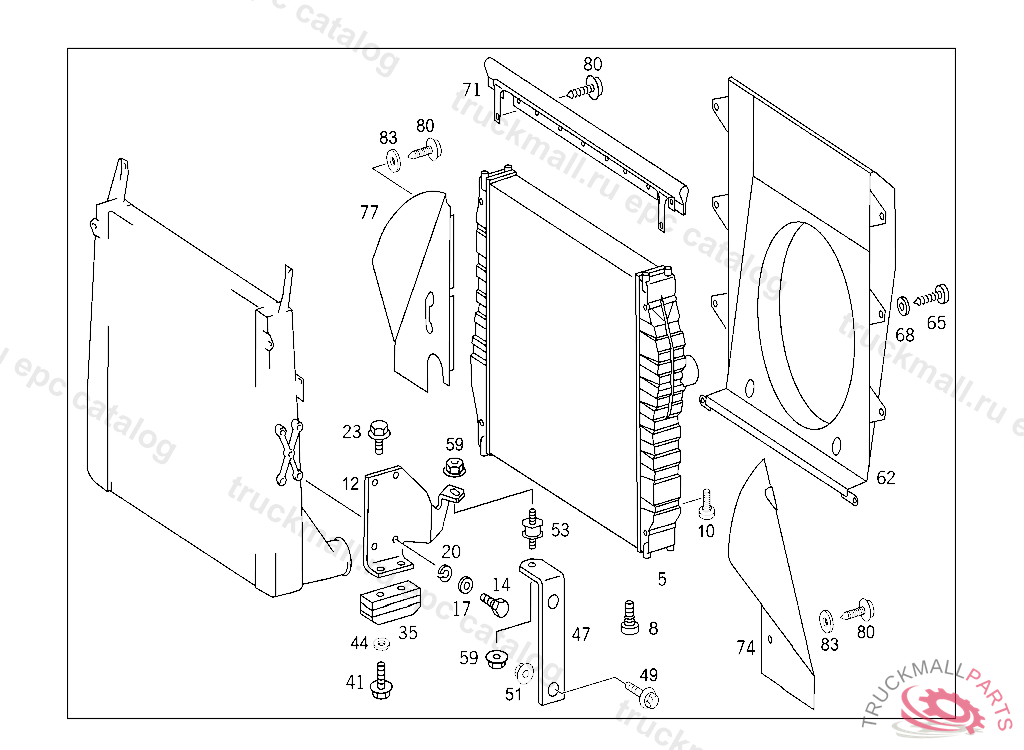

5
RADIATOR WATER
5
RADIATOR , Replaced By: A9575000103
5
RADIATOR WATER
8
SCREW COOLING WATER DRAIN
10
SCREW, SPECIAL SHAPE RADIATOR MOUNTING
12
BRACKET LEFT,V 207570
12
BRACKET RIGHT,V 207570
14
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
17
WASHER EXHAUST MUFFLER TO STRAP
20
LOCK WASHER PARKING BRAKE VALVE TO WINDOW SILL
23
SCREW SPEED SENSOR TO REAR AXLE
35
RUBBER MOUNTING RADIATOR TO SUPPORT,V 207570
41
SCREW BRACKET TO SIDE MEMBER M8X20
44
WASHER BRACKET TO CAB REAR PANEL
47
BRACKET COOLING WATER LINE TO FRAME
47
BRACKET , Replaced By: A3834929141
49
HEXALOBULAR BOLT BRACKET TO BRACKET M 10X30
51
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
53
BEARING (RUBBER MOUNTING),RADIATOR,REAR
59
NUT ENGINE MOUNTING M8
62
FAN SHROUD RADIATOR,V 207570
65
SHEET METAL SCREW FAN SHROUD TO RADIATOR 6.3X19
68
WASHER FAN SHROUD TO RADIATOR
71
SEAL ON RADIATOR,TOP,V 207570
74
SEAL RADIATOR,LEFT,V 207570
77
SEAL RADIATOR,RIGHT,V 207570
80
BOLT. SCREW SEAL TO RADIATOR,TOP 6X25 MM
83
WASHER BRACKET TO LEFT SIDE MEMBER
83
WASHER BRACKET TO CAB REAR PANEL
