Mercedes N304032006004 - Гайка / mutter

2035S,2040S,2044S 958.431

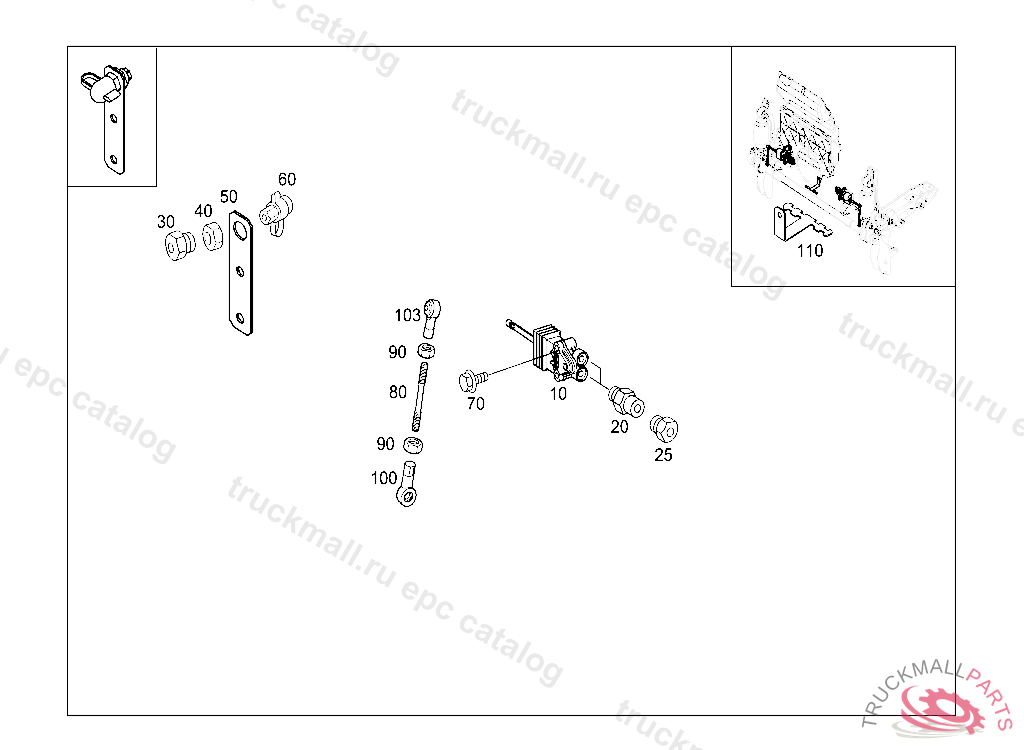

31 FRAME - 340 CAB AIR-SPRING VALVES,FRONT

Поз.
Артикул
Описание
10
A0003284530
VALVE AIR SUSPENSION,CAB SUSPENSION,FRONT
20
A0079972272
FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION M 10X1/ M 10X1
25
A0009974934
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M 10, VOSS 232, Replaced By: A0009975034
30
A0009974934
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M 10, VOSS 232, Replaced By: A0009975034
40
N080705016003
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
50
A9584299568
60
A0014311931
TEST CONNECTION WITH INTERNAL THREAD M10X1
70
N910105008045
SCREW. HEXAGON HEAD BOLT GGVS-COMPONENT IN BATTERY CARRIER M8X55
80
N900331006630
PULL ROD FROM CONTROL SHAFT BEARING TO INTERMEDIATE LEVER 400 MM, TO BE ADAPTED DURING ASSEMBLY
90
N304032006005
NUT L.H. THREAD
90
N304032006004
NUT SPRING-LOADED PUSH ROD
100
A9453280063
JOINT R.H. THREAD
103
A9453280163
JOINT L.H. THREAD
110
A9583280140
999
A9443200189
