Mercedes A0009904892 - Крепёж

214, 208CDI, 211CDI, 213CDI 901.661 FROM IDENT-NR. R337627, 5337627, A901274

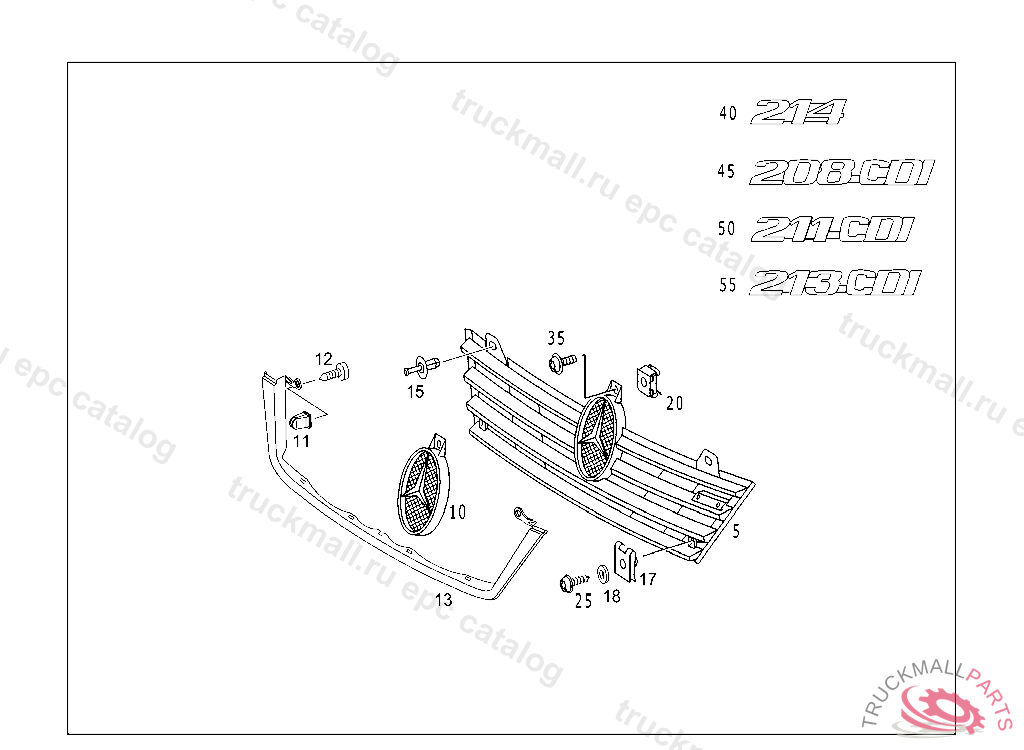

88 BUMBER/FENDER/ENGINE HOOD - 430 RADIATOR GRILL

Поз.
Артикул
Описание
5
A9018800185
RADIATOR GRILLE READY TO BE PAINTED
5
A9018800085
RADIATOR GRILLE
5
A9018800385
RADIATOR GRILLE , R 42378520020628 20021024
5
A9018800585
RADIATOR GRILLE PRIMED, PAINT BEFORE INSTALLATION, R 53557720030331553557720030331
10
A9018170016
BADGE , 20060101
10
A9018170816
BADGE , R 42378520020628
11
A6399980185
TREENAIL BRACKET TO FIRE WALL
12
N000000000814
TAPPING SCREW INSTRUMENT PANEL ON WAIST RAIL 4.2X16
12
N000000000528
TAPPING SCREW. SHEET METAL SCREW BRACKET TO CAB
13
A9018880173
ORNAMENTAL COVER PROTECTIVE GRILLE
15
A0009904892
RIVET
17
A0039948745
LOCK NUT. LOCK
18
A1159904640
WASHER STOP AND TAIL LIGHTS
20
N913014006003
CAPTIVE NUT. NUT
25
A0019846429
SCREW W COLLAR A DRIVEM5X35
25
N000000000530
TAPPING SCREW
35
N000000001476
HEXALOBULAR BOLT BASIC MODULE AT SUPPORT M6X16,01.08.08
40
A9018171814
TYPE DESIGNATION214
45
A9018174314
TYPE DESIGNATION208CDI, R 42378520020628542378520020628 A 90600720021024
45
A9018171514
TYPE DESIGNATION208CDI, 20060101
50
A9018171614
TYPE DESIGNATION211CDI, 20060101
50
A9018174414
TYPE DESIGNATION211CDI, R 42378520020628
55
A9018171714
TYPE DESIGNATION213 CDI
55
A9018174514
TYPE DESIGNATION213CDI, R 42378520020628
