Главная
›
Mercedes
›
VAN
›
314, 308 CDI, 311 CDI, 313 CDI, 316 CDI
›
903.612 TO IDENT-NR. R337626
›
31 FRAME
›
380 SIDE AND CROSS MEMBERS,AT REAR
Mercedes A9013170331 - КОЖУХ
314, 308 CDI, 311 CDI, 313 CDI, 316 CDI 903.612 TO IDENT-NR. R337626

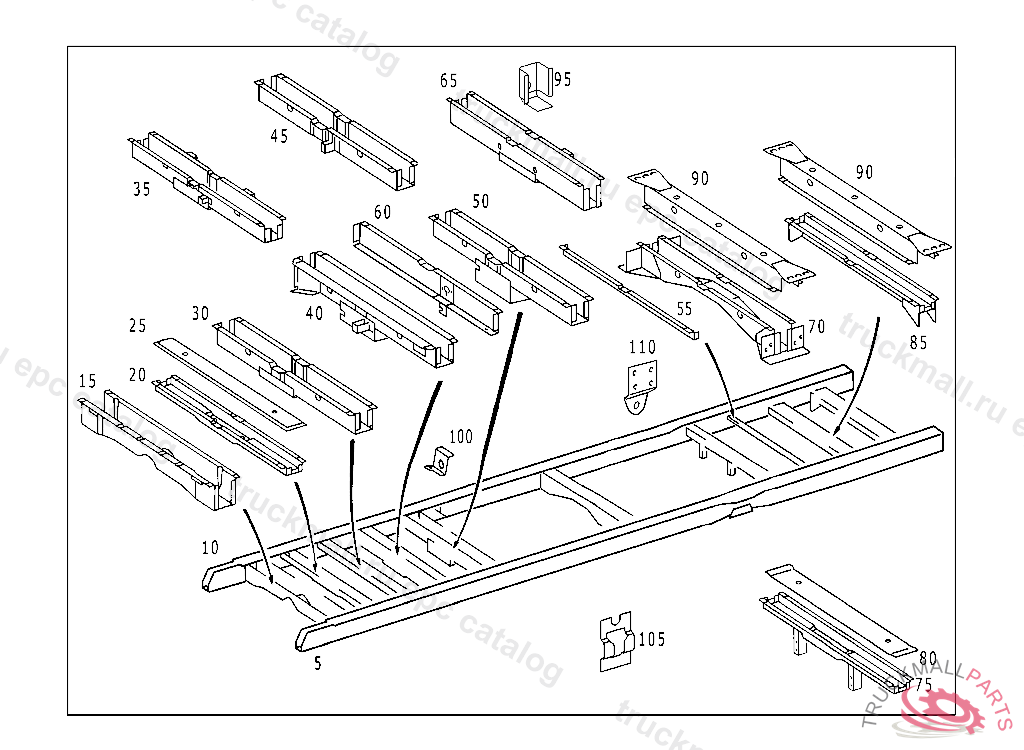

31 FRAME - 380 SIDE AND CROSS MEMBERS,AT REAR
Поз.
Артикул
Описание
5
A9033100118
SIDE MEMBER LEFT, WHEELBASE: 3550
5
A9013100518
SIDE MEMBER LEFT, WHEELBASE: 3550
10
A9033100019
SIDE MEMBER RIGHT, WHEELBASE: 3550
10
A9013100419
SIDE MEMBER RIGHT, WHEELBASE: 3550
15
A9043100537
CROSS MEMBER CO-DRIVER'S SEAT,DOUBLE OCCUPANCY "3"
15
A9023100137
CROSS MEMBER"3"
20
A9013101737
CROSS MEMBER"3A"
25
A9013170331
COVER PLATE"3A"
30
A9013100636
CROSS MEMBERNO.4.1
35
A9013100036
CROSS MEMBER"4.5"
55
A9013121025
CROSS MEMBER"5B"
60
A9013100337
CROSS MEMBER
70
A9023100837
CROSS MEMBER"6.7"
75
A9013101837
CROSS MEMBER"3A.1"
80
A9013170431
COVER PLATE
85
A9043100937
CROSS MEMBER"7.4", TO BE ADAPTED DURING ASSEMBLY
90
A9013100052
COVER PLATE
95
A9014000078
BEARING BRACKET SPARE WHEEL CARRIER
100
A9014280840
BRACKET BRAKE HOSE TO FRAME
105
A9014750740
BRACKET
110
A9043260147
SHACKLE
