Mercedes A0008361918 - РЕШЕТКА

314, 308CDI, 311CDI, 313CDI, 316CDI 903.662 FROM IDENT-NR. R337627, 5337627, A901274

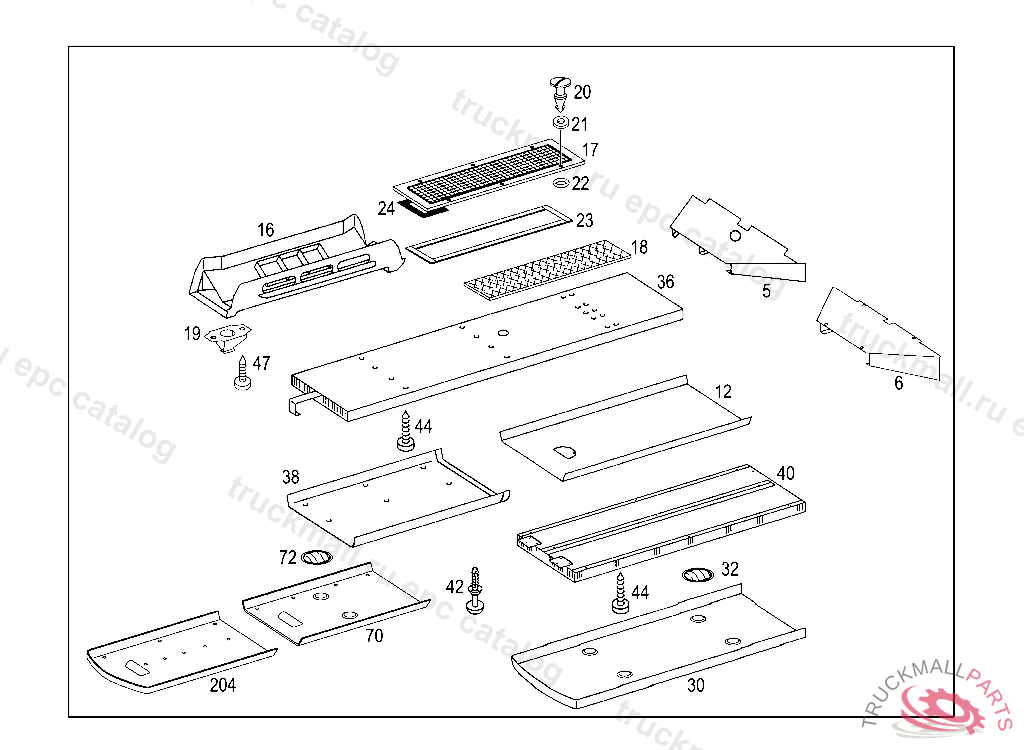

83 HEATING/VENTILATION - 210 AIR DUCT TO ROOF IL. 1

Поз.
Артикул
Описание
5
A9018300345
PANELING ADAPTER FITTING
5
A9018300045
AIR DUCT ADAPTER FITTING
6
A9018300145
AIR DUCT ADAPTER FITTING
16
A9018301264
PANELING
16
A9018300364
LINING EVAPORATOR , Replaced By: A9018301564
16
A9018300264
PANELING. PANELLING
16
A9018300164
PANELING , Replaced By: A9018301364
16
A9018300064
PANELING. PANELLING
16
A9018301364
PANELING
16
A9018301464
PANELING
16
A9018301564
LINING EVAPORATOR
17
A0008361918
GRILLE , R 75425720041029
17
A0008362018
PROTECTIVE GRILLE , R 75425820041029575425820041029
18
A0018350647
FILTER , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. R 63356620040227563356620040227, Replaced By: A0028350447
18
A0028350447
FILTER MAT
19
A0008354434
SPRING CLIPTO A 628 830 65 61
20
A0008310278
CATCH. FASTENER
21
A0059904240
WASHER
22
A0008360199
RING FASTENER, NOT USED
23
A0006930287
BAND. STRAP
24
A0029891398
SEALING STRIP
30
A9018302044
AIR DUCT FRONT
30
A9018301344
AIR DUCT INTERIOR PART,FRONT
32
A0008303054
NOZZLE REAR AIR DUCT
36
A9018302444
AIR DUCT INTERIOR PART,FRONT
42
A9019900192
RIVET PANELLING TO ROOF RAIL
44
N007981004253
SHEET METAL SCREW SWITCH TO BRACKET
47
N000000000530
TAPPING SCREW
47
N000000000528
TAPPING SCREW. SHEET METAL SCREW BRACKET TO CAB
70
A9018302144
AIR DUCT REAR
72
A0008303054
NOZZLE REAR AIR DUCT
204
A9018301244
AIR DUCT INTERIOR PART,FRONT
