Mercedes A0009842429 - Болт

314, 308CDI, 311CDI, 313CDI, 316CDI 903.662 FROM IDENT-NR. R337627, 5337627, A901274

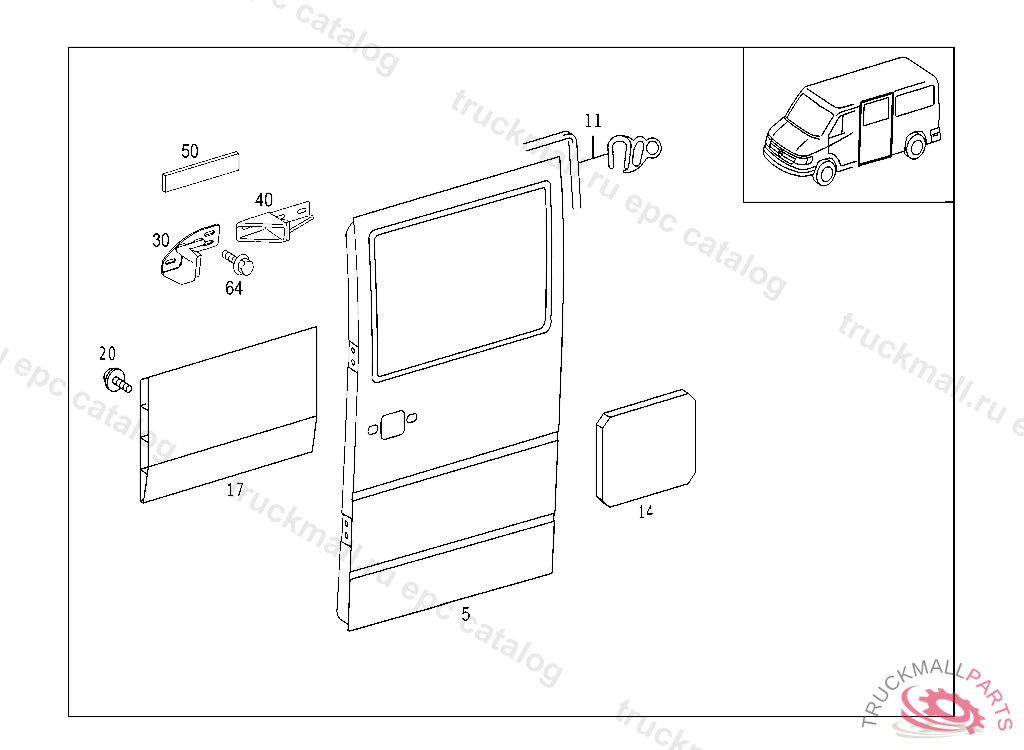

62 COWL,FRONT PANEL - 090 FRONT END CENTER PIECE & PANELING

Поз.
Артикул
Описание
5
A9017301305
DOOR SHELL LESS WINDOW,LEFT
5
A9017300405
DOOR SHELL WITH WINDOW,RIGHT
5
A9017301405
DOOR SHELL LESS WINDOW,RIGHT "4025", R 60127720031031560127720031031
5
A9047300105
DOOR SHELL LESS WINDOW,LEFT
5
A9047300705
DOOR SHELL WITH WINDOW,RIGHT
5
A9017300105
DOOR SHELL LESS WINDOW,LEFT
5
A9017300305
DOOR SHELL WITH WINDOW,LEFT
5
A9047300205
DOOR SHELL LESS WINDOW,RIGHT
5
A9047300305
DOOR SHELL WITH WINDOW,LEFT
5
A9047300605
DOOR SHELL WITH WINDOW,LEFT
5
A9017301505
DOOR SHELL WITH WINDOW,LEFT
5
A9047300405
DOOR SHELL WITH WINDOW,RIGHT
5
A9017300205
DOOR SHELL LESS WINDOW,RIGHT
5
A9047300005
DOOR SHELL LESS WINDOW,LEFT
11
A9016970598
SEAL DOOR FRAME, Replaced By: A6906970398
14
A9016821909
INSULATION
17
A9017301906
REINFORCEMENT
20
A0009842429
SCREW FENDER TO BRACKET
30
A9017302106
CONSOLE
40
A9017302206
CONSOLE BOTTOM
50
A9018680197
PAD TO COVERING
64
N000000002196
HEXALOBULAR BOLT BACKREST TO REAR WALL M6X20
