Главная
›
Mercedes
›
VAN
›
314, 308CDI, 311CDI, 313CDI, 316CDI
›
903.662 FROM IDENT-NR. R337627, 5337627, A901274
›
83 HEATING/VENTILATION
›
210 AIR DUCT TO ROOF IL. 2

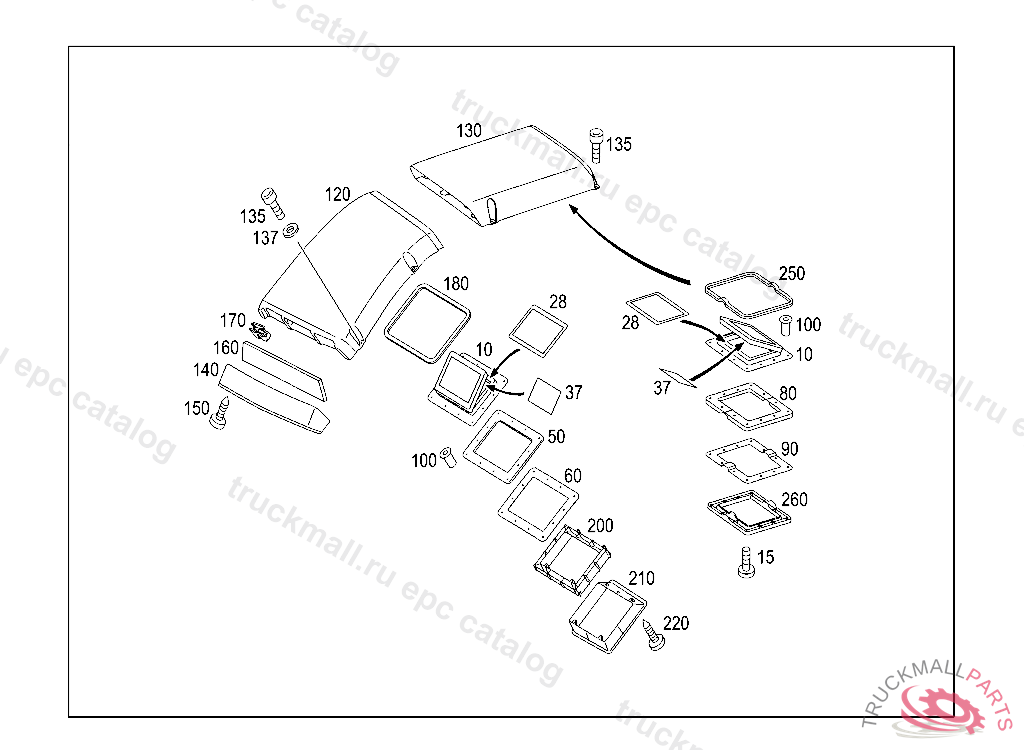

Mercedes A9018315745 - КАНАЛ
314, 308CDI, 311CDI, 313CDI, 316CDI 903.662 FROM IDENT-NR. R337627, 5337627, A901274
83 HEATING/VENTILATION - 210 AIR DUCT TO ROOF IL. 2
Поз.
Артикул
Описание
10
A0008307442
FLAP FRONT AND REAR
15
N000000000487
TAPPING SCREW. SCREW MOUNTING STOP
28
A0008310198
SEAL VENTILATION FLAP
37
A9015840147
WARNING STRIP VENTILATION FLAP
50
A9018310042
FRAME DRIVER AIR DUCT
60
A9018313898
SEAL DRIVER AIR DUCT
80
A9018310142
FRAME REAR INSIDE
90
A9018313998
SEAL REAR INSIDE
100
N913010006106
RIVETED NUT REFRIGERANT LINE TO CAB REAR PANEL
100
N913024006100
RIVETED NUT. RIVET NUT BRACKET TO ORNAMENTAL GRILLE M6X14.5
120
A9018315745
DUCT FRONT
130
A9018315845
DUCT REAR
135
N000000002196
HEXALOBULAR BOLT BACKREST TO REAR WALL M6X20
137
N009021006208
WASHER COMPRESSED AIR LINE TO BRACKET
140
A9018350053
HOUSING FRONT AIR DUCT
150
N000000000525
SHEET METAL SCREW AIR BAFFLE TO AIR DUCT 4.2X25
160
A9018310658
GRILLE FRONT AIR DUCT
170
A0039941245
SHEET METAL NUT INSTRUMENT PANEL ON WAIST RAIL
180
A9018313698
SEAL DRIVER AIR DUCT
200
A9018310242
FRAME INSIDE FRONT
210
A9018310076
FRAME INSIDE FRONT
220
N000000000525
SHEET METAL SCREW AIR BAFFLE TO AIR DUCT 4.2X25
250
A9018313798
SEAL REAR AIR DUCT
260
A9018310342
FRAME REAR INSIDE
