Mercedes A9034710079 - Уплотнит. кольцо

314, 308CDI, 311CDI, 313CDI, 316CDI 903.662 FROM IDENT-NR. R337627, 5337627, A901274

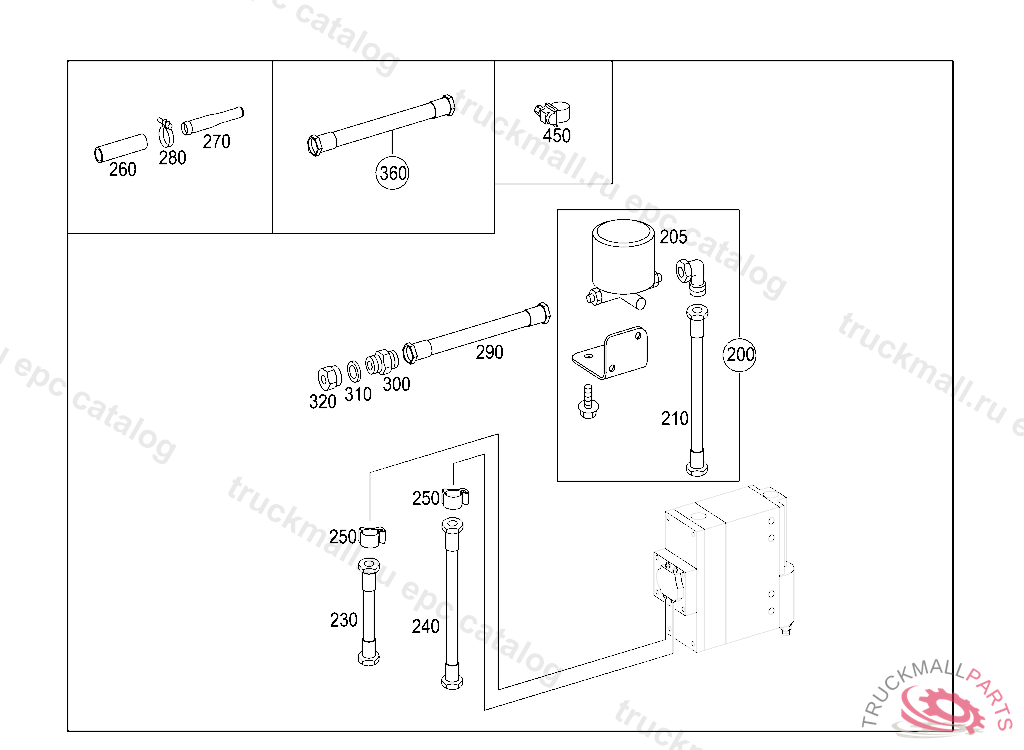

47 FUEL SYSTEM - 270 L.P. GAS SYSTEM IL. 3

Поз.
Артикул
Описание
200
A9034700119
FUEL FILTER
205
A9034740109
FILTER
210
A9034740160
LINE FROM FILTER TO DISTRIBUTOR, R 73517620050208573517620050208
210
A9034742760
LINE FROM FILTER TO DISTRIBUTOR, R 73517720050208573517720050208
230
A9034740560
LINE PRESSURE SENSOR TO INTAKE MANIFOLD
240
A9034740760
LINE FROM PRESSURE REGULATOR TO INTAKE PIPE
250
A0009955010
CLAMP FUEL LINE LEADING TO FEED PUMP, F 155735 EXCEPT CODE 807 ALSO INSTALLED IN VEHICLE TO F 155734 WITH CODE 808
260
A1112030382
HOSE PRESSURE REGULATOR COOLING
270
A1119970076
REDUCING PIECE PRESSURE REGULATOR COOLING
280
N000000000667
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
290
A9034740260
LINE FROM PRESSURE REGULATOR TO GAS FILTER
300
A9034760034
FITTING FROM GAS RESERVOIR TO SOLENOID VALVE
310
A9034710079
SEAL RING FROM GAS RESERVOIR TO SOLENOID VALVE
320
A9039970034
UNION NUT FROM GAS RESERVOIR TO SOLENOID VALVE
360
A9034740960
LINE FROM GAS RESERVOIR TO SOLENOID VALVE
450
A0069979490
CABLE TIE. CLAMP GUIDE TUBE TO CYLINDER CRANKCASE
