Главная
›
Mercedes
›
VAN
›
SPRINTER 408 D
›
904.362
›
83 HEATING AND VENTILATION
›

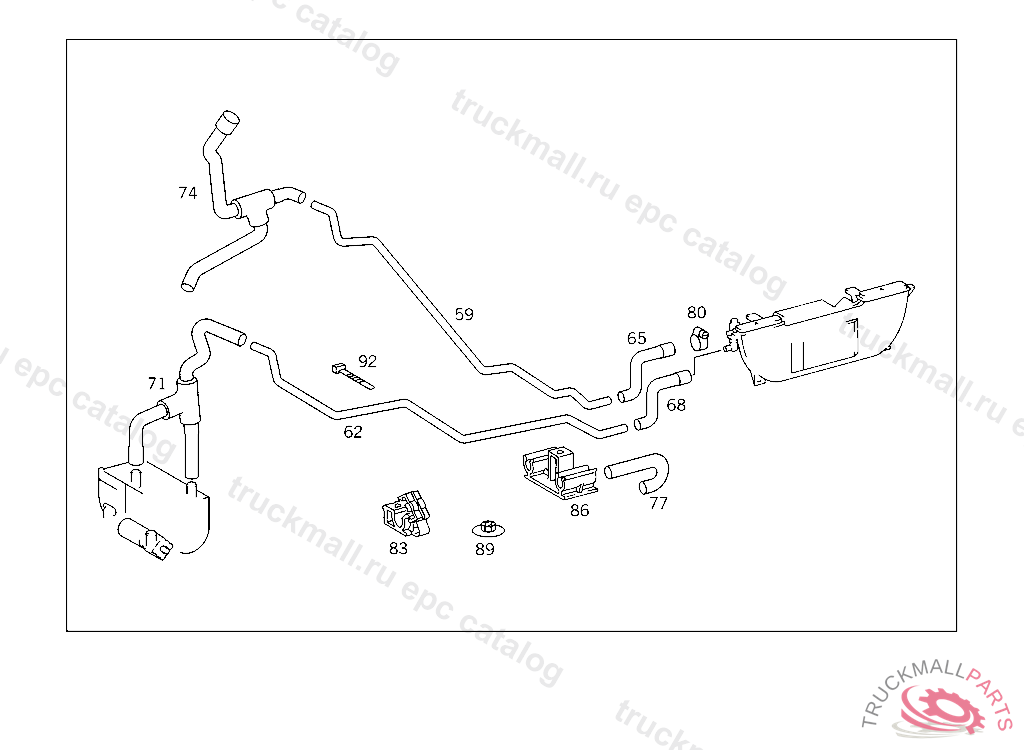

130 HEAT EXCHANGER IL. 2
Mercedes A9018320615 - ТРУБОПРОВОД
SPRINTER 408 D 904.362
83 HEATING AND VENTILATION - 130 HEAT EXCHANGER IL. 2
Поз.
Артикул
Описание
59
A9018320615
PIPE LINE RETURN FROM HEAT EXCHANGER
62
A9018320715
PIPE LINE FROM PIPE LINE TO HEAT EXCHANGER, FEED
65
A9018323823
HOSE
68
A9018323923
HOSE
71
A9018301096
HOSE
74
A9018300896
77
A9018323723
HOSE
80
A2029950210
CLAMP , Replaced By: N916026020001
80
N916026020001
CLAMP , Replaced By: N000000000667
80
N000000000667
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
83
A0019951665
CLAMP PIPE LINE TO BODY
86
A0004291040
BRACKET PIPE LINE TO BODY
89
A0019881581
FASTENER BUTTON ELECTRIC CABLE TO FIRE WALL
92
A0019978390
LOOM TIE LINE MOUNTING 280 MM
999
A0008325623
HOSE
999
A0008325723
HOSE
999
A0008360438
COVER
