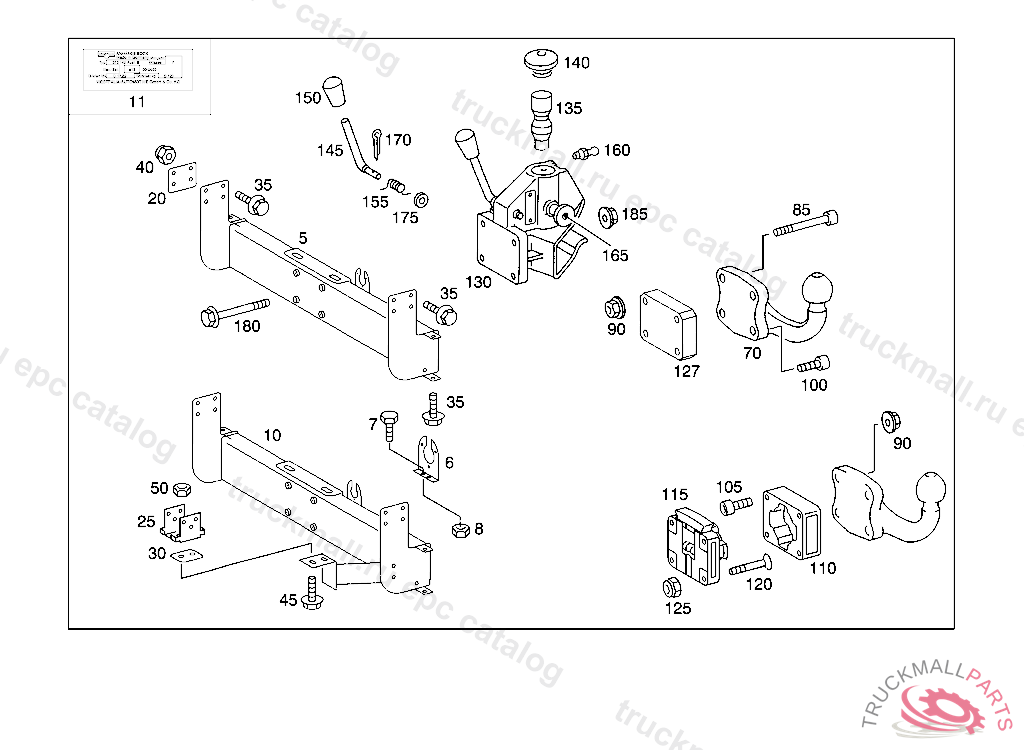

Поз.
Артикул
Описание
5
CROSS MEMBER (PARTS KIT),REAR CROSS MEMBER
6
BRACKET TRAILER PLUG SOCKET
7
SCREW COVER PLATE TO COVER PLATE M 6 X 12
8
NUT SPRING-LOADED PUSH ROD
10
CROSS STRUT REAR CROSS MEMBER
20
PLATE 0
25
BRACKET
30
BASE PLATE AT BRACKET
35
HEXAGON HEAD BOLT. SCREW RUBBER BUFFER TO SUPPORT M 12X90
40
NUT BRACKET TO SIDE MEMBER M12X1.5
45
SCREW AT FRAME
50
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
70
TRAILER COUPLING
85
CAP BOLT DEFLECTION PULLEY ON CYLINDER CRANKCASE
90
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
105
CAP BOLT. SCREW BELT TIGHTENER TO SUPPORT M10X50,*0211352
110
PLATE
115
PLATE WITH COVERING CAP 3,25T
120
SCREW BASE PLATE TO TRAILER COUPLING
120
SCREW. BOLT PLATE TO CROSS MEMBER
125
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
130
TRAILER COUPLINGROCKINGER TYP 243U115EA
135
COUPLING PINROCKINGER TYP 243 U115 EO/EK
140
COVERROCKINGER TYP 243 U115 EA/EL
145
LEVER
150
HANDLE
155
SPRINGROCKINGER TYP 243 U115 EO/EK
160
GREASE NIPPLEROCKINGER
165
LOCK
170
COTTER PIN STRAP TO BRACKET
175
WASHER BRACKET TO AIR INTAKE SCOOP
180
HEXAGON HEAD BOLT BRACKET MOUNTING M10X100
185
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
