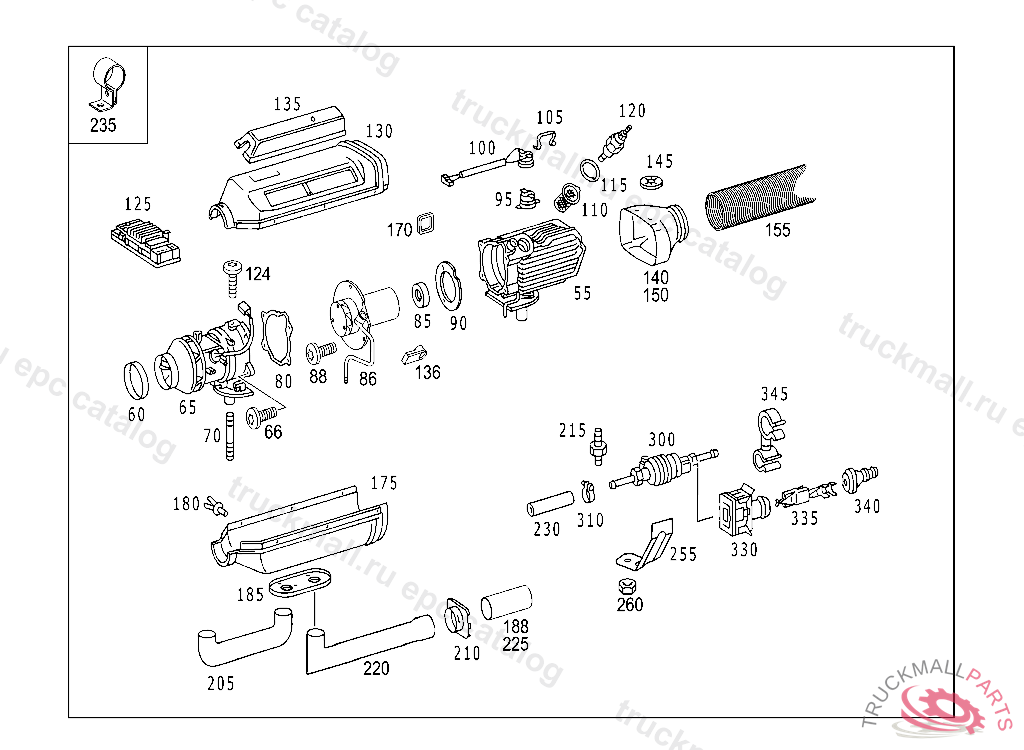

Поз.
Артикул
Описание
55
HEAT EXCHANGER ,P 753730
55
HEAT EXCHANGER
60
GRILLE ,P 753730
65
BLOWER ,P 753730
65
BLOWER MOTOR , R 38200220020311
66
BOLT
70
STUD BLOWER, PART IS ONLY VALID FOR D3LC COMPACT AIR HEATER (MAKE EBERSPAECHER) CAUTION: OBSERVE PART OF TEXT IN FDOC
80
SEAL BETWEEN HEAT EXCHANGER AND BLOWER
80
SEAL HEAT EXCHANGER,P 753730
85
SEAL ,P 753730
86
PIPELINE COMBUSTOR
88
BOLT CONTROL UNIT TO BRACKET
90
SEAL , R 38200220020311
90
SEAL COVER,P 753730
95
SWITCH OVERHEATING, PART IS ONLY VALID FOR D3LC COMPACT AIR HEATER (MAKE EBERSPAECHER) CAUTION: OBSERVE PART OF TEXT IN FDOC
100
TEMPERATURE SENSOR HEAT EXCHANGER TEMPERATURE SENSOR, PART IS ONLY VALID FOR D3LC COMPACT AIR HEATER (MAKE EBERSPAECHER) CAUTION: OBSERVE PART OF TEXT IN FDOC
100
TEMPERATURE SENSOR , R 38200220020311538200220020311
105
SPRING HEAT EXCHANGER TEMPERATURE SENSOR
105
CLAMP
110
FILTER ,P 753730
110
PROTECTIVE GRILLE , R 38200220020311 V 00000120020328
115
SEAL , PART IS ONLY VALID FOR D3LC COMPACT AIR HEATER (MAKE EBERSPAECHER) CAUTION: OBSERVE PART OF TEXT IN FDOC
120
HEATER PLUG
120
HEATER PLUG
124
BOLT
125
CONTROL UNIT , R 38200220020311538200220020311
125
CONTROL UNIT , R 38200120020311
125
CONTROL UNIT , R 38200220020311, Replaced By: A0014461529
130
COVERING TOP,P 753730
130
SHELL TOP, R 38200220020311538200220020311
135
CAP , Replaced By: A0008310729
136
GROMMET TO HEAT EXCHANGER
140
SCOOP MAIL VEHICLES
145
LOCK PLATE CONSOLE TO REAR PANELLING,TOP
150
SCOOP60 MM
155
FLEXIBLE METAL TUBE SCOOP
170
GROMMET LOWER PART
175
SHELL , R 38200220020311
175
COVERING BOTTOM
180
RIVET
185
SEAL FLANGE,P 753730
185
SEAL SHELL, BOTTOM
188
PIPE LINE , P 753731 R 000001
205
INTAKE PIPE
210
PIPE SOCKET ,P 753730
215
BUFFER WIPER MOTOR TO REAR PANEL DOOR, ONLY FOR AUSTRALIA CODE 625
220
PIPELINE
225
HOSE
230
PLASTIC PIPE FUEL SYSTEM 6X2 MM, ORDER BY THE METER
235
CLAMP PROTECTIVE TUBE TO CAB
255
BRACKET METERING PUMP
260
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
300
PUMP METERING PUMP, P 753731 R 000001
300
PUMP
310
HOSE CLAMP. CLAMP , P 753731 R 000001
330
PLUG INJECTION VALVE
335
CONTACT SPRING LESS DETENT,BUT WITH CATCH FOR HOUSING 0.5-1.0MM2,126372
340
CAP. BOOT ,126372
345
BRACKET OIL LINES
