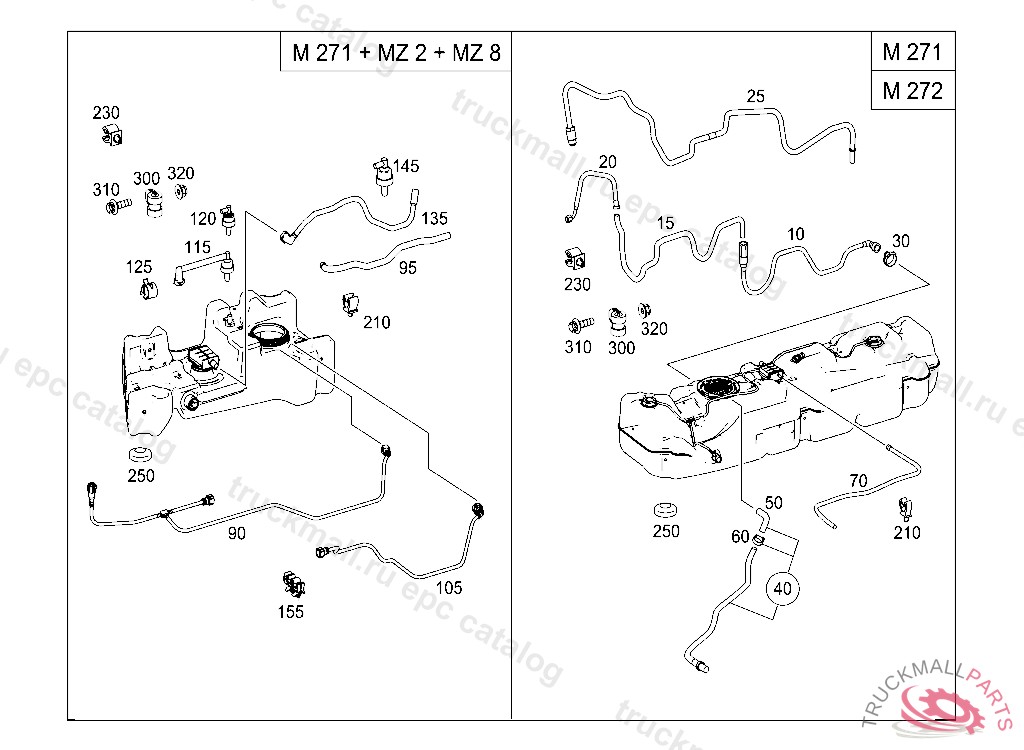

Поз.
Артикул
Описание
10
FEED LINE AT TANK
15
LINE FEED
15
FUEL FEED LINE
20
FUEL FEED LINE FRONT FEED LINE, N 31383420060929
20
LINE FRONT FEED LINE
20
LINE FRONT INLET, 27349620060907
25
LINE FEED
30
LOOM TIE , A 358832 EXCEPT FOR A 331465 - A 358832 WITH CODE 057
30
CLAMP HOSE TO PARTICULATE FILTER, A 09774720090113
40
SUCTION LINE ADDITIONAL HEATER
50
MOLDED HOSE
60
CLAMP HOSE TO PARTICULATE FILTER, A 09774720090113
60
LOOM TIE , A 358832 EXCEPT FOR A 331465 - A 358832 WITH CODE 057
70
FUEL LINE DIAGNOSIS OBD
90
FUEL FEED LINE AT TANK
105
FUEL FEED LINE AT TANK
115
VENT LINE AT TANK
120
VALVE BREATHER LINE,K 169122
120
VALVE BREATHER LINE,K 169122
125
CLAMP14 MM
135
VENT LINE AT TANK
145
VALVE BREATHER LINE,K 169122
145
VALVE BREATHER LINE,K 169122
155
LINE HOLDER FUEL LINE
210
LINE FASTENER FEED LINE FASTENING
230
LINE FASTENER FEED LINE FASTENING
250
GROMMET ANT-CHAFE PROTECTION TO LONGITUDINAL MEMBER
300
CLAMP IDLING ADJUSTMENT WIRE CABLE,K 147121
310
HEXALOBULAR BOLT GROUND CABLE TO GENERATOR M6X20
320
NUT BRACKET TO BODY SHELL M6
