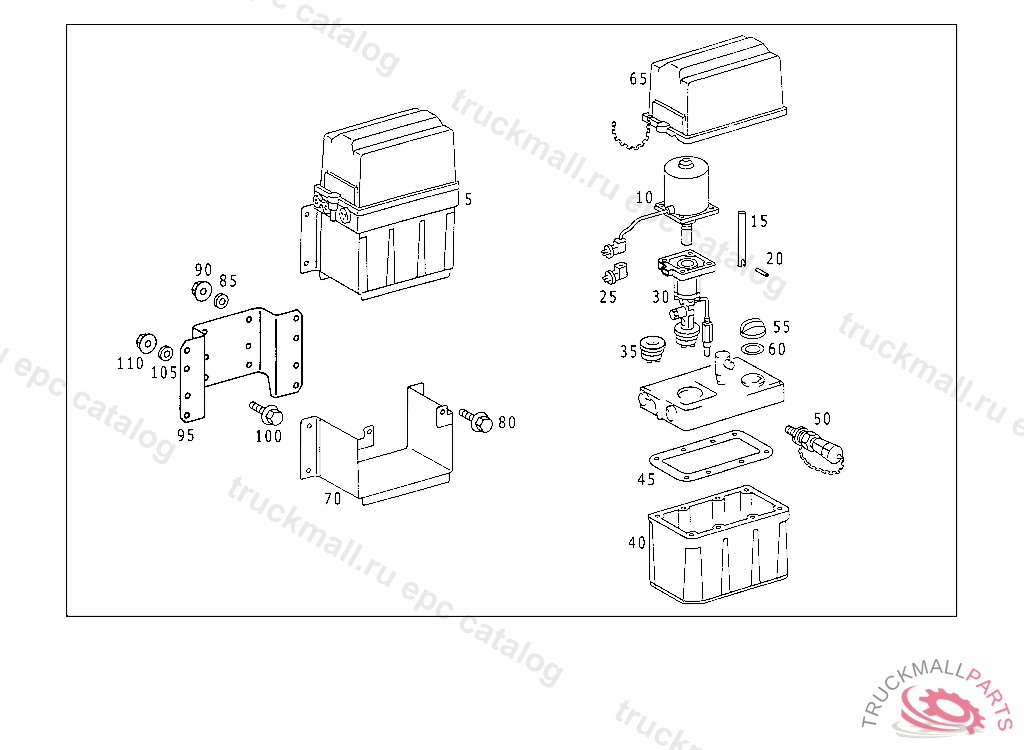

Поз.
Артикул
Описание
5
PUMP WITH FILLER CAP BEKA-MAX
5
PUMP , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A0005719501
10
ELECTRIC MOTORBEKA-MAX,TO 000 571 46 01, 54 01
10
ELECTRIC MOTOR , Replaced By: A0005402488
15
SHAFT
15
SHAFT , Replaced By: A0005710135
20
CLAMPING PIN2X12 MM
25
PLUG NOT CONFORMING TO DANGEROUS GOODS TRAFFIC REGULATIONS (GGVS)
30
SUCTION PIPE WITH GEARED PUMP BEKA-MAX,TO 000 571 4601, 5401
30
SUCTION PIPE , Replaced By: A0005700256
35
PUMP WITH GEAR BEKA-MAX
35
PUMP , Replaced By: A0005719401
40
RESERVOIR PUMP BEKA-MAX
40
RESERVOIR , Replaced By: A0005700204
45
GASKETBEKA-MAX
45
SEAL RING , Replaced By: A0005710780
50
VALVE GREASE FILLING BEKA-MAX
50
VALVE , Replaced By: A0005711614
55
COVER GREASE FILLING
60
GASKET
65
COVER , Replaced By: A0005711703
70
RETAINING PLATE PUMP VOGEL,TO 000 571 54 01,70 01
80
SCREW STOP TO BATTERY CASE
85
WASHER PUMP TO CONSOLE
85
WASHER EXHAUST MUFFLER TO STRAP
90
NUT ENGINE MOUNTING M8
95
CONSOLE CENTRAL LUBRICATION PUMP TO SUBSTRUCTURE AND TO SUPPORT,RESP.
95
CONSOLE PUMP TO FRAME SIDE MEMBER
100
HEXAGON HEAD BOLT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER M14X1.5X40
100
HEXAGON HEAD BOLT BRACKET TO BRACKET M10X35
100
SCREW GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
105
WASHER SUPPORT TO SIDE MEMBER
105
WASHER BRACKET TO COVERING
105
WASHER RADIATOR TO RUBBER MOUNTING
110
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
