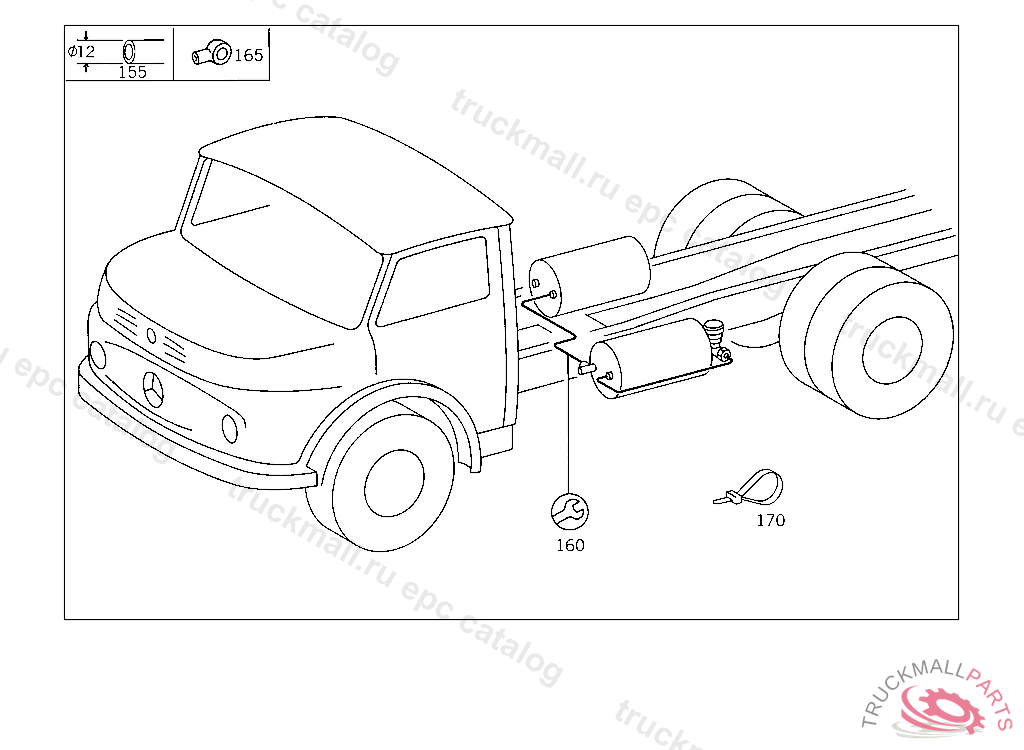

Поз.
Артикул
Описание
155
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
155
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
155
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
155
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
155
HOSE , Replaced By: A0009872827
160
FITTING (PARTS KIT),LINE RUPTURE
160
FITTING , Replaced By: A0029906171
165
BANJO UNION HOSE WIDTH, / I.D., 9/16 MM
165
BANJO UNION , Replaced By: N915052009009
170
LOOM TIE LINE MOUNTING 280 MM
170
LOOM TIE LINE MOUNTING
999
SLEEVE LEAK LINE
999
BANJO UNION HOSE WIDTH, / I.D., 6/16 MM
999
BANJO UNION HOSE WIDTH, / I.D., 6/12 MM
999
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
999
UNION NUT
999
NUT , Replaced By: N910113010000
999
NUT , Replaced By: N913004008001
999
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
999
NUT STRAP TO BRACKET
999
RING , Replaced By: A0005830296
999
SCREW PIPE CLAMP
999
FITTING , Replaced By: A0019972372
999
NUT CHECK VALVE TO AIR RESERVOIR
999
ELBOW FITTING CHECK VALVE TO AIR RESERVOIR
999
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
999
FITTING , Replaced By: A0019909871
999
FITTING AT LEFT SIDE MEMBER,4 347260
999
GLAND , Replaced By: A0019901667
999
NUT BALL PIVOT TO LEVER
999
SCREW STRAP TO SUPPORT,5 433389
999
SCREW , Replaced By: N304017008021
999
WASHER
999
SCREW PROTECTION PLATE TO BRACKET
999
CLAMP DELIVERY AND SUCTION LINES TO STEERING
999
CLAMP , Replaced By: A6739950001
999
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, TOP
999
BASE STRAP
999
BRACKET AIR RESERVOIR
999
BRACKET AIR DEHYDRATOR
999
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT, TO BE ADAPTED DURING ASSEMBLY
999
BASE AIR RESERVOIR TO CONSOLE
999
PLATE CONSOLE TO SIDE MEMBER
999
RESERVOIR ,5 936755, Replaced By: A0034322701, +002A0009970934
999
CONSOLE , Replaced By: A3224320215, +002N913004012000
999
RESERVOIR , Replaced By: A3454308205
999
BRACKET LINE MOUNTING
999
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
999
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
999
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
999
FITTING , Replaced By: A0029905971
999
FITTING (PARTS KIT),LINE RUPTURE
999
ELBOW FITTING FROM PUMP TO CYLINDER, Replaced By: N000000006197
999
FITTING AIR RESERVOIR,CONNECTIONS: "10,20"
999
T-FITTING AIR RESERVOIR,CONNECTION: "13"
999
SEAL CONE
999
SPRING
999
VALVE , Replaced By: A0024297244
999
VALVE , Replaced By: A0024297244
999
VALVE , Replaced By: A0014296144
999
PLASTIC PIPE RISING PIPE 4X6 MM
999
SLEEVE , Replaced By: A0007630553
999
REPAIR KITTO 000 429 63 44,000 429 59 44
999
VALVE , Replaced By: A0004320807
999
VALVE , Replaced By: A0014294144
999
VALVE
999
ELBOW FITTING PRESSURE REGULATOR,CONNECTION "1"
999
LINE , Replaced By: A0005516456
999
VALVE
999
LINE , Replaced By: A0005516256
