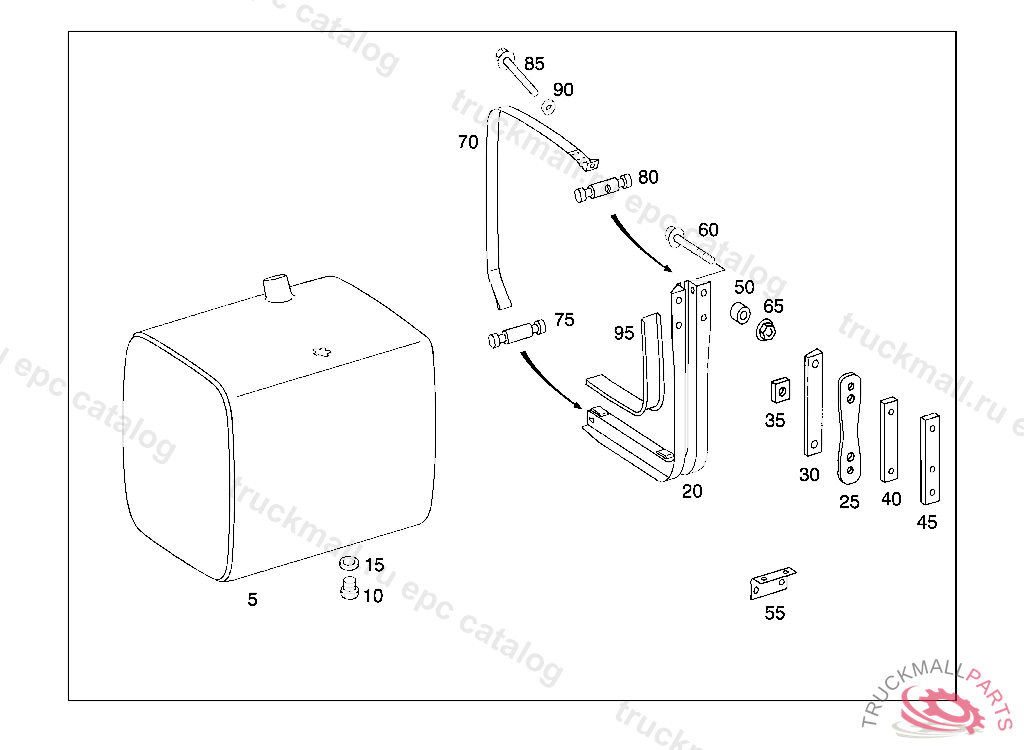

Поз.
Артикул
Описание
5
FUEL TANK TO BE MOUNTED ON THE LEFT 400 L
5
FUEL TANK TO BE MOUNTED ON THE RIGHT 400L
5
FUEL TANK ALUMINUM 400L
5
FUEL TANK ALUMINUM 400L
10
SCREW PLUG FUEL TANK
15
SEAL RING CLUTCH BOOSTER
20
SUPPORT FUEL TANK TO FRAME
20
SUPPORT FUEL TANK TO FRAME
20
SUPPORT FUEL TANK TO FRAME
25
PAD LATERAL UNDERRUN PROTECTION
30
SHIM MOUNTING PARTS
35
SHIM MOUNTING PARTS 7MM
40
SHIM MOUNTING PARTS 30MM
40
SHIM SUPPORT TO FRAME 6MM
40
SHIM MOUNTING PARTS 10 MM
40
SHIM MOUNTING PARTS 20MM
45
SHIM MOUNTING PARTS 25MM
50
BUSHING MOUNTING PARTS, TO BE ADAPTED DURING ASSEMBLY
55
BRACKET MOUNTING PARTS
60
HEXAGON HEAD BOLT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER M14X1.5X40
60
HEXAGON HEAD BOLT. SCREW SUPPORT TO FRAME M14 X 1.5 X 65
60
HEXAGON HEAD BOLT SUPPORT TO FRAME M14X1.5X120
60
HEXAGON HEAD BOLT. SCREW GUSSET PLATE TO FRAME M14 X 1.5 X 70
60
HEXAGON HEAD BOLT. SCREW SUPPORT TO SIDE MEMBER M 14X1.5X50
60
HEXAGON HEAD BOLT. SCREW CONSOLE TO CAB, FOR USE WITH SHORT VERSION OF MERCEDES-BENZ CAB5 251746
60
HEXAGON HEAD BOLT. SCREW BRACKET TO CONSOLE
60
HEXAGON HEAD BOLT. SCREW SPACER TUBE BETWEEN STABILIZER SHACKLES M14X1,5X80,D 228766
60
HEXAGON HEAD BOLT BRACKET TO SPRING SADDLE M14X1.5X110
65
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
70
STRAP FUEL TANK TO CONSOLE
70
STRAP FUEL TANK TO CONSOLE
75
PIN STRAP TO SUPPORT 16X80 MM
80
PIN STRAP TO SUPPORT 25X80 MM
85
HEXAGON HEAD BOLT. SCREW RUBBER BUFFER TO SUPPORT M 12X90
85
HEXAGON HEAD BOLT. SCREW THROTTLE HOUSING TO FRONT EXHAUST PIPE M 12X70
90
WASHER
95
PAD FUEL TANK TO SUPPORT, ORDER BY THE METER
