Поз.
Артикул
Описание

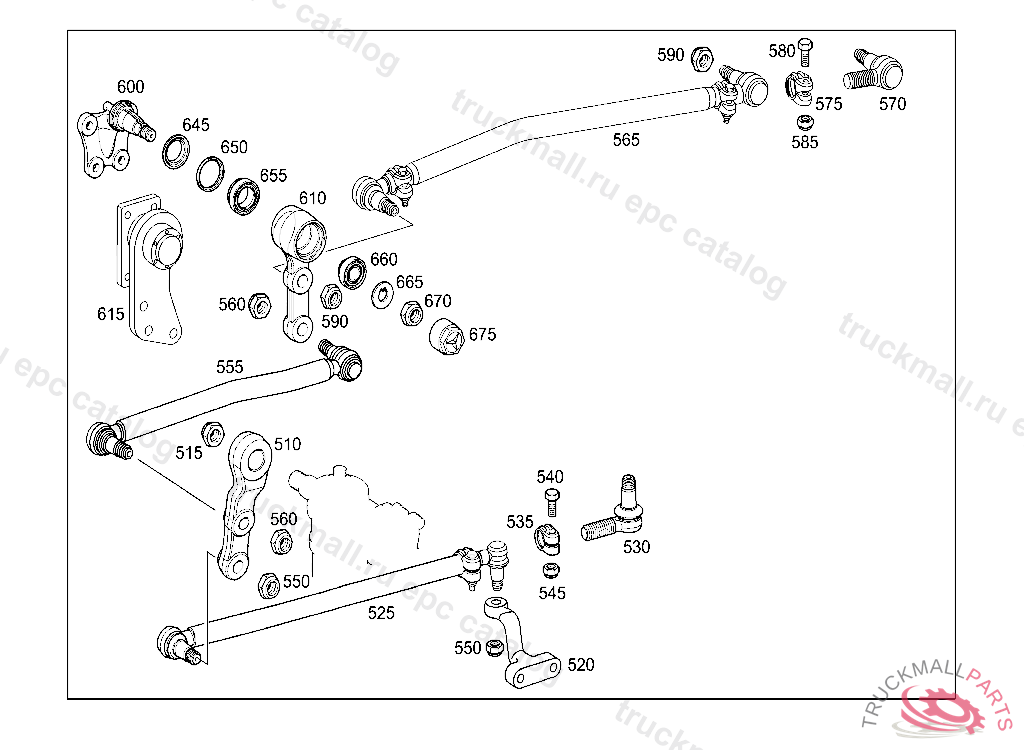

510
PITMAN ARM STEERING GEAR
515
NUT PITMAN ARM TO STEERING BOX ASSEMBLY
520
STEERING ARM LEFT STEERING KNUCKLE
525
DRAG LINK FROM PITMAN ARM TO FRONT AXLE I
530
DRAG LINK ENDEHRENREICH
535
CLAMP DRAG LINK END TO DRAG LINK LEMFOERDER, TO 002 460 14 05, 15 05,K 226468
540
SCREW STRUT TO FRAME M 12X62
540
SCREW LEFT AND RIGHT BEARING BRACKETS TO CAB
545
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
550
NUT DRAG LINK TO LEVER
555
DRAG LINK FROM PITMAN ARM TO INTERMEDIATE LEVER I TRW, REPAIR IMPOSSIBLE, Replaced By: A0034603105
555
DRAG LINK FROM PITMAN ARM TO FRONT AXLE I, REPAIR IMPOSSIBLE
560
NUT DRAG LINK TO LEVER
565
DRAG LINK FROM INTERMEDIATE LEVER I TO INTERMEDIATE LEVER II
565
DRAG LINK FROM INTERMEDIATE LEVER I TO INTERMEDIATE LEVER II
565
DRAG LINK FROM INTERMEDIATE LEVER I TO INTERMEDIATE LEVER II
565
DRAG LINK FROM STEERING INTERMEDIATE BRACKET II TO FRONT AXLE II
570
DRAG LINK END R.H. THREAD
570
DRAG LINK END R.H. THREAD
570
DRAG LINK END L.H. THREAD
570
DRAG LINK END R.H. THREAD
570
DRAG LINK END R.H. THREAD
575
CLAMP DRAG LINK END TO DRAG LINK EHRENREICH
580
SCREW STRUT TO FRAME M 12X62
585
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
590
NUT DRAG LINK END M 24X1.5
600
STEERING SUPPORT STEERING INTERMEDIATE BRACKET "I"
610
STEERING INTERMEDIATE ARM STEERING INTERMEDIATE BRACKET "I"
615
STEERING BRACKET STEERING INTERMEDIATE ARM "II"
645
SEAL RING INSIDE
650
SEAL RING OUTSIDE
655
TAPERED ROLLER BEARING INSIDE
660
TAPERED ROLLER BEARING OUTSIDE
665
THRUST WASHER INTERMEDIATE LEVER TO STEERING SUPPORT
670
COLLAR NUT F SHAFT INTERMEDIATE LEVER TO STEERING SUPPORT
675
HUB CAP STEERING INTERMEDIATE BRACKET
