Поз.
Артикул
Описание

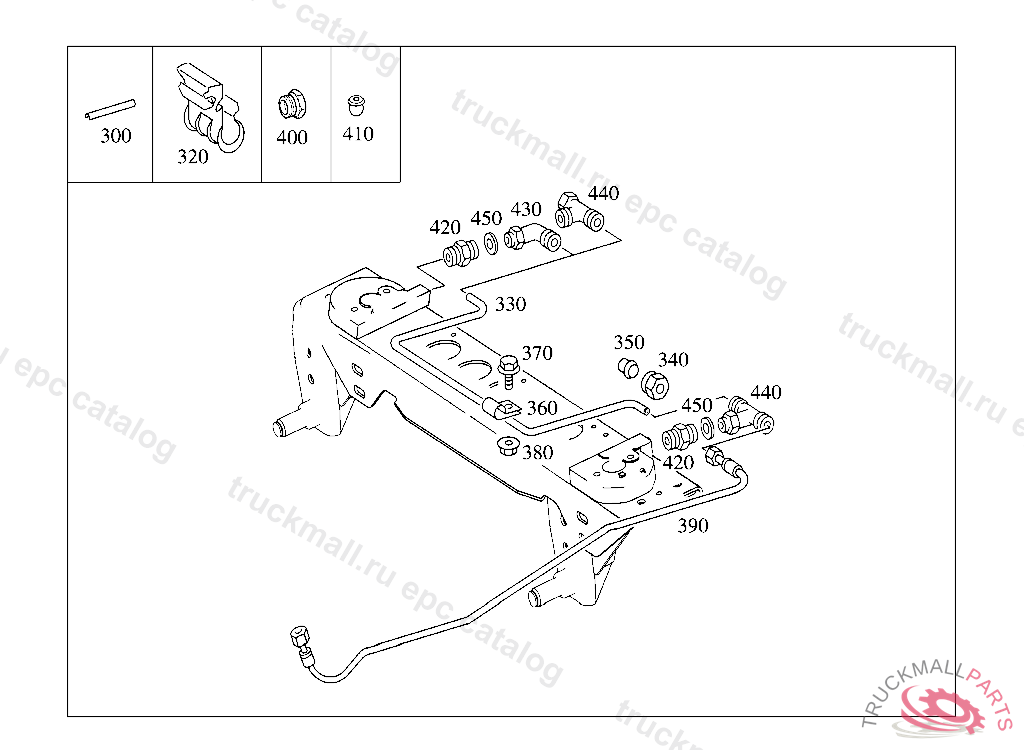

300
300
EDGE GUARD SECTION AT SHOCK ABSORBER BRACKET, ORDER BY THE METER
300
EDGE GUARD SECTION AT LEFT SIDE MEMBER 85 MM
320
330
330
HOSE FROM HAND PUMP TO HYDRAULIC CYLINDER
330
LINE FROM FITTING TO VALVE 6X1 MM, LENGTH AVAILABLE 3000 MM
340
UNION NUT
350
GLAND , Replaced By: A0019901667
350
SEAL CONE
360
CLAMP SENSOR CABLE TO FRONT AXLE
370
SCREW PUMP TO BRACKET
380
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
380
NUT BRACKET TO FIRE WALL
390
390
400
410
PLUG TO PLUG THE BORES
420
SCREW FITTING RETARDER CONNECTION
420
SCREW CONNECTION SENDER UNIT
420
FITTING , Replaced By: A0039972072
420
FITTING AIR RESERVOIR,CONNECTION: "52",K 093236, Replaced By: N000000006190
430
ELBOW FITTING FROM PUMP TO CYLINDER, Replaced By: N000000006197
430
FITTING , Replaced By: A0019909871
440
T-FITTING SPRING LOAD ACCUMULATOR BRAKE CYLINDER CONNECTION "1"
440
T-FITTING EXHAUST-BRAKE POWER CYLINDER
440
T-FITTING. FITTING AT INJECTION PUMP
440
FITTING , Replaced By: A0019900170
450
SEAL RING LINE CONNECTION
999
CABLE TIE. BRACKET ELECTRIC CABLE TO ALTERNATOR 151 MM
999
CABLE STRAP ELECTRIC CABLE TO FIRE WALL 300X5.0MM
