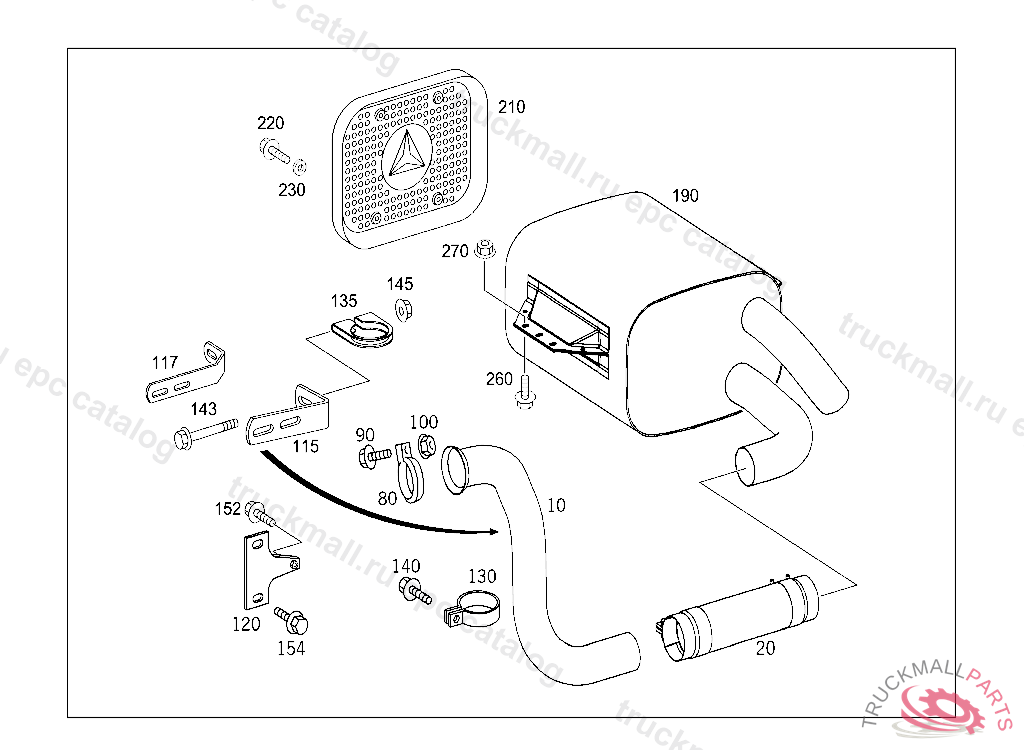

Поз.
Артикул
Описание
10
10
20
FLEXIBLE METAL TUBE CONNECTION OF EXHAUST PIPES WITH EACH OTHER, FOR COMPONENT PARTS SEE SPARE PARTS LIST, Replaced By: A9704900565
20
WRAPPED TUBING CONNECTION OF EXHAUST PIPES WITH EACH OTHER
80
CLAMP FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR
90
SCREW. HEXAGON HEAD BOLT , Replaced By: N910143008005
90
HEXALOBULAR BOLT. SCREW MANUAL PUMP BRACKET TO FENDER BRACKET
100
NUT HORN TO BRACKET M8
115
BRACKET FRONT EXHAUST PIPE TO THROTTLE HOUSING
117
120
130
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
135
CLAMP REAR EXHAUST PIPE TO MUFFLER
135
CLAMP FRONT EXHAUST PIPE ON INTERMEDIATE PIPE 77 MM
140
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M8X35
140
SCREW CLAMP ON BRACKET
143
HEXALOBULAR BOLT. SCREW FRONT EXHAUST PIPE TO BRACKET M 8X120
143
SCREWM8X120,D 250888 NOT USED
145
NUT HORN TO BRACKET M8
152
SCREW SHIFT LEVER TO BRACKET M8X30
152
SCREW. HEXALOBULAR BOLT MOUNTING FRAME TO SUPPORT M 8X30
154
SCREW EXHAUST PIPE,FRONT,ON FLYWHEEL HOUSING
154
HEXAGON HEAD BOLT. SCREW BRACKET TO TRANSMISSION M 16X25
190
EXHAUST MUFFLER STANDARD VERSION 75 MM
190
210
220
SCREW , Replaced By: N914146006102
220
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
230
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
260
HEXALOBULAR BOLT BRACKET TO BRACKET M 10X30
260
HEXAGON HEAD BOLT RESONATOR TO TRANSMISSION CASE,K 138633
270
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
