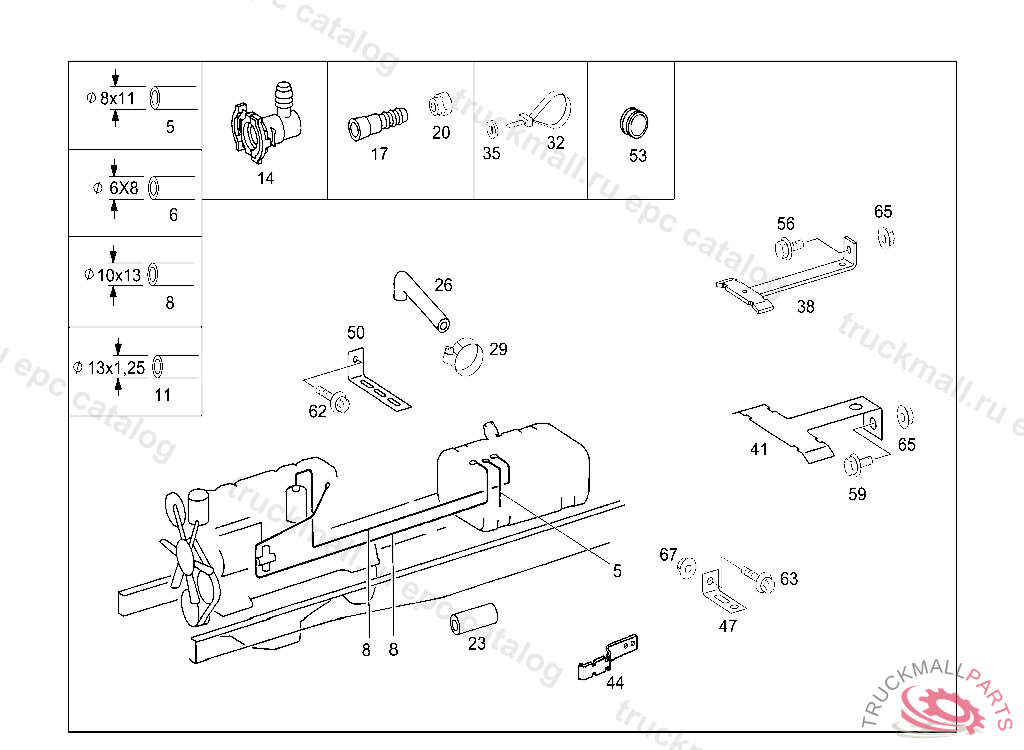

Поз.
Артикул
Описание
5
HOSE FEED & RETURN 8X11MM, ORDER BY THE METER
6
PLASTIC PIPE AERATION, ORDER BY THE METER
6
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
8
HOSE FEED & RETURN 13X1.5 MM, ORDER BY THE METER
11
HOSE FEED LINE AND RETURN LINE 10,5X13 MM, ORDER BY THE METER
14
FITTING
17
FITTING
17
CONNECTOR LINE CONNECTION
20
UNION NUT RETURN LINE
23
HOSE VIOLET
23
HOSE WITHE
23
HOSE GREEN
26
HOSE FUEL LINE TO RETURN CONNECTION
29
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
29
CLAMP FROM FILTER TO ENGINE DIAM. 22 MM
32
CABLE TIE IONIC EXCHANGER 380X7.8MM
32
CABLE TIE. LOOM TIE CABLE TO ALTERNATOR
32
LOOM TIE COMPRESSED AIR LINE MOUNTING 381 MM
32
LOOM TIE LINE MOUNTING 280 MM
32
LOOM TIE LINE MOUNTING
32
CABLE TIE310X5MM
32
CABLE TIE. LOOM TIE378 X 7.6 MM
35
SPACER WASHER LINE MOUNTING
35
WASHER BRACKET TO LEFT SIDE MEMBER
38
BRACKET COMPRESSED AIR LINE TO CROSS MEMBER
44
BRACKET FUEL LINE
47
BRACKET , Replaced By: A3464296040
50
BRACKET OIL LINE MOUNTING
53
GROMMET BRACKET TO ALTERNATOR D 53 / 60
56
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBERM 12X1.5X30
56
HEXAGON HEAD BOLT RESONATOR TO TRANSMISSION CASE,K 138633
63
HEXAGON HEAD BOLT BRACKET TO SIDE MEMBER M12X1.5X35
65
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
65
NUT BRACKET TO SIDE MEMBER M12X1.5
67
NUT BRACKET TO SIDE MEMBER M12X1.5
