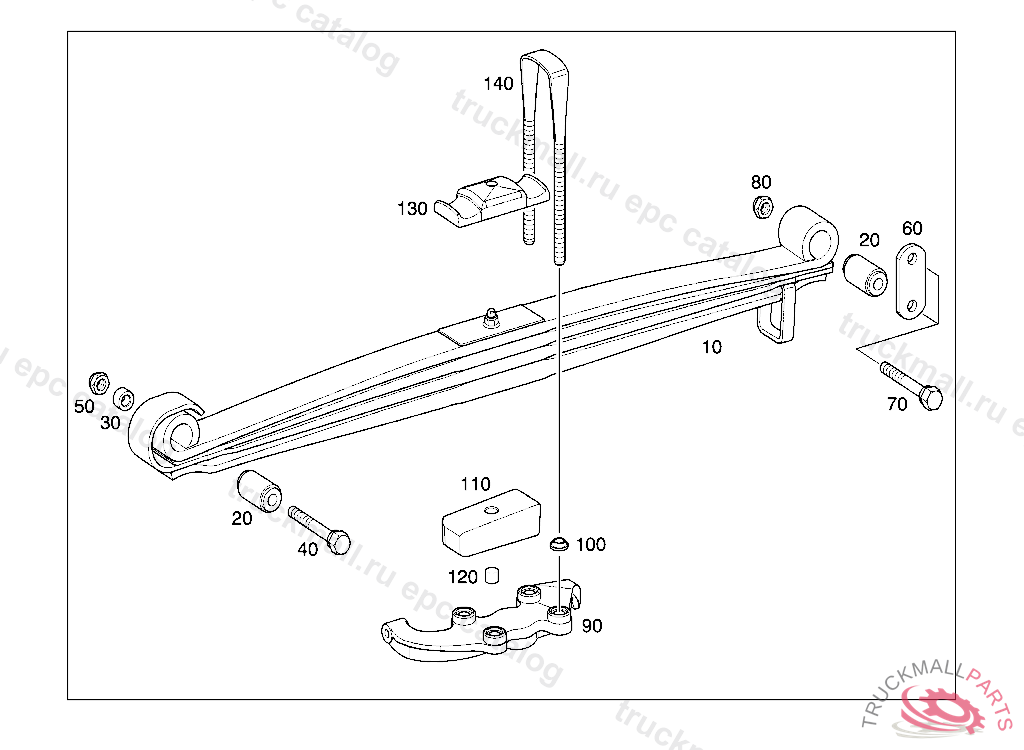

Поз.
Артикул
Описание
10
REAR SPRING (PARABOLIC SPRING),NUMBER OF LEAVES: "4"
20
RUBBER MOUNTING ,K 062675
20
RUBBER MOUNTING ,K 062675
20
RUBBER MOUNTING ,K 062675
20
RUBBER MOUNTING , Replaced By: A0003250285
30
BUSHING FRONT SPRING TO FRONT SPRING FRONT BRACKET
40
SCREW FRONT SPRING TO FRONT SPRING FRONT BRACKET M 24X180
50
NUT FRONT SPRING TO FRONT-SPRING REAR BRACKET
60
SHACKLE FRONT SPRING ON PIVOTED LEVER,REAR
60
SHACKLE THREADED
70
SCREW FRONT SPRING TO FRONT-SPRING REAR BRACKET M 24X140
80
NUT FRONT SPRING TO FRONT-SPRING REAR BRACKET
90
BRACKET TORSION BAR AND SHOCK ABSORBER,LEFT, NO.7390I I I I II
90
BRACKET TORSION BAR AND SHOCK ABSORBER,RIGHT, NO.7390I I I I II
100
SPHERICAL WASHER AIR-SPRING-BELLOWS SUPPORT TO REAR AXLE
110
SHIM REAR SPRING TO REAR AXLE, NO.7390I I I I II I
120
PIN BEARING BRACKET
130
SPRING CLAMPING PLATE REAR SPRING TO REAR AXLE, NO.7390I I I I II
140
U-BOLT REAR AXLE TO TO REAR SPRINGS 430 MM
999
REAR SPRING
999
REAR SPRING
