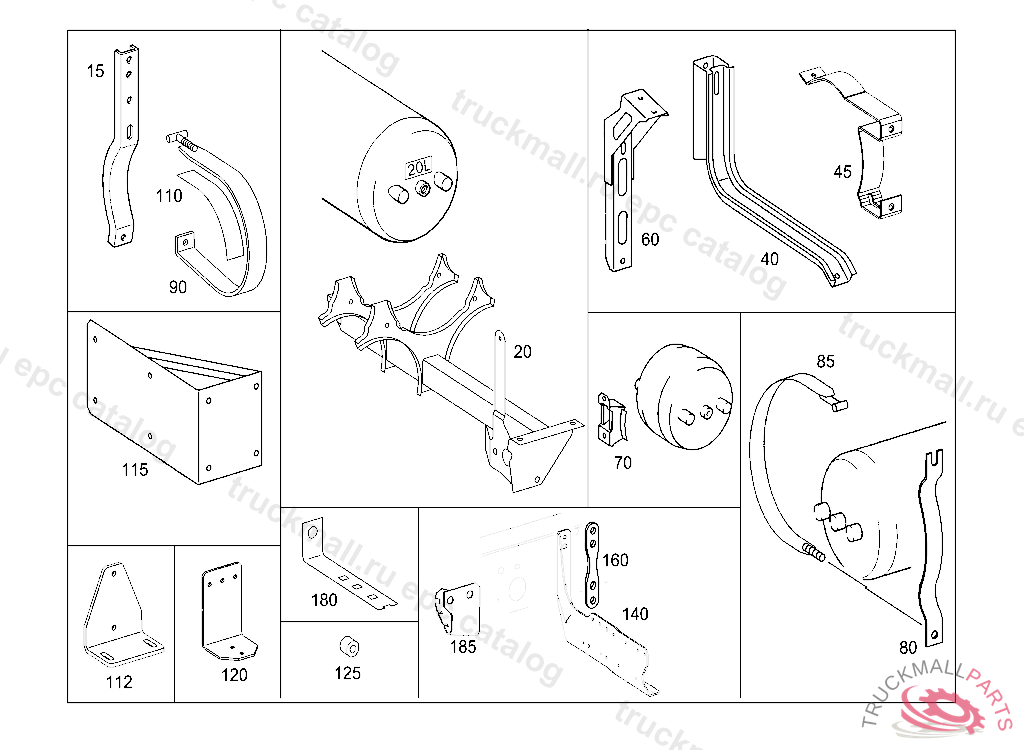

Поз.
Артикул
Описание
15
BRACKET , Replaced By: A9454320440
15
BRACKET AIR RESERVOIR
15
BRACKET AIR RESERVOIR
15
BRACKET AIR RESERVOIR TO APPARATUS SUPPORT
15
BRACKET EXHAUST PIPE SUSPENSION
20
BEAM AIR RESERVOIR
20
SUPPORT AIR RESERVOIR
40
CONSOLE AIR RESERVOIR TO SUPPORT
45
BRACKET AIR RESERVOIR TO FRAME
45
BRACKET AIR RESERVOIR TO LEFT SIDE MEMBER, INSIDE 20 L, NOT USED
45
BRACKET AIR RESERVOIR TO SUPPORT
45
BRACKET AIR RESERVOIR TO SUPPORT
60
BRACKET AIR RESERVOIR
70
BASE AIR RESERVOIR TO RIGHT SIDE MEMBER, INSIDE
80
BASE AIR RESERVOIR
85
STRAP AIR RESERVOIR TO BRACKET
85
STRAP AIR RESERVOIR TO BRACKET
85
STRAP AIR RESERVOIR TO BRACKET
85
STRAP PARTICLE FILTER
85
STRAP AIR RESERVOIR
85
STRAP AIR RESERVOIR TO BRACKET
90
STRAP AIR RESERVOIR TO RIGHT SIDE MEMBER, INSIDE
90
STRAP AIR RESERVOIR TO RIGHT SIDE MEMBER, INSIDE
110
ADHESIVE TAPE60 MM, ORDER BY THE METER
112
BRACKET MOUNTING PARTS
115
BRACKET MOUNTING PARTS
120
BRACKET MOUNTING PARTS
125
BUSHING RIGHT FRONT 43.3X40X17MM, TO BE ADAPTED DURING ASSEMBLY
125
BUSHING TOOL BOX TO FRAME, TO BE ADAPTED DURING ASSEMBLY
125
BUSHING MOUNTING PARTS, TO BE ADAPTED DURING ASSEMBLY
125
BUSHING MOUNTING PARTS, TO BE ADAPTED DURING ASSEMBLY
125
BUSHING MOUNTING PARTS, Replaced By: A4182420050
125
BUSHING MOUNTING PARTS, Replaced By: A9703220250
125
BUSHING MOUNTING PARTS, TO BE ADAPTED DURING ASSEMBLY
125
BUSHING MOUNTING PARTS, Replaced By: A3142420151
125
SPACER RING BRACKET AND BEARING BRACKET TO FRAME
140
SUPPORT UNDERRUN PROTECTION,RIGHT
160
PAD LATERAL UNDERRUN PROTECTION
180
BRACKET LINE MOUNTING
185
BRACKET LINE MOUNTING
999
SAFETY VALVE. VALVE PRESSURE RELIEF, REPAIR IMPOSSIBLE
999
ELBOW FITTING LINE CONNECTIONS
999
BRACKET AIR RESERVOIR TO FRAME
999
STRAP AIR RESERVOIR
999
SUPPORT LEFT REAR FENDER,IN FRONT OF REAR AXLE
999
STRAP AIR RESERVOIR
999
BRACKET AIR RESERVOIR
999
STRAP AIR RESERVOIR
