Поз.
Артикул
Описание
5

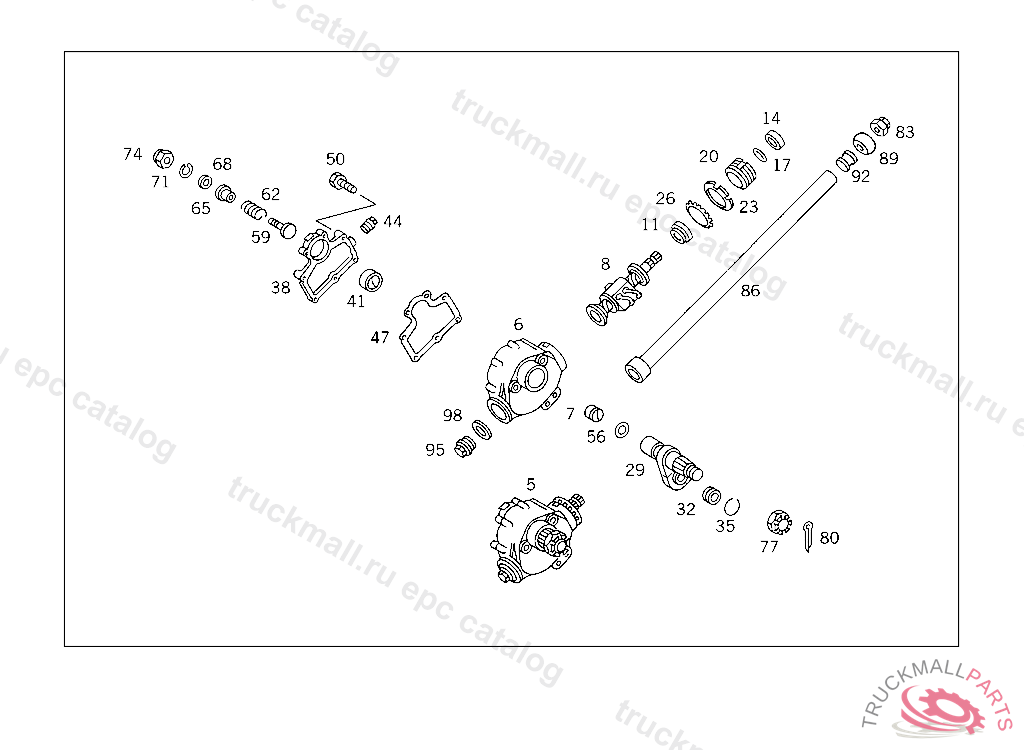

STEERING BOX ASSEMBLY , FOR BREAK-DOWN,SEE UNIT MICROFICHE,MODEL: 762.008
5
STEERING BOX ASSEMBLY , Replaced By: A3374601701
6
STEERING BOX STEERING
7
BUSHING47.1 MM
8
STEERING NUT
8
STEERING NUT , Replaced By: A4064600218
11
BARREL-TYPE BEARING , Replaced By: A3459817006
11
BARREL-TYPE BEARING STEERING WORM, FOR L.H.D. UP TO CHASSIS 422483 FROM CHASSIS SEE SPARE PARTS LIST 814
11
BARREL-TYPE BEARING
14
SEAL RING
17
SEAL RING
20
RING
23
GROOVED NUT
26
LOCK
29
STEERG. WORM SECTOR SHAFT
32
BALL CUP
35
SNAP RING STEERING SHAFT BEARING IN COVER, FOR L.H.D. UP TO CHASSIS 422483 FROM CHASSIS SEE SPARE PARTS LIST 814
38
STEERING BOX COVER STEERING BOX
41
BUSHING STEERING SHAFT BEARING IN COVER, FOR L.H.D. UP TO CHASSIS 422483 FROM CHASSIS SEE SPARE PARTS LIST 814
44
SCREW PLUG
47
GASKET
47
GASKET , Replaced By: A3524610180
50
SCREW , Replaced By: N000931008049
56
SEAL RING
56
SEAL RING
59
SCREW
62
SPRING
65
THRUST PIECE
68
THRUST WASHER
71
LOCK
74
NUT
95
SCREW PLUG STEERING BOX
95
SCREW PLUG OIL FILLING
98
SEAL RING OIL FILLING AND OIL DRAIN
