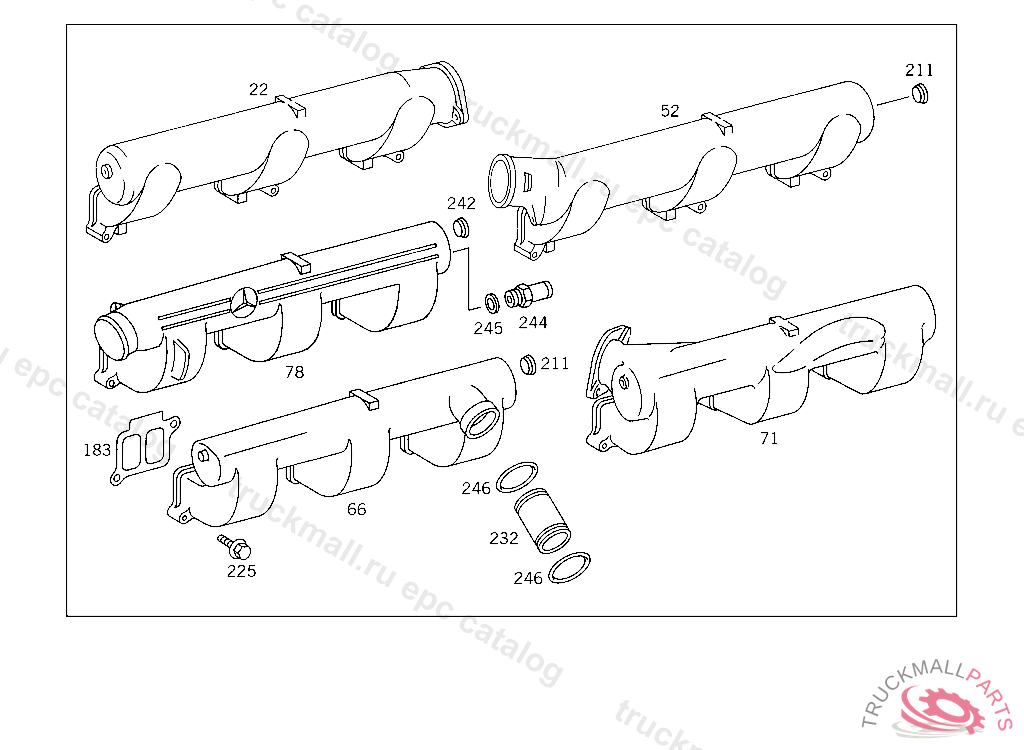

Поз.
Артикул
Описание
22
INTAKE MANIFOLD
52
MANIFOLD (CHARGING AIR ELBOW)
52
MANIFOLD (CHARGING AIR ELBOW)
52
MANIFOLD (CHARGING AIR ELBOW)
66
ELBOW
71
MANIFOLD (CHARGING AIR ELBOW)
71
MANIFOLD (CHARGING AIR ELBOW)
71
ELBOW , Replaced By: A3660981124
71
ELBOW , Replaced By: A3660981224
78
ELBOW (CHARGING AIR ELBOW)
78
ELBOW
78
ELBOW (CHARGING AIR ELBOW)
183
GASKET , Replaced By: A3661410880
183
GASKET , Replaced By: A3661410780
183
GASKET INTAKE MANIFOLD TO EXHAUST MANIFOLD
183
GASKET INTAKE MANIFOLD TO CYLINDER HEAD
211
SCREW PLUG BELL HOUSING
225
HEXAGON HEAD BOLT. SCREW ON STOP M 8X50
225
SCREW , Replaced By: N910105008019
232
CONNECTING PIPE TURBOCHARGER/CHARGE-AIR-ELBOW CONNECTION
232
CONNECTING PIPE TURBOCHARGER/CHARGE-AIR-ELBOW CONNECTION
232
CONNECTING PIPE
232
CONNECTING PIPE TURBOCHARGER/CHARGE-AIR-ELBOW CONNECTION
242
SCREW PLUG BELL HOUSING
244
FITTING INTAKE MANIFOLD
245
SEAL RINGTO 376 131 74 01
246
SEAL RING
246
SEAL RING TURBOCHARGER/CHARGE-AIR-ELBOW CONNECTION
246
SEAL RING , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE 355427YEAR OF MANUFACTURE 1994, Replaced By: A0219978648
246
SEAL RING , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE 355427YEAR OF MANUFACTURE 1994, Replaced By: A0219978448
246
SEAL RING , Replaced By: A0279977948
999
SUSPENSION EYE
999
ELBOW (CHARGING AIR ELBOW), NOT USED
999
ELBOW
999
ELBOW
999
INTAKE MANIFOLD
999
INTAKE MANIFOLD , NOT USED
999
INTAKE MANIFOLD
999
SUSPENSION EYE
999
SUSPENSION EYE , NOT USED
999
CHARGING AIR INTERCOOLER , NOT USED
999
CONNECTING PIPE FROM TURBOCHARGER TO CHARGING AIR ELBOW
999
INTAKE MANIFOLD
999
INTAKE MANIFOLD
999
GASKET
999
SUSPENSION EYE
999
WASHER , Replaced By: N000125008443
999
WASHER EXHAUST MUFFLER TO STRAP
999
SCREW PLUG OIL FILLING
999
SCREW PLUG
999
SCREW PLUG SOCKET TO BRACKET BEHIND CAB
999
SCREW SUPPORT TO SIDE MEMBER M 10X65,B 884219
999
SCREW SUPPORT TO MOUNTING PLATE,D 180260
999
NUT , Replaced By: N304032008006
999
NUT , Replaced By: N304032010002
999
SCREW CLUTCH OPERATION,4 282707
999
SCREW BRACKET TO CONSOLE
999
NUT
999
NUT
