Поз.
Артикул
Описание
5

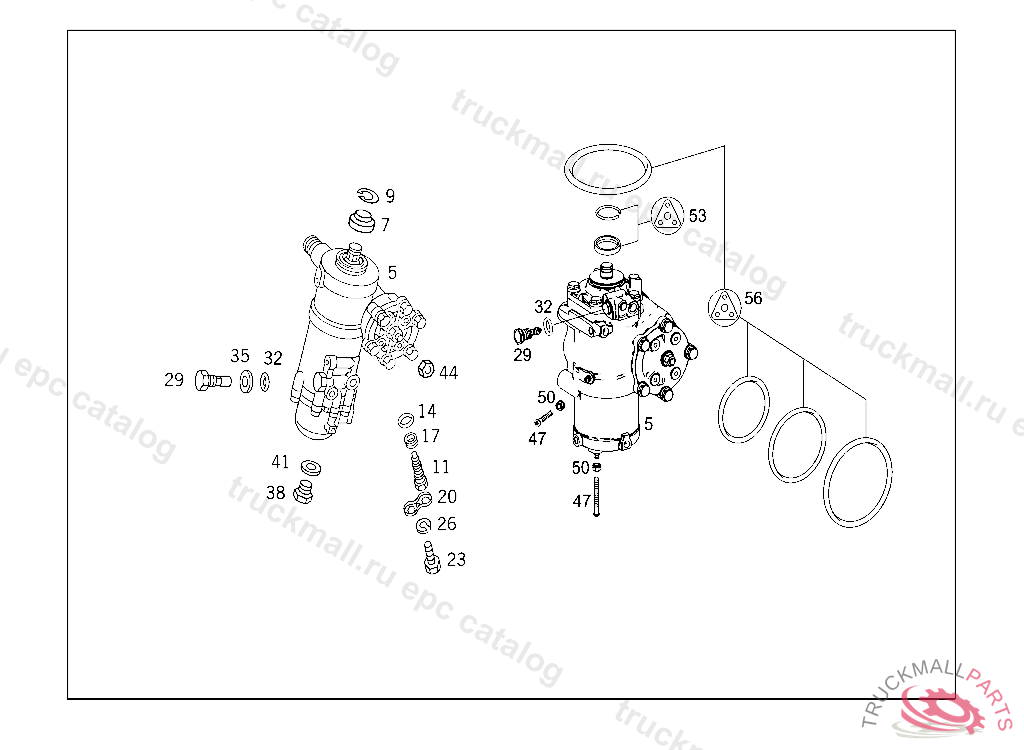

STEERING BOX ASSEMBLYLS 8, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
5
STEERING BOX ASSEMBLY FOR BREAK-DOWN,SEE UNIT STANDARD VERSIONMODEL: 765.889, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
7
SEAL RING STEERING BOX
9
LOCK REVERSE IDLER SHAFT
11
VALVE LIMITATION
14
SEAL RING FRONT
17
SEAL RING REAR
20
LOCK VALVE IN STEERING BOX
23
SCREW COVER PLATE TO COVER PLATE M 6 X 12
26
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
29
VALVE PRESSURE LIMIT 150 BAR, M 18X1,5
29
VALVE PRESSURE LIMIT 150BAR, CONTAINED IN PACK.CONTENTS OF: A6464602100
32
SEAL RING PRESSURE LIMIT
35
SEAL RING LINE CONNECTION
38
SCREW PLUG AIR DEHYDRATOR
38
SCREW PLUG 4/2-WAY VALVE
41
SEAL RING PNEUMATIC VALVE
44
NUT COVER TO STEERING BOX
