Поз.
Артикул
Описание
5

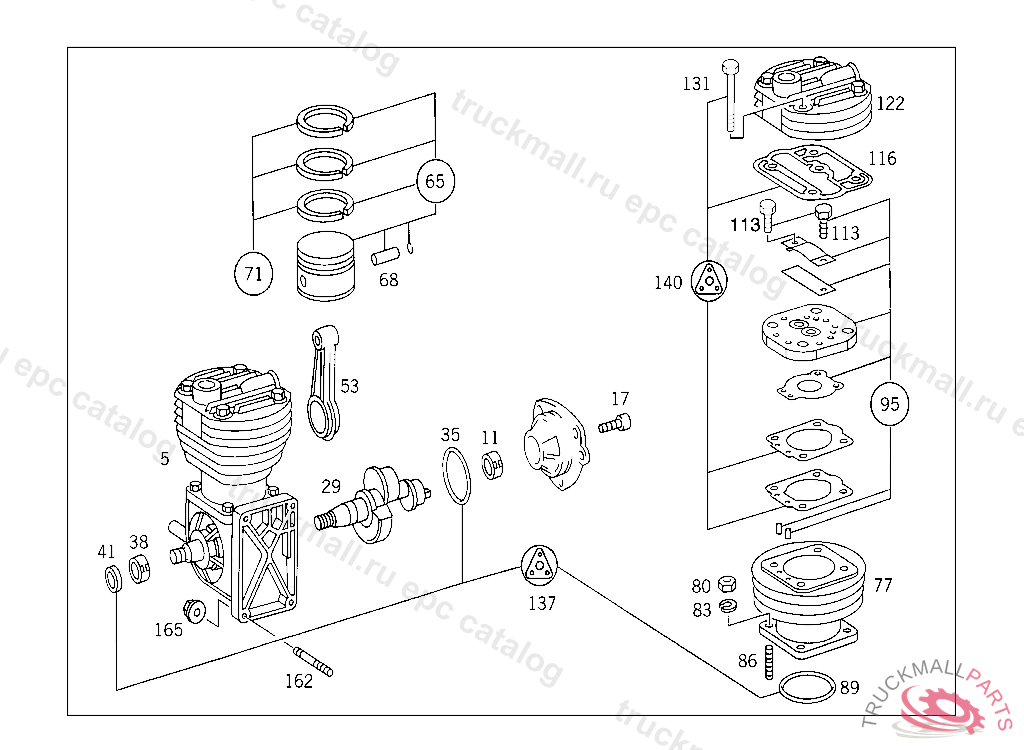

COMPRESSORKNORR 225CCM, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
11
BUSHING , Replaced By: A0001300632
11
BEARING CAPTO 376 131 74 01
17
SCREW STEERING SHAFT BEARING TO CAB
29
CRANKSHAFTTO 004 131 94 01
35
SEAL RINGTO 376 131 74 01
38
BEARING CAPTO 376 131 74 01
38
BUSHING , Replaced By: A0001300632
41
SEAL RING
41
SEAL RING , Replaced By: A0159972947
53
CONNECTING ROD LESS BEARING SHELLS TO 376 131 74 01
53
COMPRESSOR
65
PISTONTO 376 131 74 01
68
PISTON PIN
71
PISTON RING PARTS KIT
77
CYLINDER LINER
80
NUT
83
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
83
LOCK WASHER BRAKE LINE TO REAR AXLE, NOT USED
86
STUD SHIFT CASE M 8X18,475057
89
SEAL RING CRANKCASE,AIR COMPRESSOR
95
MOUNTING PLATE , Replaced By: A0001307120
95
VALVE PARTS KIT TO 004 131 03 01
113
SCREW FEED LINE AND RETURN LINE
116
GASKET VALVE DISC,CYLINDER COVER TO 002 131 36 01
122
CYLINDER HEADTO 004 131 74 01/94 01/95 01
131
SCREW FRONT AXLE REGULATING SOLENOID VALVE M 8X75
131
SCREW PLATE TO TRANSMISSION CASE M 8 X 70
137
GASKET KIT AIR COMPRESSOR
140
GASKET KIT DISC VALVE TO 004 131 03 01
162
STUD BOLT BRACKET TO CROSS MEMBER
165
NUT ENGINE MOUNTING M8
999
GROOVED PINTO 004 131 74 01/94 01/95 01
999
BRACKET AIR COMPRESSOR TO SUPPORT, FROM ENGINE 238226 YEAR OF MANUFACTURE 1992
