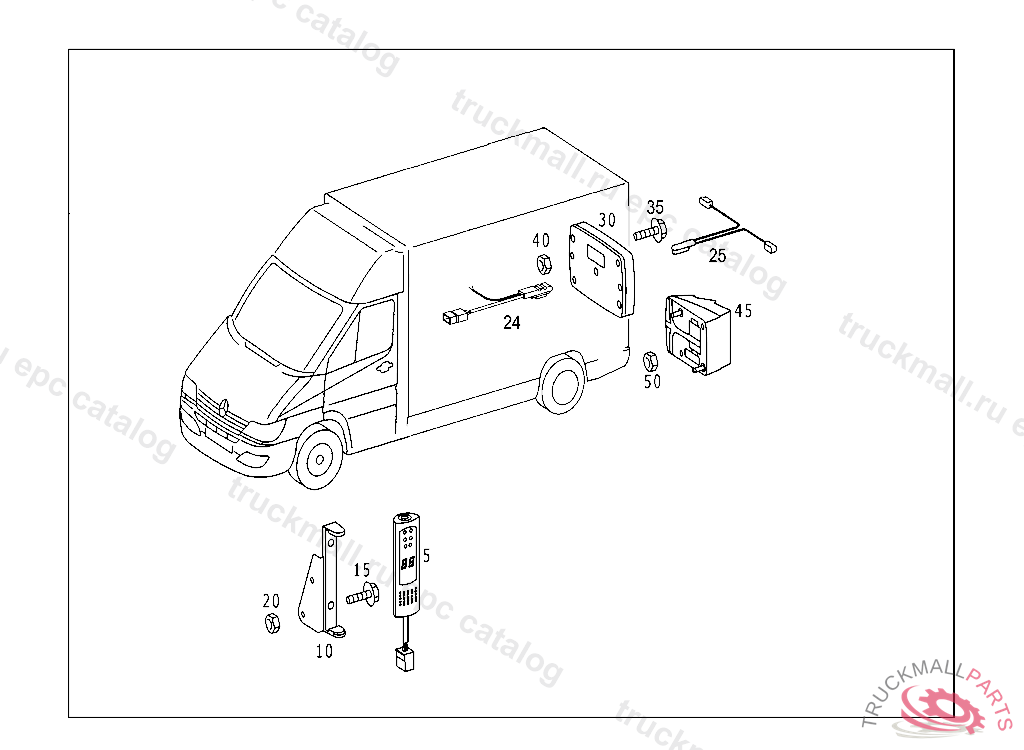

Mercedes A9015400245 - Блок управления
314, 308 CDI, 311 CDI, 313 CDI, 316 CDI 903.613 TO IDENT-NR. R337626
84 TRUNKS AND CASES - 997 BACK-UP AID
Поз.
Артикул
Описание
5
A9015422717
SENDER UNIT
10
A9015401173
BRACKET
15
N000000000117
SCREW VALVE TO BRACKET M4X14
20
N910104004000
NUT-AND-WASHER ASSEMBLY ANTENNA AT BRACKET M4
24
A9015400405
CABLE HARNESS FROM DISPLAY TO CONTROL UNIT
25
A9015400505
WIRING HARNESS. CABLE HARNESS FROM CONTROL UNIT TO SENSOR
30
A9015400245
CONTROL UNIT BACK-UP AID
35
N304017008034
SCREW BRACKET TO CROSS CONNECTION STRUT
40
N910112008000
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
45
A9015420918
SENDER UNIT
50
N910112006003
HEXAGON NUT ELECTRIC CABLE TO ALTERNATOR TERMINAL B-
