Mercedes A0009905304 - Болт М8х75

OM 904 LA 904.956

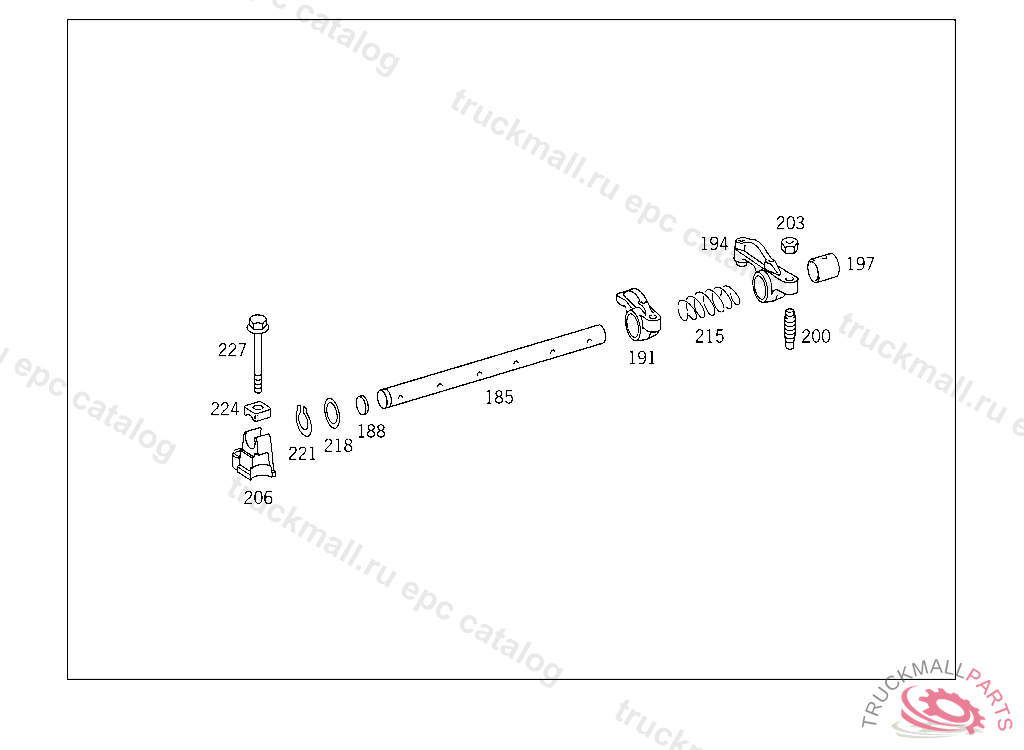

01 ENGINE HOUSING - 075 CYLINDER HEAD,VALVES,GASKET KIT IL. 4

Поз.
Артикул
Описание
185
A9040500231
ROCKER ARM SPINDLE
188
N000470012001
EXPANSION PLUG
191
A9060500833
ROCKER ARM INTAKE
194
A9060500334
ROCKER ARM EXHAUST
197
A9060550150
BUSHING , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE 417215, Replaced By: A9060550450
197
A9060550450
BUSHING
200
A9060550420
SET SCREW , Replaced By: A9060550021
200
A9060550021
BALL SCREW PIN
203
A3269900151
NUT
206
A9060551210
ROCKER SUPPORT REAR
206
A9060550610
ROCKER ARM BRACKET FRONT, Replaced By: A9060551110
206
A9060550710
ROCKER ARM BRACKET REAR, Replaced By: A9060551210
206
A9060551110
ROCKER SUPPORT FRONT
206
A9060550410
ROCKER ARM BRACKET CENTRAL
215
A9069930801
SPRING
218
A9069900140
WASHER
221
N000471022000
LOCK RING22X1.2,TO 001 431 71 14
224
A9060550192
CLAMPING PIECE ROCKER SHAFT TO CYLINDER HEAD
227
N000000002524
HEXAGON HEAD BOLT. SCREW FAN TO WATER PUMP PULLEY M 8X75
227
A0009905304
SCREWTO 001 477 20 01,001 477 21 01
