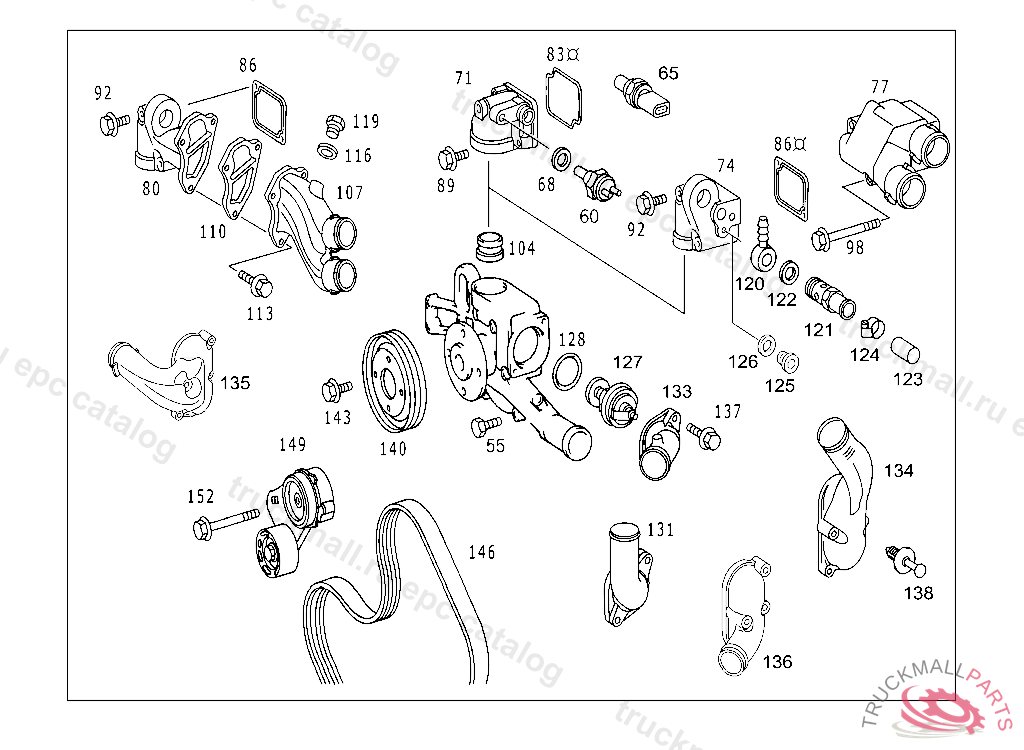

Поз.
Артикул
Описание
55
SCREW FRONT EXHAUST PIPE M 8 X 90,P 275513
55
SCREW AT SHIFT LEVER M 8 X 45,P 234011
65
SENDER UNIT TEMPERATURE SENDER UNIT
65
SENDER UNIT TEMPERATURE GAUGE SENDER UNIT
68
SEALING RING
74
CONNECTOR
86
GASKET PIPE SOCKET TO CYLINDER HEAD
92
HEXAGON HEAD BOLT BRACKET TO DISTRIBUTOR
104
PIPE PIPE SOCKET TO WATER PUMP
104
PIPE PIPE SOCKET TO WATER PUMP
120
BANJO UNION
121
FITTING HEATING FEED
122
SEALING RINGTO A957 490 05 14
123
GROMMET HEATER UNIT TO BRACKET
124
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
125
SCREW PLUG, FILLING CHARGE AIR PRESSURE M20X1.5
126
SEALING RINGTO A957 490 05 14
127
THERMOSTAT ELEMENT
127
THERMOSTAT ELEMENT
128
SEAL RING AT WATER PUMP
128
SEAL RING , Replaced By: A0249972848
131
COVER
133
COVER
134
COVER TWIN THERMOSTAT HOUSING
134
COVER
135
COVER TWIN THERMOSTAT HOUSING,*0254557
136
COVER TWIN THERMOSTAT HOUSING,*0248865
137
HEXALOBULAR BOLT. SCREW SUPPORT TO CYLINDER HEAD
137
HEXAGON HEAD BOLT. SCREW POWER CYLINDER TO BRACKET
137
HEXAGON HEAD BOLT CLAMP AT SUPPORTING RAIL M 8X30
138
RIVET REAR LID PANELLING TO HINGE BRACKET, NO.9C75
140
PULLEY
143
HEXAGON HEAD BOLT. SCREW CLUTCH TO FLYWHEEL M8X16 MM
146
V-BELT1699MM
146
V-BELT1445 MM
146
V-BELT2105 MM
149
BELT TIGHTENER
149
BELT TIGHTENER , NUR GUELTIG BEI UMBAU AUF KEILRIPPENRIEMENTRIEB, ARBEITSANLEITUNG 13/07/60-1 BEACHTEN., Replaced By: A9062001470
149
BELT TIGHTENER , Replaced By: A9062001770
149
BELT TIGHTENER , Replaced By: A9062002070, +001N000912010125
149
BELT TIGHTENER
149
BELT TIGHTENER
152
SCREW BELT TIGHTENER TO CYLINDER CRANKCASE TO 9062001470,1770
152
SCREW BRACKET TO INJECTION PUMP M 10X90
152
BOLT. SCREW OIL FILTER TO CYLINDER CRANKCASE M 10X95
152
SCREW BELT TIGHTENER TO CYLINDER CRANKCASE
