Mercedes A9069970076 - Уплотнительный конус

OM 906 LA 906.999

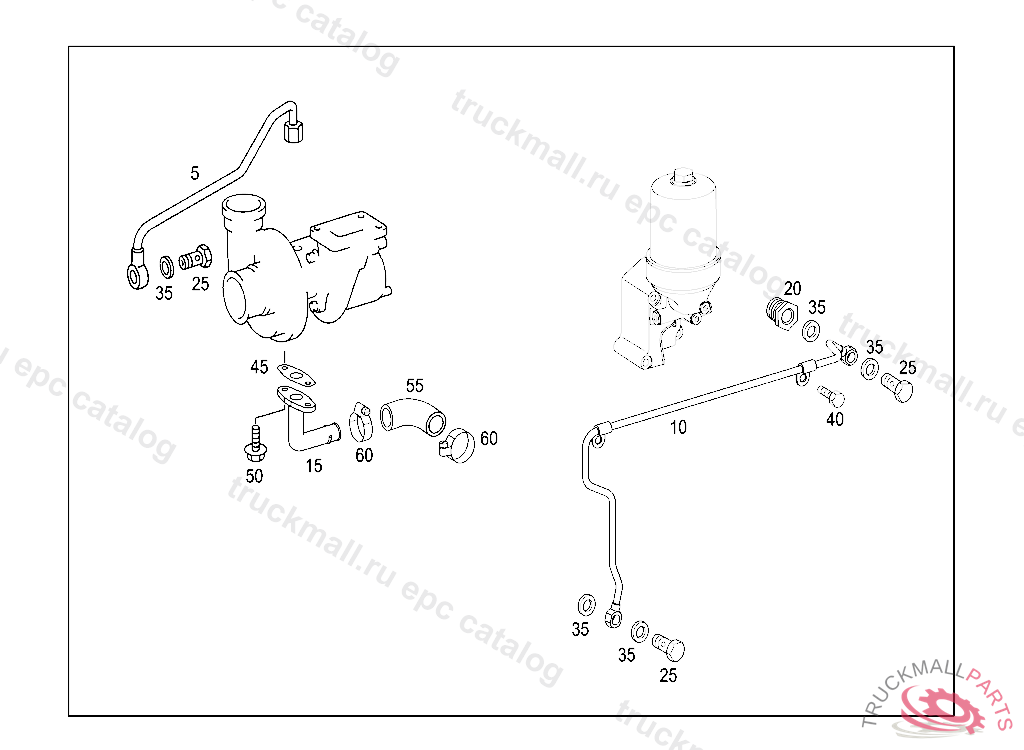

18 ENGINE LUBRICATION - 060 OIL LINES

Поз.
Артикул
Описание
5
A9061800720
OIL LINE OIL DELIVERY LINE TO 906 096 3199/4199/5399/6299
10
A9060100155
PIPE OIL DELIVERY LINE
15
A9061871801
OIL LINE OIL RETURN LINE TO 906 096 41 99
20
A9069970076
SEAL CONE AT CYLINDER CRANKCASE
25
N915036010108
HOLLOW SCREW FUEL LINE TO FEED PUMP
35
N007603014102
SEALING RING. SEAL RING ENGINE BREATHING
35
N000000001069
SEALING RING
40
N910105010009
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
45
A5411870080
GASKET OIL RETURN LINE TO TURBOCHARGER
50
N000000004824
HEXAGON HEAD BOLT OIL RETURN LINE TO EXHAUST GAS TURBOCHARGER M8X25
55
A9069970382
HOSE OIL RETURN LINE TO CYLINDER CRANKCASE
60
N000000000667
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
