Mercedes A9040981817 - КОРПУС

OM 924 LA 924.929

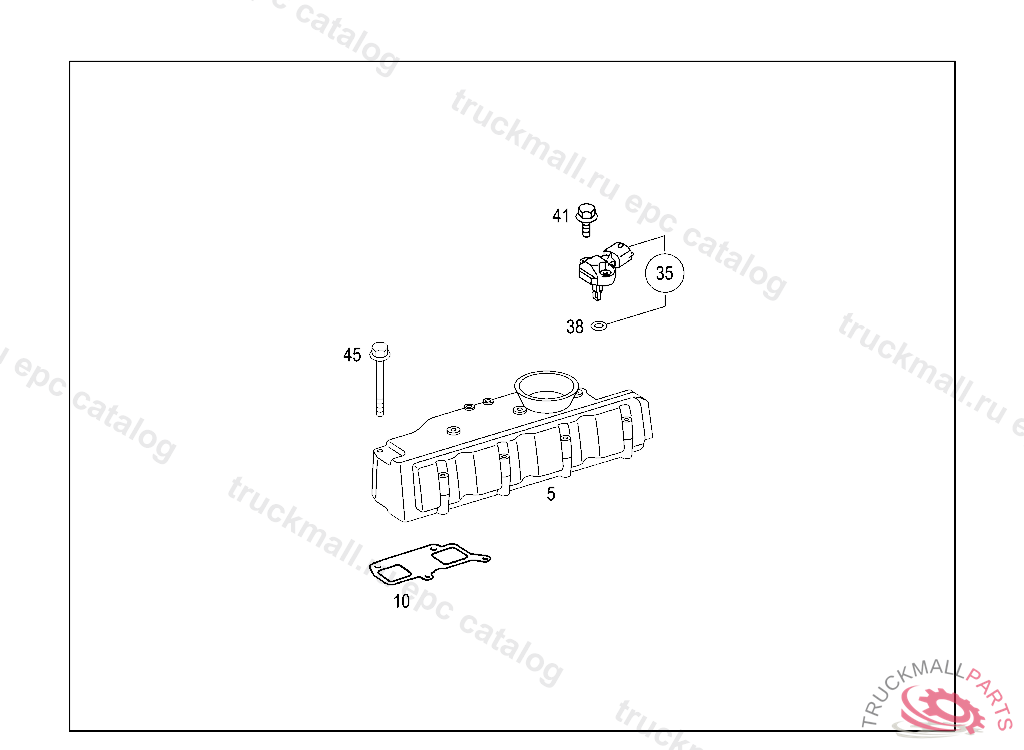

14 INTAKE AND EXHAUST MANIFOLDS - 015 INTAKE MANIFOLD

Поз.
Артикул
Описание
5
A9040981817
HOUSING (CHARGING AIR ELBOW)
10
A9061410180
GASKET CHARGING AIR ELBOW TO CYLINDER HEAD
10
A9061410480
GASKET CHARGING AIR ELBOW TO CYLINDER HEAD
35
A0041537028
SENDER UNIT CHARGE AIR PRESSURE AND CHARGE AIR TEMPERATURE
35
A0041537628
SENDER UNIT , Replaced By: A0041537028
38
A1408320699
RING
41
N000000001117
HEXALOBULAR BOLT. SCREW STAY TO CYLINDER HEAD M 6X23
45
N000000002524
HEXAGON HEAD BOLT. SCREW FAN TO WATER PUMP PULLEY M 8X75
45
A0009905304
SCREWTO 001 477 20 01,001 477 21 01
45
N910105008007
HEXAGON HEAD BOLT. SCREW REFRIGERANT COMPRESSOR TO SUPPORT M8 X 90
