Главная
›
Mercedes
›
ENGINE
›
OM 924 LA
›
924.929
›
13 AIR COMPRESSOR
›

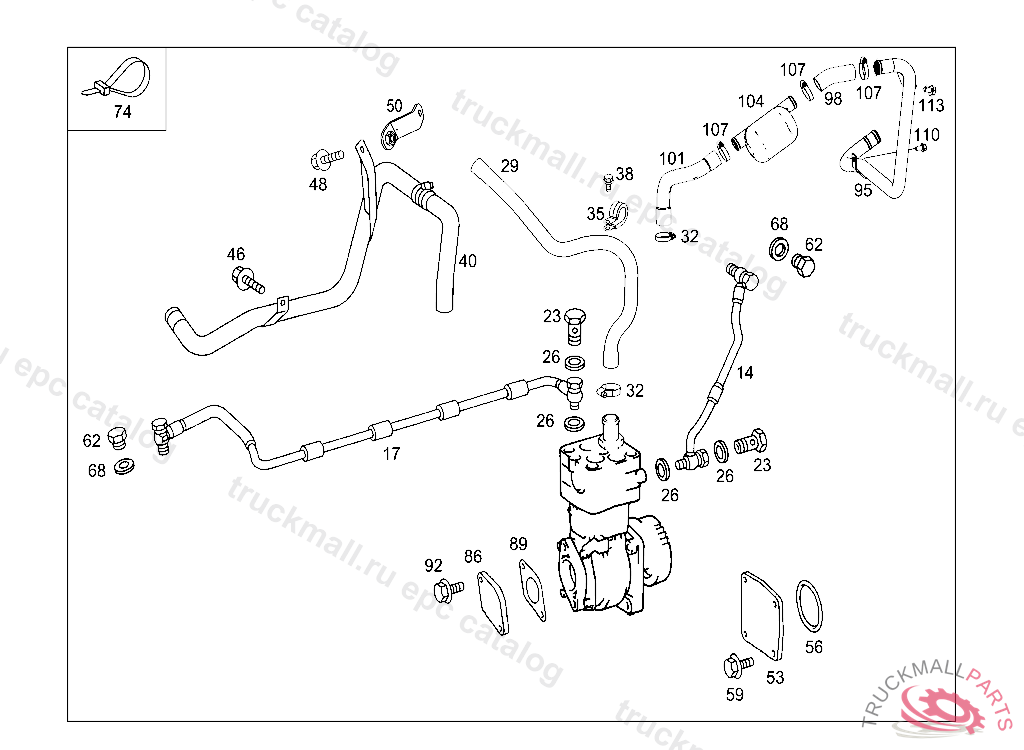

075 AIR COMPRESSOR ATTACHMENT PARTS
Mercedes A9041342201 - Впускной трубопровод
OM 924 LA 924.929
13 AIR COMPRESSOR - 075 AIR COMPRESSOR ATTACHMENT PARTS
Поз.
Артикул
Описание
14
A9062030402
LINE ON CYLINDER HEAD AND AIR COMPRESSOR
17
A9042030102
LINE ON AIR COMPRESSOR AND WATER PUMP
23
N000000004898
SCREW
23
N915036010108
HOLLOW SCREW FUEL LINE TO FEED PUMP
26
N000000001069
SEALING RING
32
A0069974290
CLAMP HOSE FASTENING 28-35 MM,V 207570
95
A9041303857
SUCTION LINE
98
A9041340505
PIPE ,535552
101
A9041342201
SUCTION LINE. INTAKE PIPE
104
A9041340007
MUFFLER FROM AIR INTAKE PIPE TO AIR COMPRESSOR
107
N916026028000
CLAMP , Replaced By: A0069974290
110
N910105008008
HEXAGON HEAD BOLT. SCREW CLUTCH TO FLYWHEEL M8X16 MM
113
N910105010040
SCREW BRACKET TO DISC WHEEL M 10X16,D 315832
