Mercedes N910105008005 - БОЛТ М8

OM 924 LA 924.929

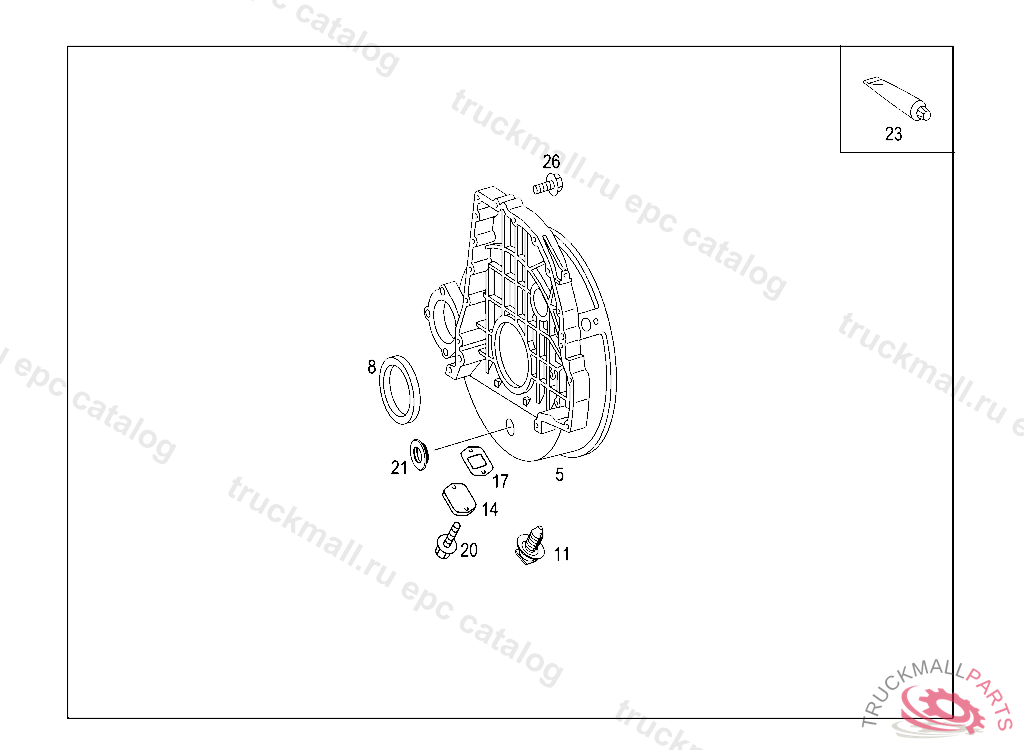

01 ENGINE HOUSING - 045 TIMING CASE AND FLYWHEEL HOUSING

Поз.
Артикул
Описание
5
A9040100233
TIMING CASESAE 3
5
A9040100733
TIMING CASESAE 3
5
A9040101333
TIMING CASESAE 3
8
A0259975047
SEAL RING CRANKSHAFT SEALING,REAR,708528 IN ITS PLACE,YOU MAY ALSO USE MERCEDES-BENZ PART NO.: A 013 997 14 47 + A 403 032 03 09 I.D., 115MM
11
A0009950492
CABLE BAND HOLDER WIRING HARNESS FASTENING
14
A4030150109
COVER TIMING CASE
14
A9040150030
EXPANSION PLUG CRANK OPENING
20
N910105008005
HEXAGON HEAD BOLT BRACKET TO BRACKET M8X25
21
A0009988750
PLUG
23
A0039899820
SEALANT TIMING CASE TO CYLINDER CRANKCASE
26
N910105010016
HEXAGON HEAD BOLT. SCREW CLUTCH SLAVE CYLINDER TO BELL HOUSING
26
N910105010003
HEXAGON HEAD BOLT AUTOMATIC TRANSMISSION AT ENGINE M10X60
