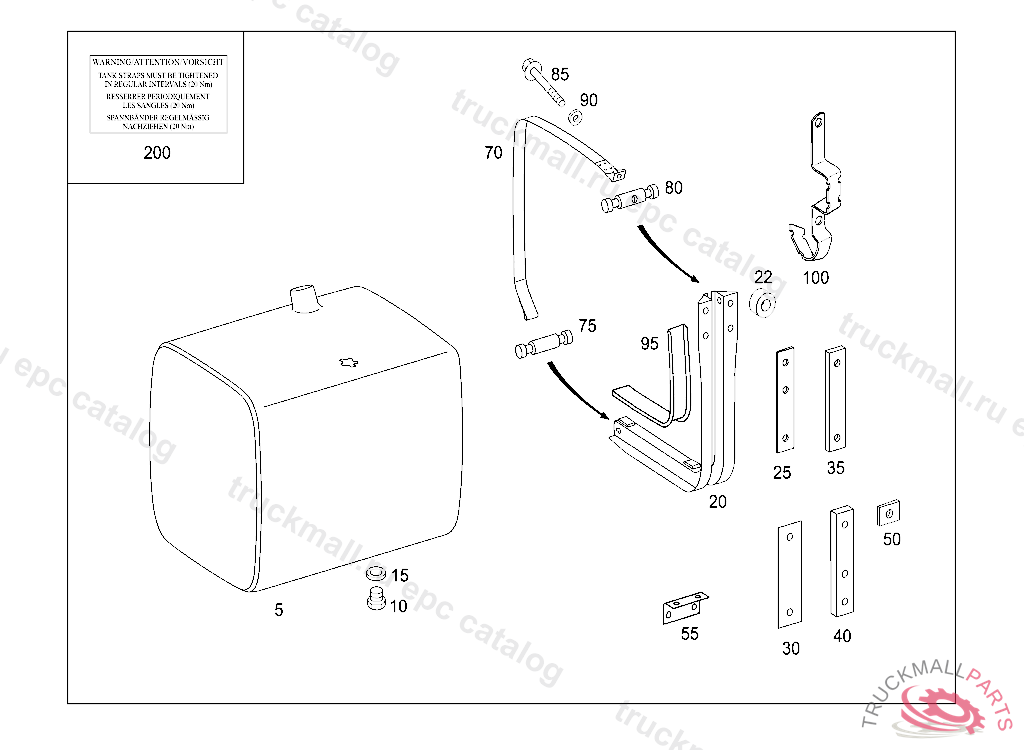

Поз.
Артикул
Описание
5
FUEL TANK TO BE MOUNTED ON THE LEFT 400 L
5
FUEL TANK RIGHT 400L
5
FUEL TANK TO BE MOUNTED ON THE RIGHT 400L
10
SCREW PLUG FUEL TANK
15
SEAL RING CLUTCH BOOSTER
20
SUPPORT FUEL TANK TO FRAME
20
SUPPORT FUEL TANK TO FRAME
22
BUSHING AT SIDE MEMBER 21MM, TO BE ADAPTED DURING ASSEMBLY
25
SHIM MOUNTING PARTS
25
SHIM SUPPORT TO FRAME 6MM
25
SHIM MOUNTING PARTS 7MM
30
SHIM MOUNTING PARTS 10 MM
35
SHIM MOUNTING PARTS 20MM
35
SHIM MOUNTING PARTS 8 MM
35
SHIM MOUNTING PARTS 30MM
35
SHIM. BASE FUEL TANK TO FRAME 40MM
40
SHIM MOUNTING PARTS 25MM
50
PAD BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
55
BRACKET MOUNTING PARTS
70
STRAP FUEL TANK TO CONSOLE
75
PIN STRAP TO SUPPORT 16X80 MM
80
PIN STRAP TO SUPPORT 25X80 MM
85
HEXAGON HEAD BOLT. SCREW RUBBER BUFFER TO SUPPORT M 12X90
85
HEXAGON HEAD BOLT. SCREW RUBBER BUFFER TO SUPPORT M 12X90
90
WASHER
95
PAD FUEL TANK TO SUPPORT, ORDER BY THE METER
100
BRACKET LINE MOUNTING
200
STICKERWARNING
